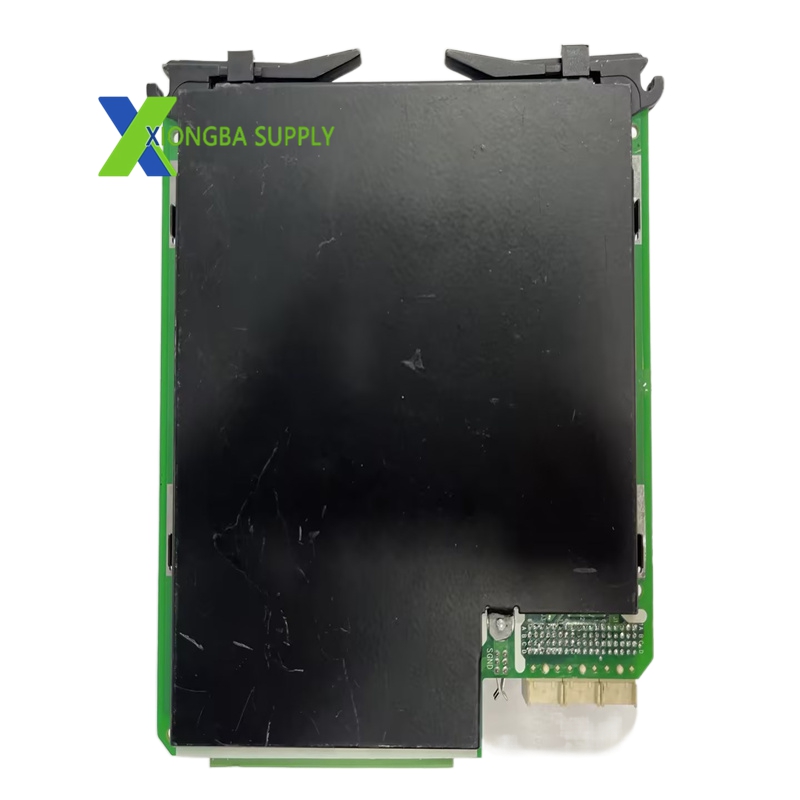

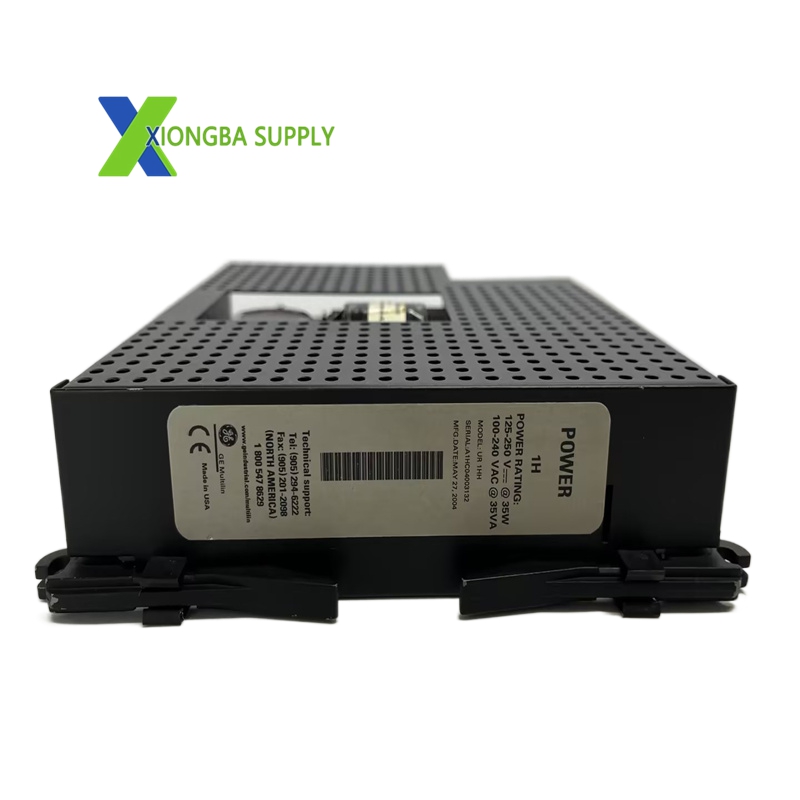

GE Fanuc UR1HH - Universal Relay Module with 1 Pole and High Hold Current Rating

GE Fanuc UR1HH – Universal Relay Module with 1 Pole and High Hold Current Rating

In stock

Product Introduction:
The UR1HH is a universal relay module designed for GE Fanuc PLC and PAC systems. The “UR” designation stands for Universal Relay, indicating it is a general-purpose relay output module compatible with multiple GE Fanuc platforms including Series 90-70, Series 90-30, Series 90-20, and Series 600 systems. The “1” indicates a single-pole (form A) relay configuration. The “HH” suffix stands for High Hold Current, meaning this relay is designed to maintain its contact closure even under high inrush currents and vibration, making it ideal for demanding industrial loads. This module provides galvanically isolated dry contact outputs that can switch AC or DC loads for controlling motors, valves, heaters, and indicator lamps.

Technical Specifications:
Board Type: Universal Relay Output Module (UR)
Pole Configuration: 1 Pole (Form A – Normally Open)
Current Rating: 10 Amps continuous at 250V AC (High Hold rating)
Voltage Rating: 250V AC, 125V DC, 30V DC
Contact Type: Gold-plated silver alloy contacts for low resistance and long life
Number of Channels: 8 or 16 relays per module (depending on variant)
Isolation: 500V RMS channel-to-channel and channel-to-ground isolation
Response Time: 10 milliseconds (energize), 5 milliseconds (de-energize)
Mechanical Life: 10 million operations minimum
Electrical Life: 500,000 operations at rated load (AC-1 category)
Coil Voltage: 24V DC, 48V DC, 120V DC, 240V AC (configurable via jumper)
LED Indicators: Per-channel green LED for coil energized status, red LED for contact closed status
Mounting: Standard Eurocard (3U height)
Operating Temperature: 0 to 60 degrees Celsius
