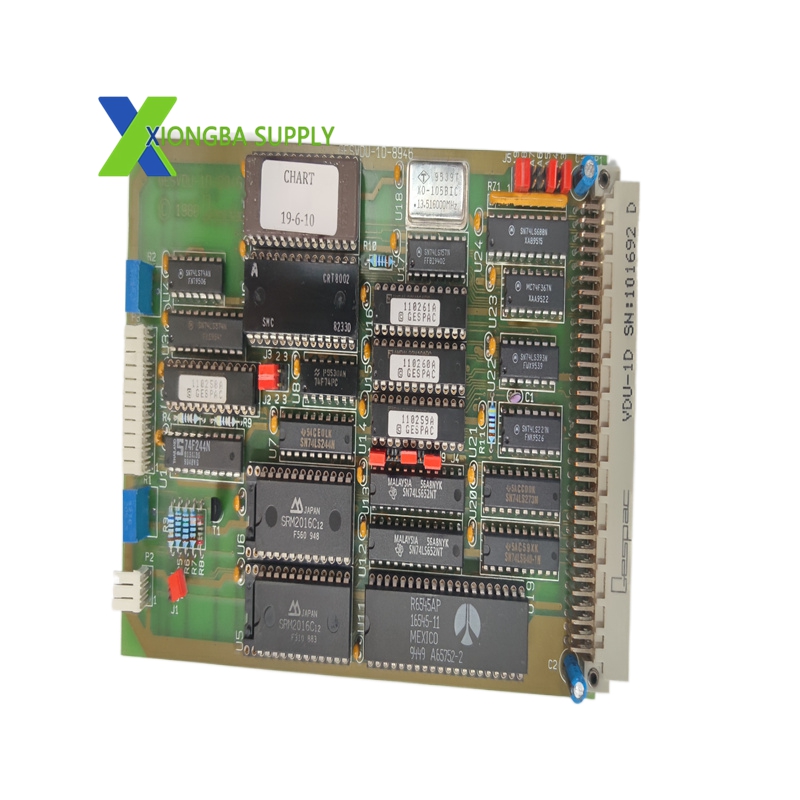

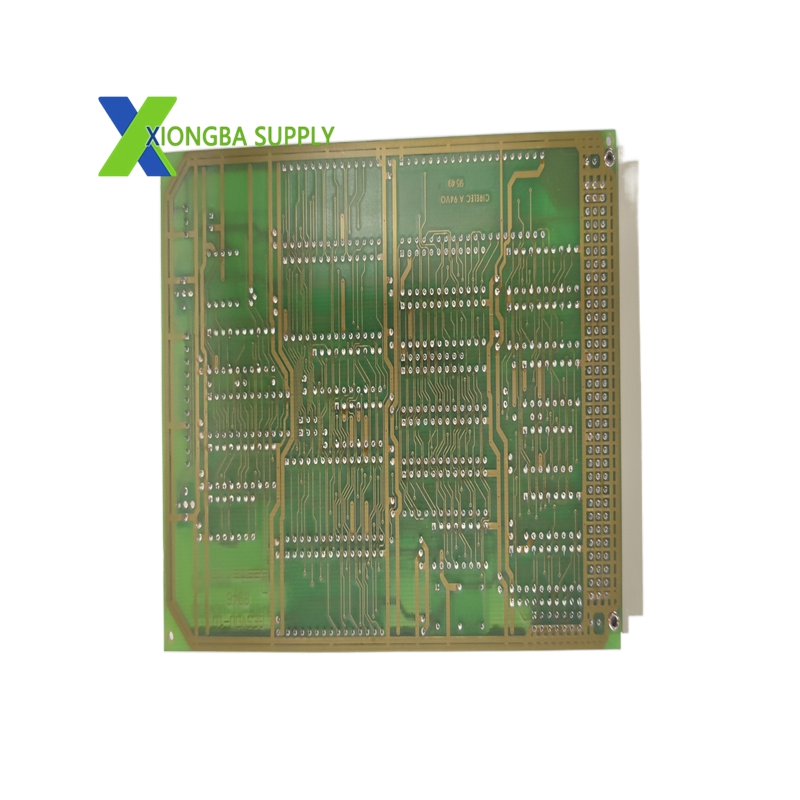

GE GESVDU-1D-8946 – Vibration Monitoring Module (GE)
In stock
Product Introduction
The GESVDU-1D-8946 is a high-performance vibration monitoring module manufactured by General Electric (GE), designed for real-time monitoring and analysis of vibration in rotating machinery such as turbines, generators, motors, pumps, and fans. It provides accurate measurement of vibration amplitude, frequency, and phase, enabling early detection of mechanical faults (e.g., unbalance, misalignment, bearing wear) and preventing catastrophic equipment failure. With advanced signal processing and diagnostic capabilities, it ensures reliable and safe operation of critical industrial equipment.
Technical Specifications
- Manufacturer: General Electric (GE)
- Model: GESVDU-1D-8946
- Measurement Channels: 4 vibration input channels (IEPE accelerometers, velocity transducers, displacement probes)
- Measurement Ranges:
- Acceleration: 0–10 g (peak)
- Velocity: 0–100 mm/s (RMS)
- Displacement: 0–1000 μm (peak-peak)
- Frequency Range: 0.5 Hz–10 kHz
- Resolution: 24-bit ADC
- Communication Ports: 1 × Ethernet (10/100 Mbps), 1 × RS-485 (Modbus RTU)
- Supported Protocols: Modbus TCP/IP, Modbus RTU, GE proprietary protocol
- Power Supply: 24 VDC (±10%)
- Power Consumption: Max 6 W
- Dimensions (L×W×H): 150 mm × 100 mm × 40 mm
- Weight: 0.6 kg
- Operating Temperature: -20°C to +65°C
- Storage Temperature: -40°C to +80°C
- Relative Humidity: 5%–95% (non-condensing)
- Certifications: CE, UL, CSA, ISO 10816
Key Features
-
Multi-Channel Vibration Monitoring
- 4 independent vibration input channels support simultaneous monitoring of multiple vibration points on rotating machinery.
- Compatible with IEPE accelerometers, velocity transducers, and displacement probes for diverse vibration measurement needs.
-
High-Precision Measurement & Analysis
- 24-bit ADC provides high-resolution vibration data with accurate amplitude, frequency, and phase measurements.
- Advanced signal processing algorithms (FFT, spectral analysis) enable detailed vibration analysis and fault diagnosis.
-
Real-Time Fault Detection & Alarming
- Configurable alarm thresholds for vibration amplitude, velocity, and displacement.
- Early detection of common mechanical faults (unbalance, misalignment, bearing wear, looseness) to prevent equipment failure.
-
Flexible Communication & Integration
- Ethernet and RS-485 ports support Modbus TCP/IP and Modbus RTU protocols for seamless integration with SCADA, DCS, and condition monitoring systems.
- Supports data logging and remote monitoring for predictive maintenance.
-
Rugged & Industrial-Grade Design
- Heavy-duty metal housing and industrial-grade components withstand harsh environmental conditions (vibration, temperature, humidity).
- Wide operating temperature range (-20°C to +65°C) ensures reliable operation in extreme industrial climates.
Application Scenarios
- Power Generation
- Gas/steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear power plants.
- Vibration monitoring for turbine bearings, shafts, and rotors.
- Oil & Gas
- Compressors, pumps, turbines, and rotating equipment in refineries, pipelines, and offshore platforms.
- Manufacturing
- Motors, fans, blowers, and production machinery in automotive, steel, and pulp and paper plants.
- Mining & Metals
- Crushers, conveyors, and rotating equipment in mining and metal processing facilities.
- Water & Wastewater
- Pumps, blowers, and mixers in water treatment plants and wastewater facilities.
