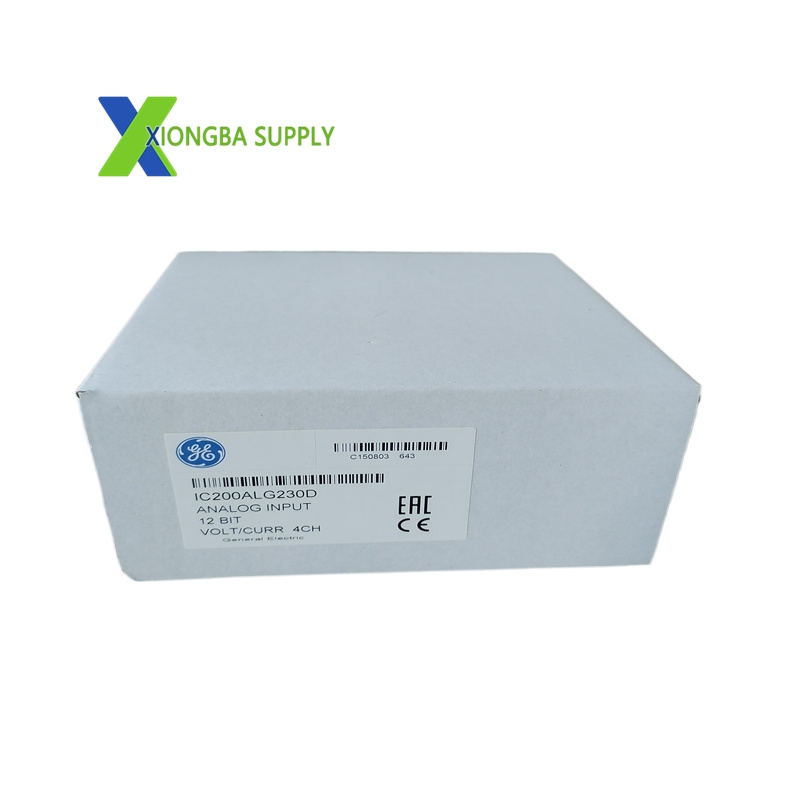

GE IC200ALG230D VersaMax 4-Channel Analog Input Module
In stock
Product Introduction
The IC200ALG230D is a 4-channel analog input module for Emerson’s VersaMax I/O system (formerly GE Fanuc). It acquires 4–20 mA current or ±10 VDC voltage signals from field sensors, converting them to digital data for PLC processing.
Technical Specifications
- Manufacturer: Emerson (formerly GE Fanuc)
- Model: IC200ALG230D
- Series: VersaMax I/O System
- Input Channels: 4 single-ended inputs
- Signal Types: 4–20 mA current, ±10 VDC voltage (configurable)
- Resolution: 12 bits
- Update Rate: 0.4 ms
- Input Filter: 5.0 ms response
- Power Supply: 5 VDC (from VersaMax backplane)
- Operating Temperature: -25°C to +60°C
- Dimensions: 110 mm × 100 mm × 45 mm
- Weight: 0.5 lbs (0.23 kg)
Key Features
- 4-Channel Configurable Inputs: Jumper-selectable 4–20 mA or ±10 VDC for flexible sensor compatibility.
- 12-Bit Resolution: High accuracy for precise process variable measurement.
- Fast Update Rate: 0.4 ms for real-time data acquisition.
- Backplane-Powered: No external power supply required—simplifies wiring.
- LED Diagnostics: Power and status LEDs for quick module health verification.
Application Scenarios
- Industrial Automation: Flow, pressure, temperature, and level sensor signal acquisition in manufacturing plants.
- Process Control: Food/beverage, pharmaceutical, and chemical plant analog data monitoring.
- HVAC Systems: Building automation temperature, humidity, and pressure sensor input.
