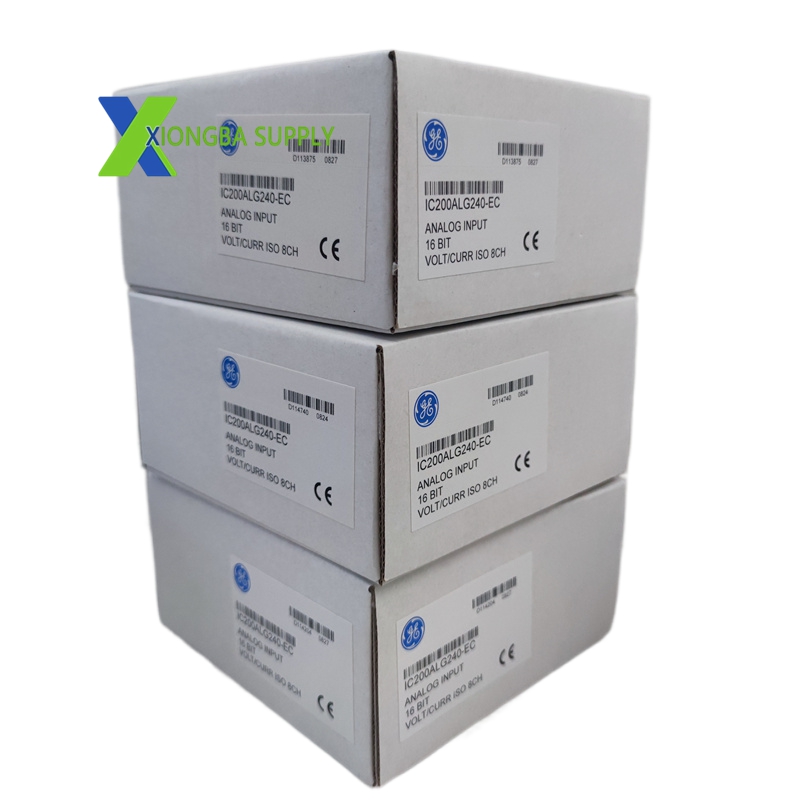

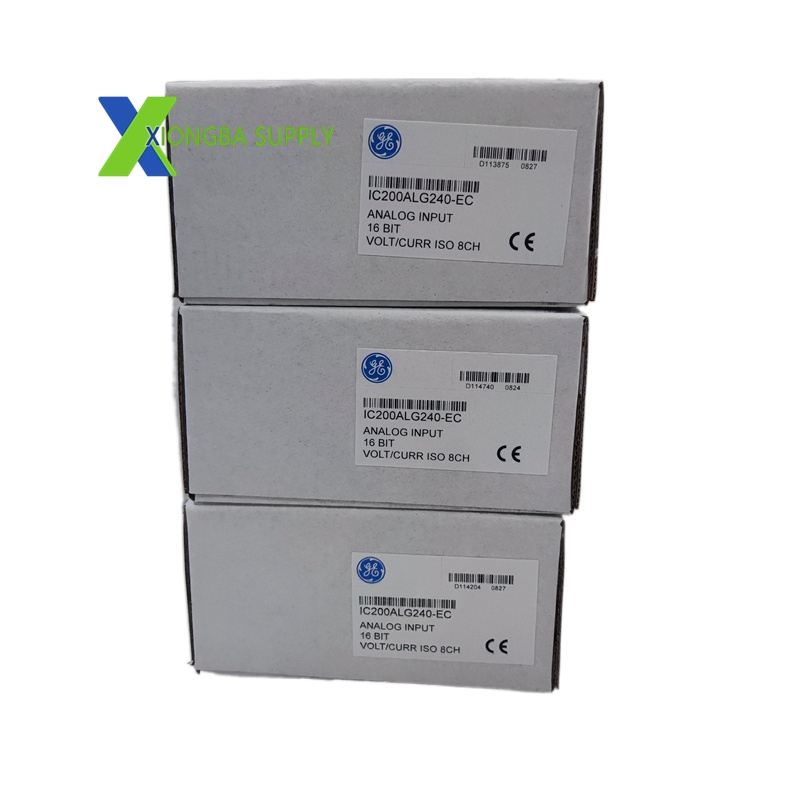

GE IC200ALG240 – VersaMax 16-Bit Isolated Analog Input Module (8 Channels)

In stock

Product Introduction:

The IC200ALG240, manufactured by General Electric (GE) / GE Fanuc Emerson, is a high‑performance analog input module in the VersaMax PLC series. It converts continuous analog signals (temperature, pressure, flow, level) from field sensors into high‑resolution digital data for PLC processing. With 8 galvanically isolated channels, 16‑bit precision, and strong noise immunity, it delivers accurate and reliable signal acquisition for demanding industrial environments. It supports both voltage and current input types, features software configurability, and offers comprehensive diagnostics, making it a versatile and robust solution for analog signal monitoring.

Technical Specifications

Manufacturer: General Electric (GE) / GE Fanuc Emerson
Model: IC200ALG240
Series: VersaMax PLC System
Channels: 8 isolated single‑ended channels (channel‑to‑channel isolation)
Resolution: 16‑bit (Voltage: 381 µV nominal; Current: 381 nA nominal)
Input Ranges:
- Voltage: ±10 VDC
- Current: 4–20 mA
Isolation:
- Channel‑to‑Channel: 1500 VAC (1 minute); 250 VAC continuous
- Channel‑to‑Logic: 250 VAC continuous
Update Rate:
- 20 ms max. (50 Hz filter)
- 16.7 ms max. (60 Hz filter)
Input Filter: 50/60 Hz notch filter for noise reduction
Power Supply:
- Backplane: 5 VDC (15 mA max.); 3.3 VDC (120 mA max.)
- External: 19.5–30 VDC (100 mA max. plus load currents)
Dimensions (W×H×D): 110 mm × 66.8 mm × 50 mm (4.3 in × 2.63 in × 1.956 in)
Weight: 0.20 kg (0.44 lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Calibration: Factory calibrated (no user adjustment required)

Key Features

16‑Bit High Precision: Delivers accurate and stable signal conversion for high‑accuracy industrial applications.
8 Isolated Channels: Galvanic isolation eliminates crosstalk and protects against electrical noise, ground loops, and voltage spikes.
Dual Input Modes: Software‑selectable voltage (±10 VDC) or current (4–20 mA) inputs for maximum flexibility.
Open‑Wire Detection: Identifies broken wires or sensor faults in 4–20 mA mode, enhancing system reliability.
Comprehensive Diagnostics:
- OK LED: Indicates module status (normal/fault).
- FLD PWR LED: Confirms presence of logic and field power.
- Detects over/under‑range, high/low limits, and loss of field power.
Hot‑Swappable: Enables module replacement without system shutdown, minimizing maintenance downtime.
Compact & Rugged: Standard VersaMax form factor for easy integration; ruggedized components withstand harsh industrial conditions.
Low Power Consumption: Reduces energy costs and heat generation in control cabinets.
