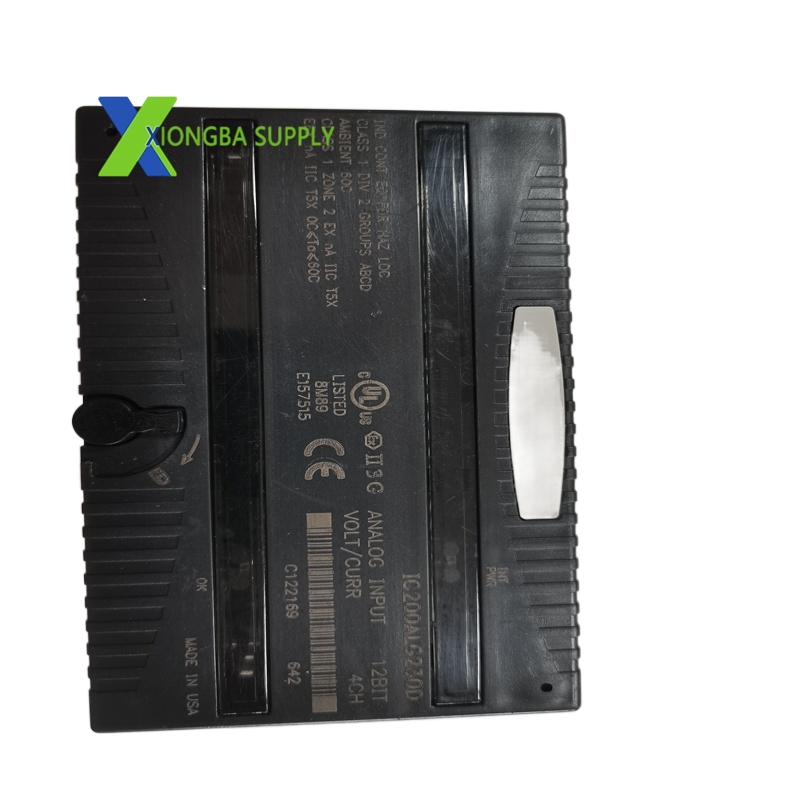

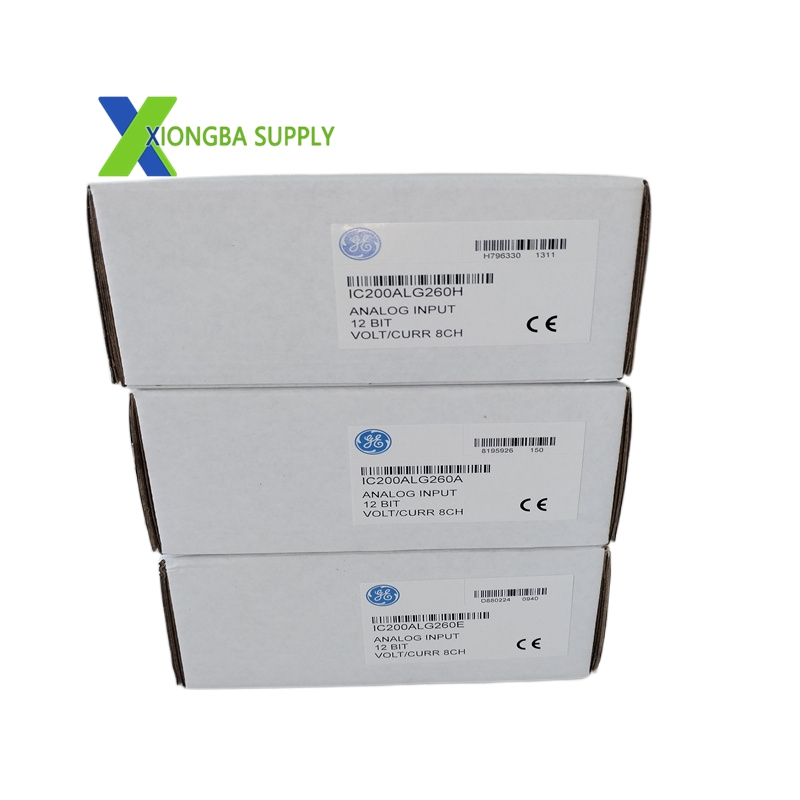

GE IC200ALG260 – VersaMax 12-Bit Voltage/Current Analog Input Module (8 Channels)

In stock

Product Introduction:

The IC200ALG260, developed by GE Fanuc (now Emerson Automation), is a cost-effective and compact analog input module in the VersaMax PLC series. It is designed to convert analog signals from field sensors (such as temperature, pressure, and flow transmitters) into 12-bit digital data for PLC processing. With 8 single-ended channels configurable for either voltage or current inputs, it delivers reliable performance for general-purpose industrial data acquisition in moderate-accuracy applications.

Technical Specifications

Manufacturer: General Electric (GE Fanuc, now Emerson Automation)
Model: IC200ALG260
Series: VersaMax PLC System
Channels: 8 single-ended channels (common ground)
Resolution: 12-bit
Input Ranges:
- Voltage: ±10VDC (bipolar, default), 0–10VDC (unipolar, jumper-selectable)
- Current: 4–20mA (jumper-selectable)
Input Impedance: 126kΩ (voltage mode, max), 200Ω (current mode)
Update Rate: 0.4ms per channel
Filter Response Time: 5ms
Isolation: 250VAC continuous; 1500VAC for 1 minute (channel-to-logic)
Power Consumption: 130mA max @ 5VDC (backplane)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.26kg (0.56 lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Accuracy: ±0.3% typical of full scale (25°C), ±1% maximum of full scale (0–60°C)
Certifications: CE, UL, RoHS compliant

Key Features

Dual Input Flexibility: Configurable via on-board jumpers for voltage (±10V/0–10V) or current (4–20mA) signals, eliminating the need for separate modules.
Fast Real-Time Sampling: 0.4ms per-channel update rate ensures rapid response to dynamic process changes.
Robust Isolation & Noise Rejection: 250VAC continuous isolation protects against electrical noise and high-voltage transients; common-mode rejection ratio (CMRR) >60dB (50/60Hz) ensures stable operation in harsh EMI environments.
Comprehensive Diagnostics: Detects under/over-range, open-wire, loss of internal power, non-volatile memory faults, and high/low alarms; reports issues to the PLC and indicates status via LEDs.
LED Status Indicators:
- INT PWR: Lights when internal field power is active.
- OK: Lights when backplane power is supplied.
Hot-Swappable Design: Allows module replacement during system operation without shutting down the PLC, minimizing maintenance downtime.
Compact & Space-Saving: Standard VersaMax form factor integrates easily into small control cabinets, saving panel space.
Fail-Safe Operation: Analog input data can be configured to hold the last valid state during a fault, preventing unexpected system behavior.
