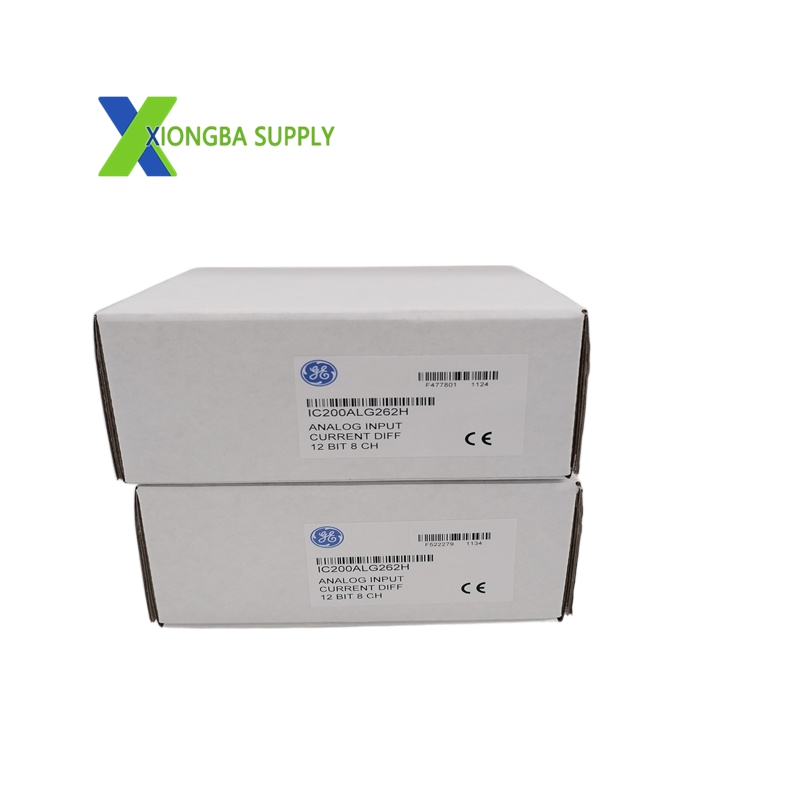

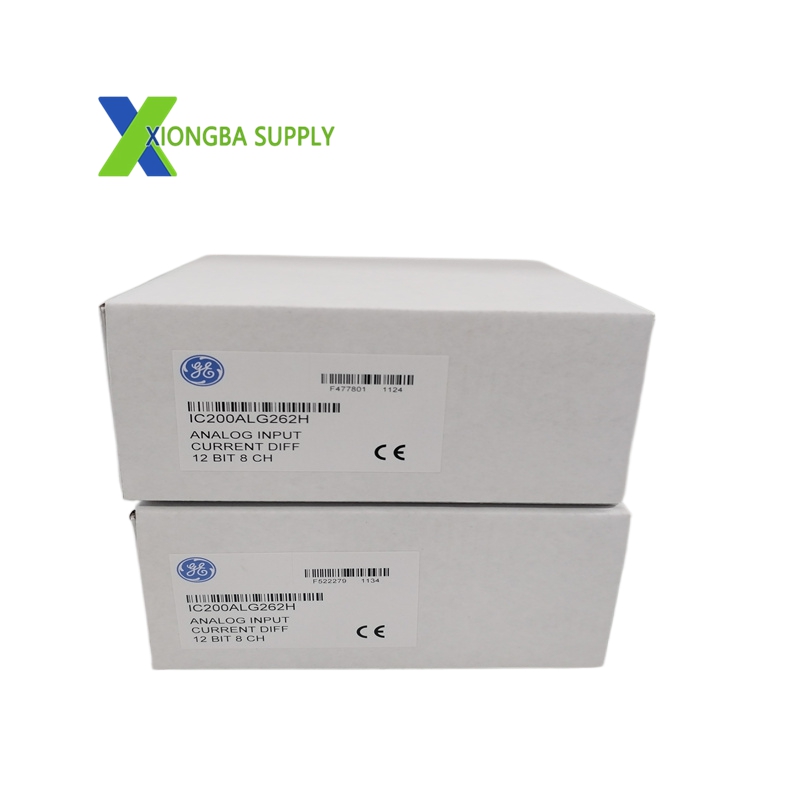

GE IC200ALG262 – VersaMax 15‑Bit Differential Current Input Module (8 Channels)

In stock

Product Introduction:

The IC200ALG262 is a high‑sensitivity analog input module from the GE VersaMax I/O series (now Emerson Automation). It is designed for precise acquisition of low‑level differential current signals in electrically noisy industrial environments. The module converts 0–20mA or 4–20mA analog signals from field sensors into 15‑bit digital data for the PLC, delivering high accuracy and strong noise rejection for demanding process control applications.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200ALG262
Series: VersaMax PLC System
Channels: 8 differential current channels (single group)
Resolution: 15‑bit ADC (Analog‑to‑Digital Converter)
Input Ranges: 0–20mA, 4–20mA (jumper‑selectable on carrier terminal)
Digital Resolution: 0.625μA (0–20mA); 0.5μA (4–20mA)
Update Rate: 7.5ms per module
Input Impedance: 200Ω
Isolation: 250VAC continuous; 1500VAC for 1 minute (channel‑to‑logic)
Power Supply: Powered via PLC backplane (no external power required for module operation; field sensors may need external power)
Backplane Current: 150mA @ 5VDC
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.11kg (0.25 lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Protection Class: IP20

Key Features

Differential Input Design: Rejects common‑mode electrical noise and interference, ensuring accurate measurement of low‑level current signals in harsh industrial environments.
15‑Bit High Precision: Provides exceptional accuracy with ultra‑fine digital resolution, ideal for precision process monitoring and control.
Jumper‑Configurable Ranges: Supports both 0–20mA and 4–20mA standard current loops via simple jumper settings on the carrier terminal.
Open‑Wire & Fault Detection: Detects open‑circuit faults on each channel and loss of field power, but only in 4–20mA mode, enabling proactive maintenance and system diagnostics.
LED Status Indicators: Equipped with INT PWR and OK LEDs for real‑time monitoring of power status and module health, simplifying troubleshooting.
Compact & DIN‑Rail Mountable: Standard VersaMax form factor allows easy integration into existing PLC systems and installation on DIN rails in control cabinets.
Hot‑Swappable: Enables replacement without shutting down the entire system, minimizing downtime during maintenance.
