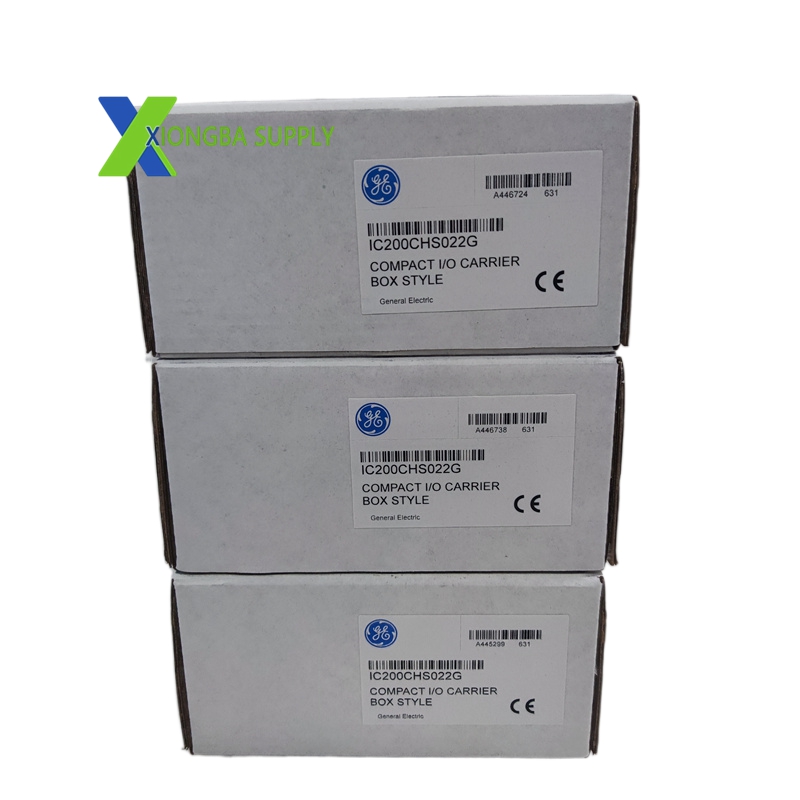

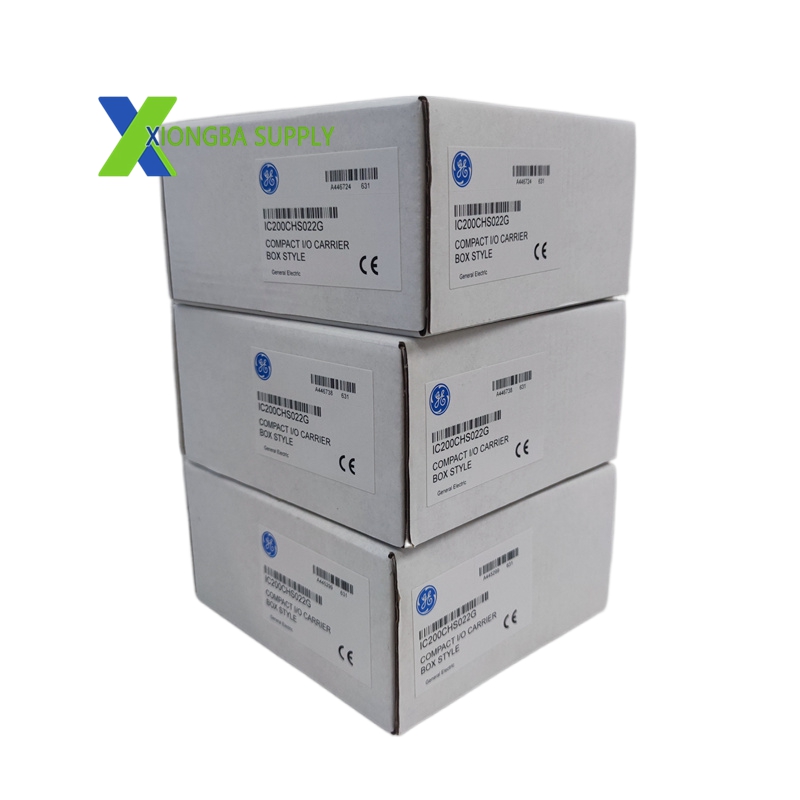

GE IC200CHS022 – VersaMax Compact Box-Style I/O Carrier Module

In stock

Product Introduction: The IC200CHS022, designed by GE Fanuc (now Emerson Automation), is a compact I/O carrier in the VersaMax PLC series. It serves as a mechanical and electrical base, providing mounting, backplane communication, and field wiring connections for one VersaMax I/O module. It integrates 36 IEC box-style screw terminals for reliable field device connections, acting as a critical interface between the PLC system and external sensors/actuators in industrial automation.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200CHS022
Series: VersaMax PLC System
Module Type: Compact Box-Style I/O Carrier
Terminals: 36 IEC box-style screw terminals (A1–A18, B1–B18)
I/O Capacity: 32 I/O points + 4 common power connections
Voltage Rating: 0–264 VAC
Current Rating: 2A per I/O point; 8A per power-ground pair
Wire Gauge: AWG #14–#22 (single solid/stranded copper); AWG #18 (two wires per terminal)
Dimensions (W×H×D): 66.8mm × 70mm × 163.5mm
Weight: 0.24kg (0.53lbs)
Mounting: DIN rail (TS-35/7.5 or TS-35/15), vertical/horizontal
Spacing Requirement: 2” vertical, 1” horizontal for heat dissipation
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA
Protection Class: IP20

Key Features

Compact & Space-Saving Design: Standardized VersaMax form factor optimizes cabinet space for small-scale control systems.
Integrated 36-Terminal Block: Combines 32 I/O points and 4 power connections, simplifying field wiring and reducing external terminals.
Robust Screw-Terminal Connections: IEC box-style terminals ensure secure, vibration-resistant links for solid/stranded copper wires.
Backplane Communication & Power Distribution: Built-in male-female connectors enable seamless data/power exchange between the carrier and I/O module.
Flexible DIN Rail Mounting: Supports vertical/horizontal installation with standard DIN rails, adapting to diverse cabinet layouts.
Keying Dials & Latch Mechanism: Alphabetic/numeric keying dials prevent module mismating; latch hole secures I/O modules to the carrier.
Wide Electrical Compatibility: Accommodates 0–264 VAC and 2A per point, supporting diverse industrial I/O devices.
