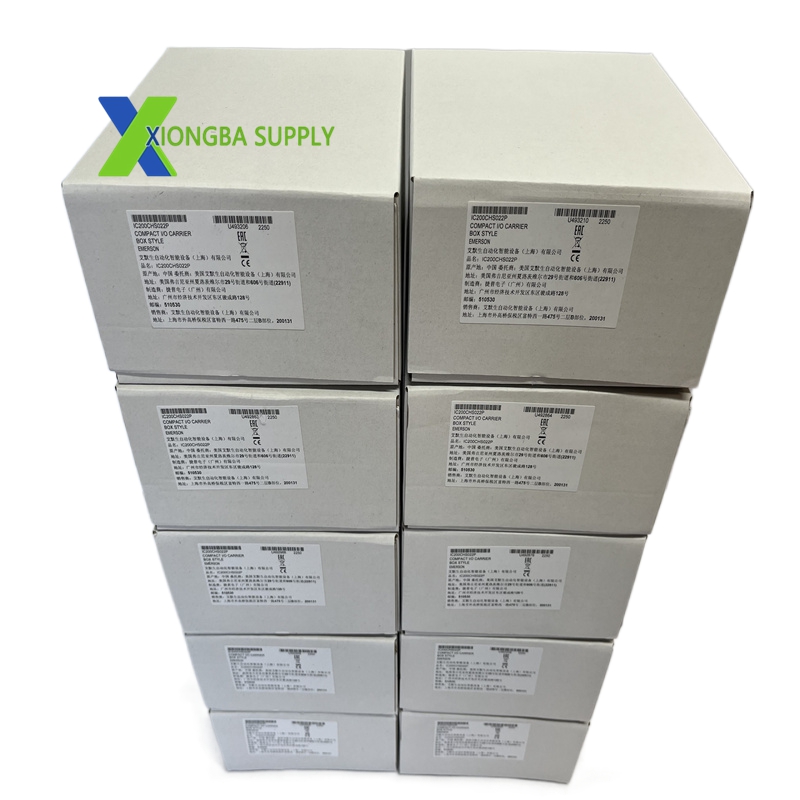

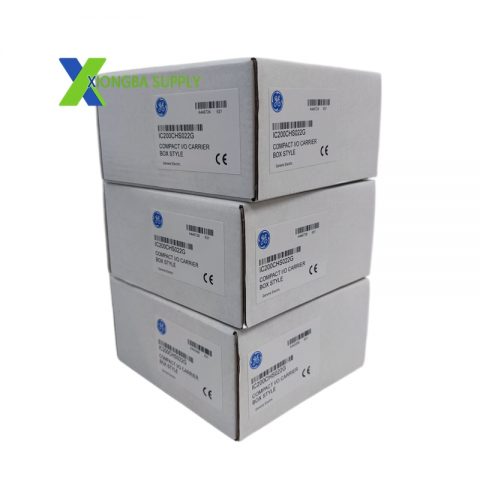

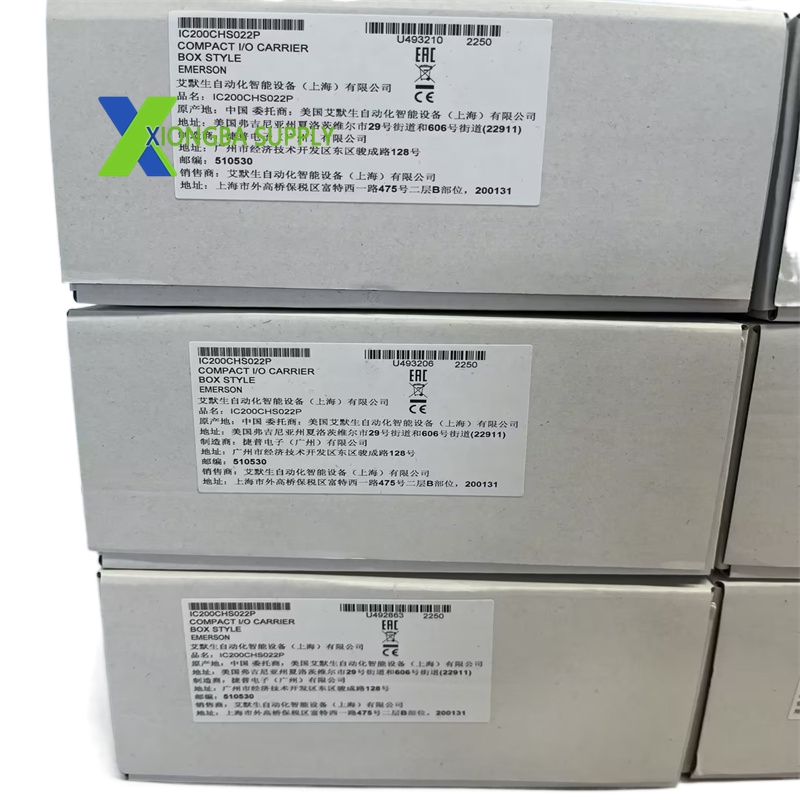

GE IC200CHS022J – VersaMax Compact Box-Style I/O Carrier Module

In stock

Product Introduction: The IC200CHS022J, designed by GE Intelligent Platforms (now Emerson Automation), is a core wiring and mounting base in the VersaMax PLC system. Serving as a compact I/O carrier, it provides reliable terminal connections, mechanical support, and backplane communication interface for one VersaMax I/O module (digital/analog). It simplifies field wiring, enables hot-swap maintenance, and ensures stable operation of I/O modules in industrial control systems.

Technical Specifications

Manufacturer: GE Intelligent Platforms (Emerson Automation)
Model: IC200CHS022J (Revision J)
Series: VersaMax PLC System
Module Type: Compact Box-Style I/O Carrier (Terminal Base)
Terminals: 36 screw-type IEC box terminals (labeled A1–A18, B1–B18)
Supported I/O Points: Up to 32 I/O points + 4 common power connections
Voltage Rating: 0–264 VAC (continuous); 300 VAC (transient)
Current Rating: 2A per terminal; 8A per power/ground segment
Wire Size: Solid/stranded copper, AWG #14–#22 (single wire); AWG #18 (two wires per terminal)
Backplane Interface: Male-female connector (tool-free installation)
Mounting: DIN rail (7.5mm × 35mm) or panel mounting
Dimensions (W×H×D): 163mm × 74mm × 71mm (6.4in × 2.9in × 2.8in)
Weight: 0.2kg (0.44lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Protection Class: IP20 (for cabinet installation)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

36 Screw-Terminal Design: Clearly labeled A/B terminals support up to 32 I/O points and 4 power connections, enabling organized field wiring.
Hot-Swappable Support: Allows replacement of the hosted I/O module without disconnecting field wires, reducing downtime and maintenance complexity.
Tool-Free Installation: Integrated male-female backplane connectors and easy-keying dials ensure quick, secure mating with VersaMax I/O modules; a module latch hole locks the module in place.
Foldable Wiring Card Holder: Built-in holder stores the I/O module’s wiring card for on-site reference, simplifying troubleshooting and wiring verification.
Robust Electrical Ratings: Withstands 264 VAC continuous voltage and 300 VAC transients; 2A per terminal/8A per power segment supports high-current field devices.
Compact & Durable Construction: Standard VersaMax form factor saves cabinet space; rugged housing tolerates harsh industrial environments (temperature/humidity fluctuations).
EMC Protection: Designed to minimize electromagnetic interference, ensuring signal integrity in electrically noisy industrial settings.
