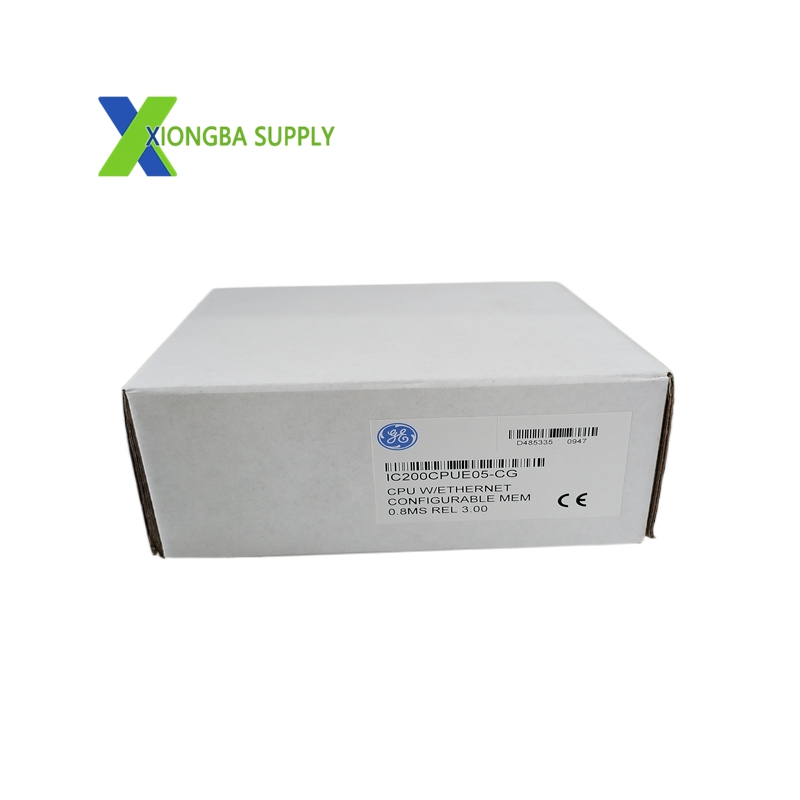

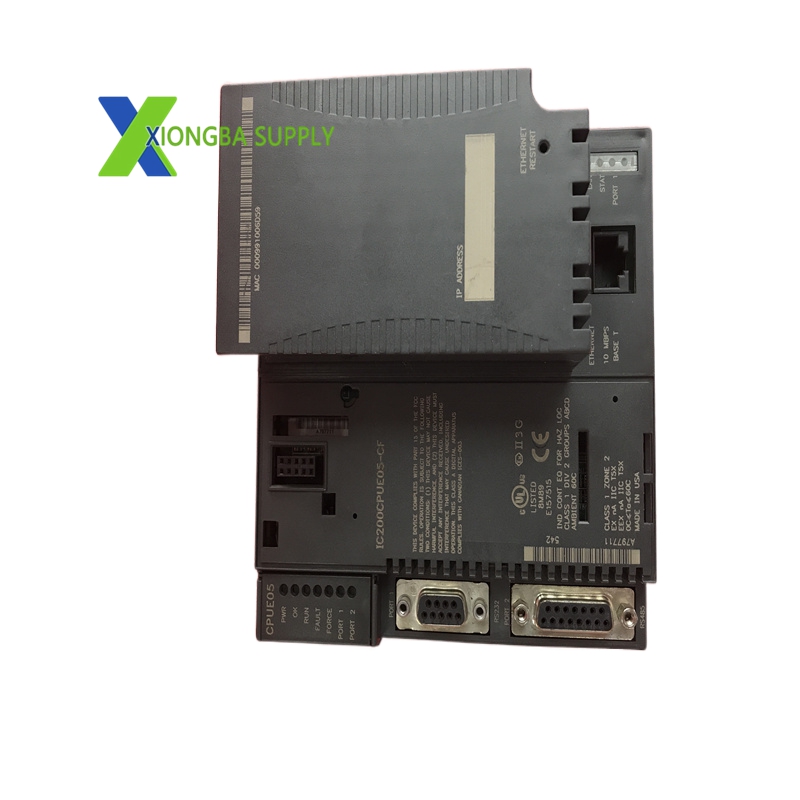

GE IC200CPUE05 – VersaMax Compact PLC CPU Module with Ethernet & Serial Communication

In stock

Product Introduction: The IC200CPUE05, designed by GE Fanuc (now Emerson Automation), is a high-performance compact CPU module within the VersaMax PLC series. Engineered for small-to-medium industrial automation systems, it integrates a powerful 32-bit processor, configurable user memory, and multi-port communication capabilities. It serves as the core controller for executing user logic, managing I/O modules, and facilitating data exchange across networks, delivering reliable and scalable control for diverse industrial applications.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200CPUE05
Series: VersaMax PLC System
Processor: 32-bit high-speed RISC CPU
User Memory: 64KB configurable user memory; 512KB RAM; 512KB Flash memory
Program Execution Speed: 0.8ms per 1K Boolean instructions (typical)
I/O Capacity: Supports up to 64 I/O modules; maximum 2048 I/O points
Communication Ports:
- 1 × 10Mbps Ethernet port (RJ45, half/full-duplex)
- 1 × RS-232 port (DB9, for programming/serial communication)
- 1 × RS-485 port (DB15, for network communication)
Supported Protocols: Modbus RTU, EGD (Ethernet Global Data), SRTP (up to 8 server connections)
Power Requirements:
- Backplane: 5VDC at 220mA; 3.3VDC at 570mA
- External: 12–24VDC (optional)
Power Consumption: 6W maximum
Dimensions (W×H×D): 126mm × 128mm × 69.1mm
Weight: 0.28kg (0.63lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA
Mounting: DIN rail (horizontal/vertical)

Key Features

Powerful 32-Bit Processing: Fast Boolean execution and floating-point arithmetic support complex control algorithms.
Multi-Communication Interfaces: Ethernet, RS-232, and RS-485 ports enable seamless connectivity to HMI, SCADA, and other PLCs.
High Scalability: Expands up to 2048 I/O points to accommodate growing system requirements.
Non-Volatile Storage: Flash memory retains programs/data without batteries; supercapacitor preserves RAM data during power outages.
Real-Time Clock (RTC): ±9 seconds/day accuracy for time-stamping events and scheduling.
LED Diagnostic Indicators: PWR, OK, RUN, FAULT, FORCE, PORT1, PORT2 for real-time status and fault troubleshooting.
Programming Flexibility: Supports Ladder Diagram (LD) and Instruction List (IL) languages.
Hot-Swappable: Replaces modules without system shutdown for reduced downtime.
Compact & Rugged: Space-saving design with wide temperature tolerance for harsh industrial environments.
