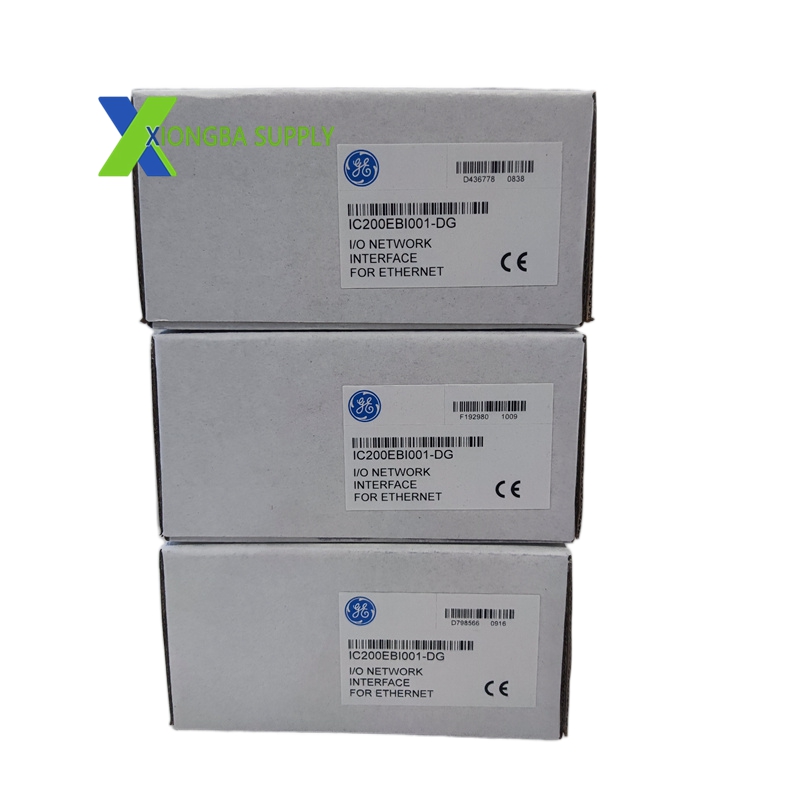

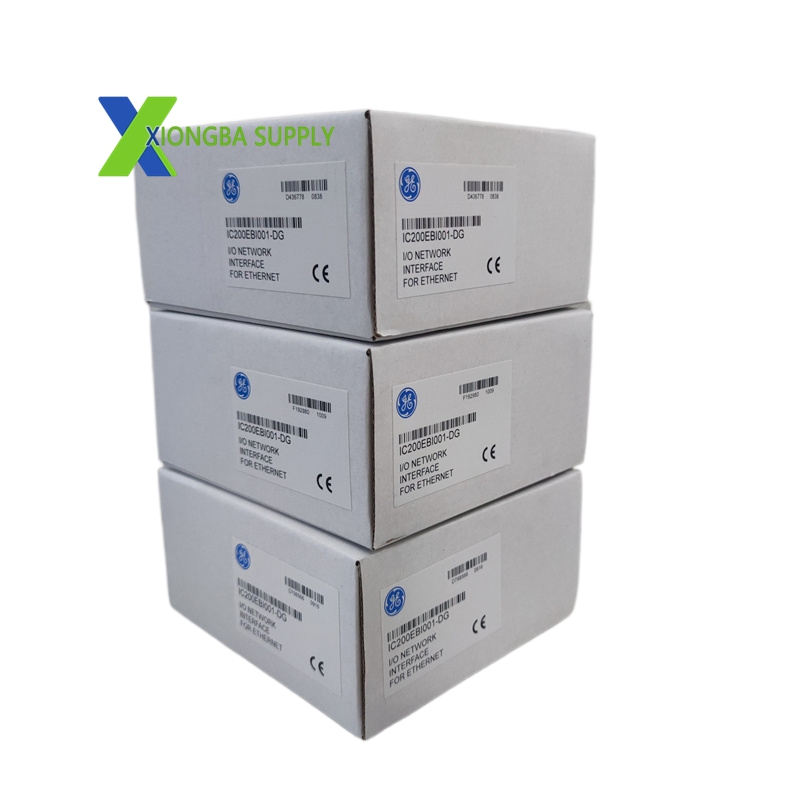

GE IC200EBI001 – VersaMax Ethernet Network Interface Unit (ENIU)

In stock

Product Introduction

The IC200EBI001, designed by GE Fanuc and now under Emerson Automation, is a high-performance Ethernet Network Interface Unit (ENIU) in the VersaMax PLC series. It functions as an Ethernet slave module, acting as a controller for a set of I/O modules to implement distributed I/O architecture. It enables seamless communication between VersaMax I/O systems and Ethernet-based controllers, supporting real-time data exchange, diagnostics, and remote monitoring in industrial automation environments.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200EBI001
Series: VersaMax PLC System
Module Type: Ethernet Network Interface Unit (ENIU)
Ethernet Port: 1 × RJ45 (10/100 Base-T, auto-negotiation)
Communication Protocols: Modbus TCP/IP, Ethernet Global Data (EGD), TCP/IP, UDP
I/O Capacity: 512 bytes input / 512 bytes output (1024 bytes total); 2048 discrete I/O points; 128 analog input/output channels
Expansion Capability: Version 1.1+ supports 64 I/O modules and 7 expansion racks; Version 1.0 supports 8 I/O modules
Fault Data Capacity: 128 bytes maximum
Power Consumption: 5VDC at 175mA; 3.3VDC at 425mA (backplane)
External Power: 24VDC (compatible with 120–240VAC via power module)
Dimensions (W×H×D): 133.4mm × 69.1mm × 85.9mm
Weight: 0.14kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non-condensing)
Protection Class: IP20
Certifications: UL, CUL, CE, Class I Division 2
Default IP Address: 195.0.0.1

Key Features

High-Speed Ethernet Communication: 10/100 Mbps auto-negotiation ensures fast and reliable data transmission.
Distributed I/O Control: Manages up to 64 I/O modules and 7 expansion racks for scalable system design.
Dual Protocol Support: Operates as a Modbus TCP server and EGD station for flexible network integration.
Comprehensive LED Diagnostics:
- PWR: Indicates external power presence.
- OK: Confirms module health and backplane power.
- FLT: Signals fault conditions.
- LAN: Shows Ethernet link/activity status.
- STAT: Modbus connection (solid green) or invalid IP (flashing amber).
Hot-Swappable: Allows replacement without system shutdown for minimal downtime.
Robust Environmental Tolerance: Operates reliably in wide temperature and humidity ranges.
Compact DIN Rail Mount: Standard form factor for easy integration into control cabinets.
