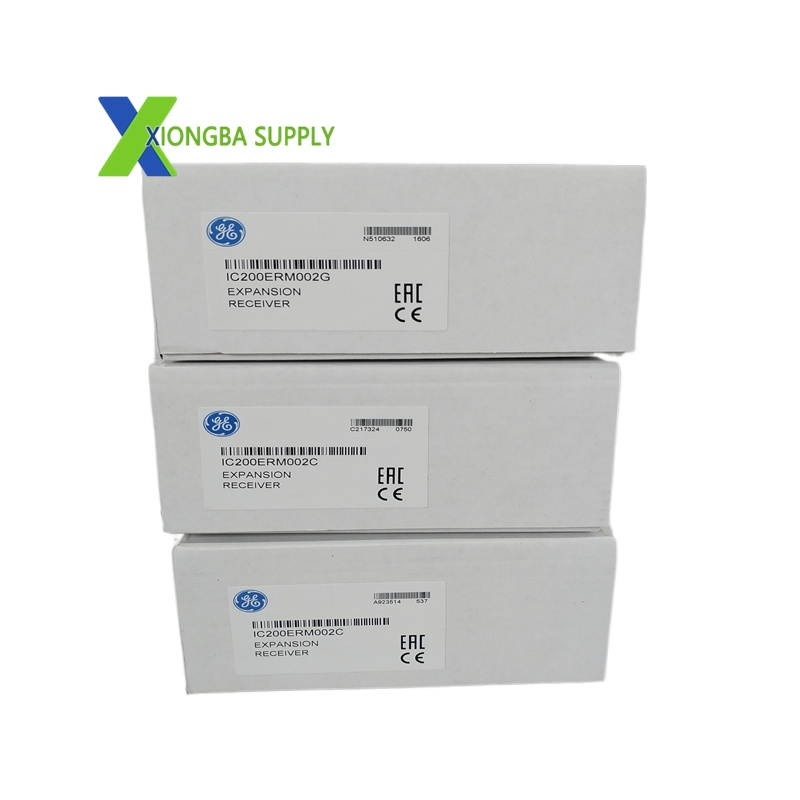

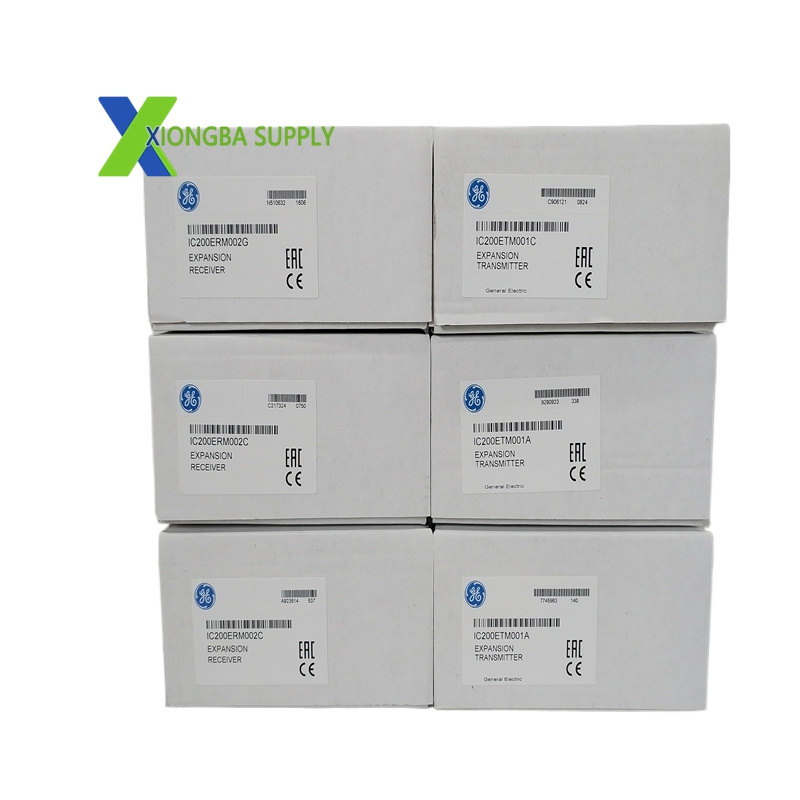

GE IC200ERM002 – VersaMax Non‑Isolated Expansion Receiver Module

In stock

Product Introduction:

The IC200ERM002 is a core expansion component in the GE Fanuc (Emerson Automation) VersaMax PLC series. It functions as a non‑isolated expansion receiver, designed to extend the I/O capacity of VersaMax PLC systems by enabling multi‑rack daisy‑chained connections. Serving as an interface between the main PLC rack and remote expansion racks, it transmits control signals and data efficiently, supporting scalable system configuration for medium‑to‑large industrial automation projects. It is widely deployed in distributed control environments where expanded I/O points and flexible rack layout are required。

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC200ERM002
Series: VersaMax PLC System
Module Type: Non‑Isolated Expansion Receiver Module
Expansion Ports: Two 26‑pin female D‑shell connectors (top: inbound; bottom: daisy‑chain/terminator)
Max Expansion Capacity: Up to 7 groups (racks), 8 modules per group
Backplane Compatibility: 5VDC or 3.3VDC VersaMax backplanes
Backplane Current Consumption: 70mA @ 5VDC; 20mA @ 3.3VDC
Isolation: Non‑isolated
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.23kg (0.50lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier

Key Features

High‑Density I/O Expansion: Supports up to 7 expansion racks with 8 modules each, significantly increasing system I/O count for complex automation.
Daisy‑Chain Connectivity: Two 26‑pin D‑shell ports enable seamless cascading of expansion racks, simplifying wiring and reducing cost.
Dual Backplane Support: Compatible with both 5VDC and 3.3VDC VersaMax backplanes for flexible system integration。
LED Diagnostic Indicators: Equipped with status LEDs for power and communication, allowing real‑time monitoring and quick fault localization.
Compact & Hot‑Swappable: Standard VersaMax form factor for easy cabinet integration; supports hot swapping to minimize downtime during module replacement.
Robust Industrial Design: IP20 protection and wide temperature tolerance ensure reliable operation in harsh industrial environments.
