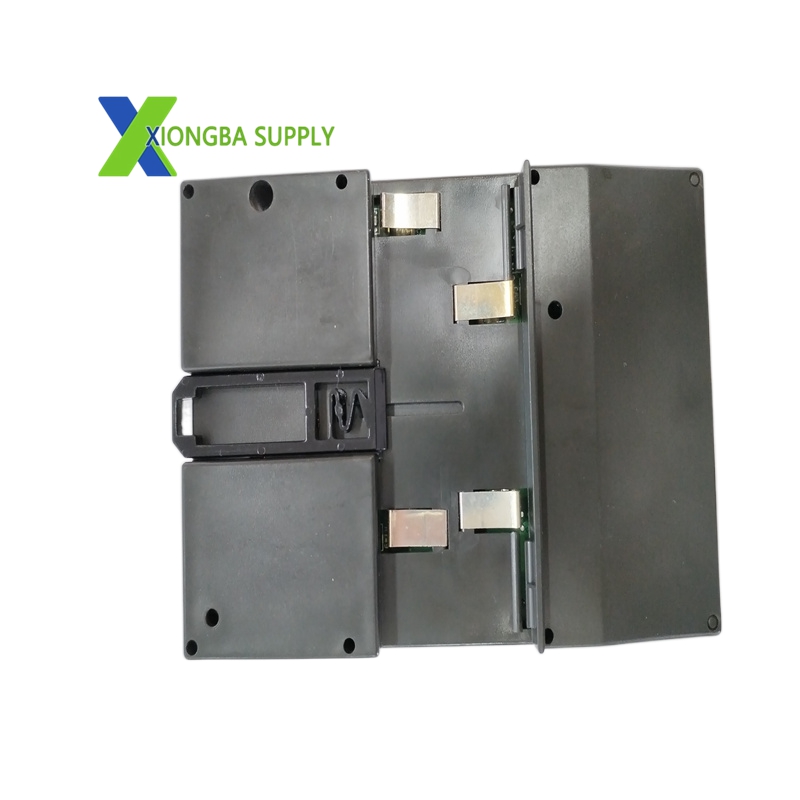

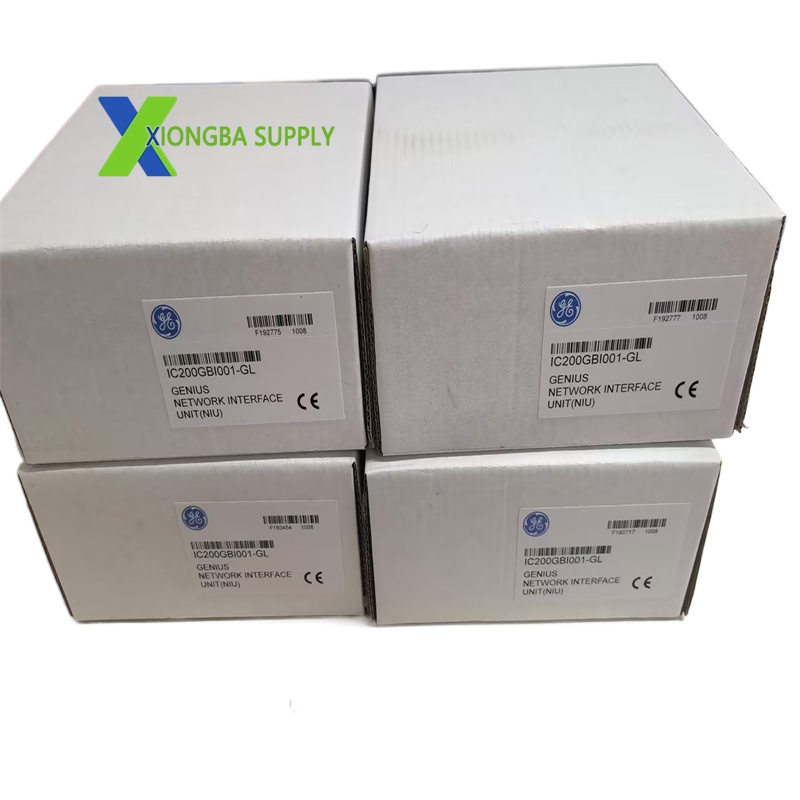

GE IC200GBI001 – VersaMax Genius Network Interface Unit (NIU)

In stock

Product Introduction: The IC200GBI001, developed by GE Fanuc (now part of Emerson Automation), is a high-performance network interface unit in the VersaMax I/O series. It acts as a communication bridge between VersaMax distributed I/O modules and Genius network-based controllers, enabling seamless data exchange and centralized control in industrial automation systems. Designed for deterministic and reliable communication, it supports daisy-chain wiring and redundant network paths, making it suitable for large-scale distributed control applications.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC200GBI001
Series: VersaMax PLC System
Module Type: Genius Network Interface Unit (NIU)
Supported Network: Genius Bus Protocol
I/O Rack Capacity: Up to 8 racks
Modules per Rack: Up to 8 modules
Serial Bus Address: 0 to 31 (configurable)
Network Data Rate: 153.6 Kbaud (extended/standard), 76.8 Kbaud, 38.4 Kbaud
Discrete I/O Memory: 1024 inputs, 1024 outputs
Analog I/O Memory: 128 bytes input, 128 bytes output
Network Scan Capacity: 128 bytes input, 128 bytes output per scan
Power Consumption: 5VDC at 250mA; 3.3VDC at 10mA (backplane)
Terminating Resistor Options: 75Ω, 100Ω, 120Ω, 150Ω (configurable)
Operating Temperature: 0°C to +50°C (32°F to 122°F)
Relative Humidity: 20%–80% RH (non-condensing)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.35kg (0.77lbs)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)

Key Features

Dual Genius Network Terminals: Equipped with primary and redundant ports for enhanced communication reliability and fault tolerance.
High I/O Expansion Capacity: Supports up to 64 I/O modules (8 racks × 8 modules) with 1024 discrete and 128-byte analog I/O points.
Multiple Baud Rate Support: Configurable data rates (153.6/76.8/38.4 Kbaud) to adapt to different network lengths and noise environments.
Daisy-Chain Wiring Topology: Simplifies network layout and reduces cabling complexity for distributed I/O installations.
Wide Controller Compatibility: Integrates seamlessly with GE Series 90-70, PACSystems RX7i, and PACSystems RX3i controllers.
Diagnostic LEDs: Provides real-time status indicators for power, communication, and network faults.
Compact & Robust Design: Standard VersaMax form factor for easy integration; industrial-grade construction for harsh environments.
