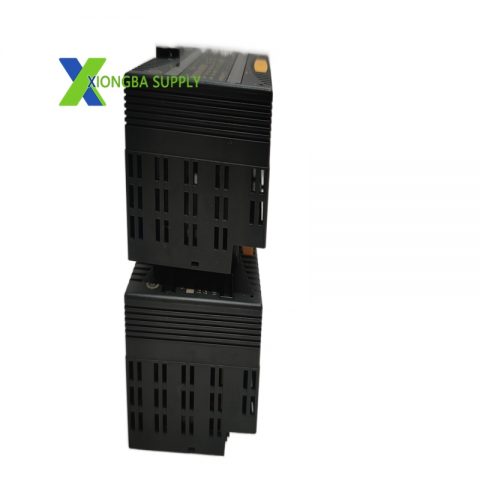

GE IC200MDD844F – VersaMax 24VDC 16-In/16-Out Mixed Discrete I/O Module

In stock

Product Introduction: The IC200MDD844F is a high-density mixed digital input/output module from the GE Fanuc VersaMax series, engineered for compact, cost-effective industrial automation control. It integrates 16 positive‑logic 24VDC inputs and 16 sourcing 24VDC outputs in a single standard VersaMax form factor, serving as a seamless interface between the PLC and field devices such as sensors, switches, relays, and solenoid valves. The “F” suffix denotes a factory‑calibrated, enhanced‑reliability variant with consistent performance under demanding conditions.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200MDD844F
Series: VersaMax PLC System
Module Type: Mixed Discrete Input/Output Module
Total I/O Points: 32 (16 inputs + 16 outputs)
Input Details: 16 × 24VDC positive‑logic, 2 groups of 8 channels each
Input Voltage Range: 0–30VDC; On‑threshold: 15–30VDC; Off‑threshold: 0–5VDC
Input Impedance: ≈10kΩ
Input Response Time: 0.5ms (basic); configurable filters: 0ms, 1ms (default), 7ms (total = basic + filter)
Output Details: 16 × 24VDC sourcing (positive logic), 1 group of 16 channels
Output Voltage Range: 10.2–30VDC
Output Current: 0.5A per point @ 30VDC (resistive load)
Output On‑State Voltage Drop: ≤0.3V @ 0.5A
Short‑Circuit Protection: Constant‑current limiting, automatic recovery
Backplane Power: 5VDC at 70mA maximum
Isolation: None (common channel‑backplane reference)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.28kg (0.62lbs)
Operating Temperature: 0°C to +60°C (horizontal mounting)
Storage Temperature: -40°C to +85°C
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA
Mounting: DIN rail or VersaMax I/O carrier

Key Features
High‑Density I/O Integration: Combines 16 inputs and 16 outputs in one module to save cabinet space and reduce wiring complexity.
Positive‑Logic Compatibility: Inputs accept sink‑type sensor signals; outputs source positive voltage to drive relays, valves, and indicators directly.
Configurable Input Filters: Selectable 0/1/7ms filters suppress contact bounce and electrical noise, ensuring stable input status in harsh environments.
Short‑Circuit & Overload Protection: Each output features current limiting and automatic recovery to safeguard the module and field wiring during faults.
LED Status Indicators: Individual LEDs for each input and output enable real‑time status monitoring and fast troubleshooting.
Hot‑Swappable Design: Supports replacement without shutting down the entire system, minimizing downtime for maintenance.
Wide Environmental Tolerance: Operates reliably across 0°C to +60°C and non‑condensing humidity, suitable for factory floors and industrial control rooms.
