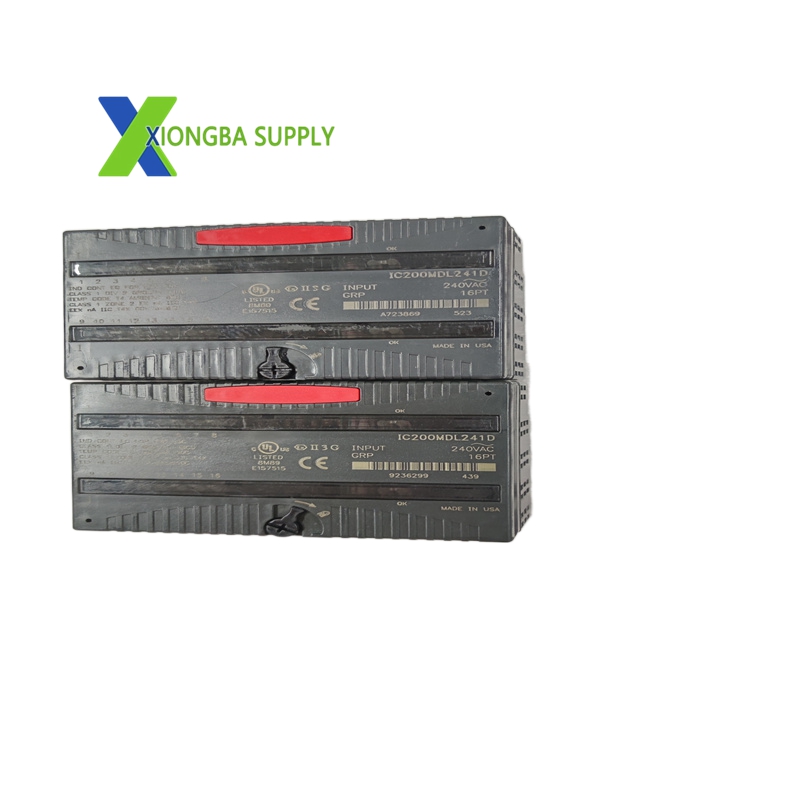

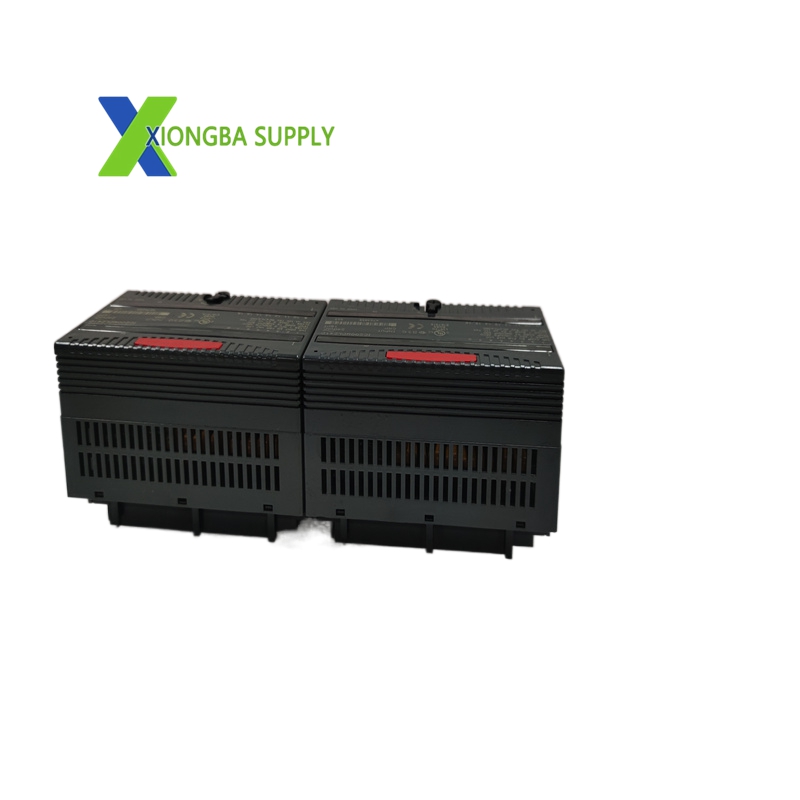

GE IC200MDL241 – VersaMax 16‑Point AC Discrete Input Module (2 Groups × 8 Channels)

In stock

Product Introduction: The IC200MDL241, manufactured by GE (Emerson Automation), is a high‑voltage AC discrete input module in the VersaMax I/O series. It serves as an interface between 85–264VAC field devices and VersaMax PLC systems, converting AC on/off signals into digital data for real‑time monitoring and control. Designed for industrial environments with high electrical noise, it provides group‑to‑group and channel‑to‑logic isolation, ensuring reliable signal acquisition for high‑voltage digital inputs.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200MDL241
Series: VersaMax PLC System
Module Type: AC Discrete Input Module
Input Channels: 16 points, divided into 2 isolated groups of 8 channels each
Input Voltage Range: 85–264VAC (50/60Hz); nominal 120/240VAC
Input Current: Typical 10mA @ 120VAC; minimum 4mA (ON state); maximum 1.5mA (OFF state)
Input Threshold: ON ≥79VAC; OFF ≤20VAC
Input Impedance: ≥10kΩ
Response Time: ON ≤1 scan cycle; OFF ≤2 scan cycles
Isolation: 250VAC continuous; 1500VAC for 1 minute (group‑to‑group, channel‑to‑logic, frame‑to‑ground)
Backplane Power: 5VDC at 85mA (typical); 110mA (maximum)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.28kg (0.62lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA (industrial safety and EMC compliance)
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier; hot‑swappable

Key Features

Wide AC Input Compatibility: Accepts 85–264VAC signals, supporting global 120VAC/240VAC industrial standards for flexible deployment.
Group Isolation Design: Two independent groups of 8 channels with 250VAC continuous isolation prevent cross‑group interference and enhance system safety.
High Noise Immunity: Optical isolation between field inputs and PLC logic withstands 1500VAC surge, ensuring stable operation in electrically harsh environments.
Channel‑Level LED Diagnostics: 16 individual channel LEDs display real‑time on/off status; one OK LED indicates backplane power integrity for quick troubleshooting.
Fast Response: 1‑scan‑cycle ON response enables real‑time monitoring of high‑speed AC device status changes.
Hot‑Swappable & Compact: Standard VersaMax form factor saves cabinet space; hot‑swap capability allows replacement without system shutdown.
Industrial‑Grade Durability: Withstands 0°C to +60°C temperatures and non‑condensing humidity for long‑term reliability in factories and processing plants.
