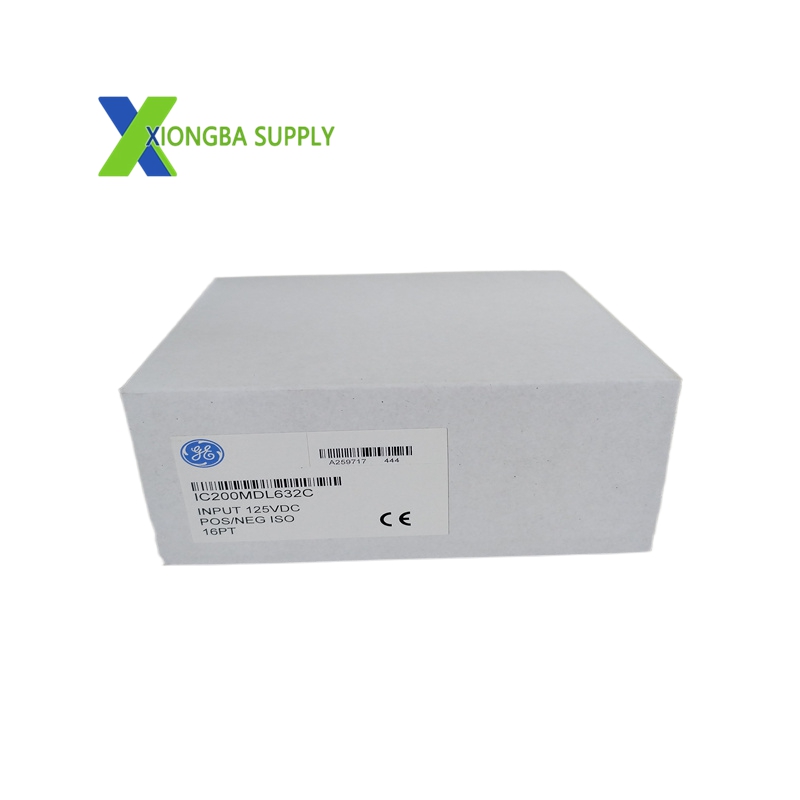

GE IC200MDL632 – VersaMax 16-Point 125VDC Isolated Discrete Input Module

In stock

Product Introduction: The IC200MDL632, engineered by Emerson Automation (formerly GE Intelligent Platforms), is a high-voltage discrete input module in the VersaMax I/O series. It interfaces with 125VDC field devices such as limit switches, pushbuttons, and auxiliary contacts, converting binary on/off signals into PLC-compatible logic. With 16 individually isolated channels and support for both positive and negative logic, it delivers robust signal integrity in high-interference industrial environments.

Technical Specifications

Manufacturer: Emerson Automation (GE Fanuc)
Model: IC200MDL632
Series: VersaMax PLC System
Module Type: Discrete Input Module
Input Points: 16 isolated channels (individual channel isolation)
Nominal Input Voltage: 125VDC
Input Voltage Range: 0–150VDC
Input Current: 1.7mA typical @125VDC; 2.2mA typical @150VDC
Backplane Current: 80mA @5VDC
Isolation: 1500VAC (1 min) channel-to-logic; 250VAC continuous
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.14kg (0.31lbs)
Operating Temperature: 0°C to +60°C
Certifications: CE, UL, CSA

Key Features
High-Voltage Compatibility: Accepts up to 150VDC inputs for legacy or high-voltage sensor systems.
Dual Logic Support: Configurable for positive or negative logic wiring to match field device requirements.
Individual Channel Isolation: Eliminates crosstalk and protects against ground loops.
LED Status Indicators: Per-channel LEDs for real-time input status monitoring.
Hot-Swappable: Enables replacement without system shutdown.

Application Scenarios
Legacy Industrial Systems: Retrofits for 125VDC relay-based control panels.
Heavy Machinery: Monitoring limit switches and safety interlocks in mining and construction equipment.
Power Utilities: High-voltage DC signal monitoring in substation automation.
