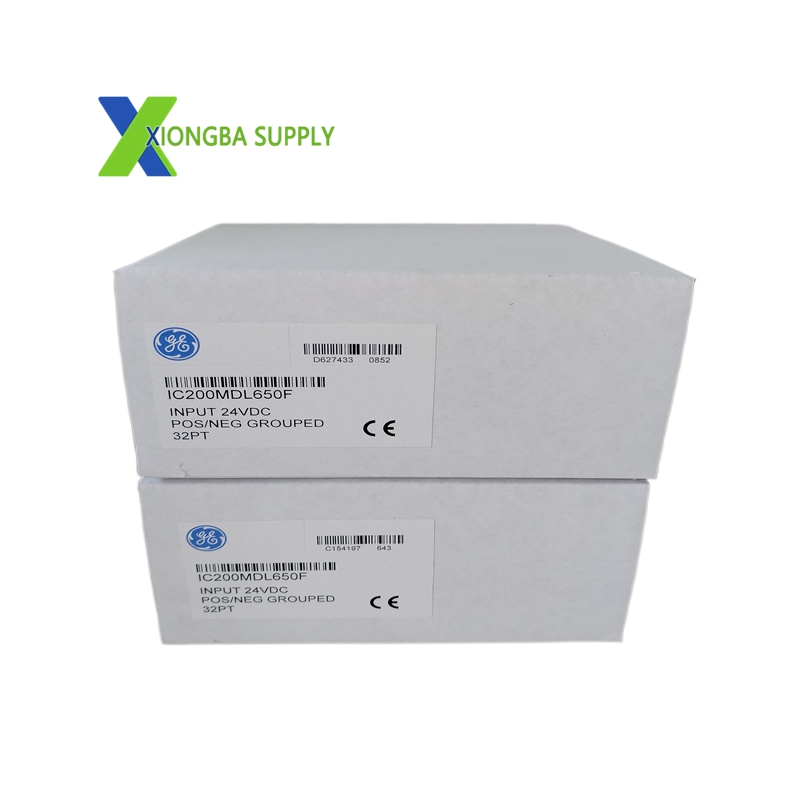

GE IC200MDL650 – VersaMax 32-Point 24VDC Positive Logic Discrete Input Module

In stock

Product Introduction: The IC200MDL650 is a high-density 24VDC discrete input module from Emerson’s VersaMax series. Designed for general-purpose industrial automation, it provides 32 input points organized into four groups of eight, accepting standard 24VDC signals from sensors, switches, and pushbuttons. It optimizes space and cost for large-scale I/O applications while ensuring reliable signal conversion.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200MDL650
Series: VersaMax PLC System
Module Type: Discrete DC Input Module
Input Channels: 32 points (4 isolated groups of 8 channels each)
Nominal Input Voltage: 24VDC
Input Voltage Range: 0–30VDC
Logic “1” Level: 11–30VDC
Logic “0” Level: 0–5VDC
Input Current: 2.0–5.5mA per channel (ON state); 0–0.5mA (OFF state)
Input Impedance: ≤10kΩ
Response Time: 0.5ms (maximum, per channel)
Software‑Configurable Filter: 0ms, 1ms, or 7ms
Isolation: 250VAC continuous; 1500VAC for 1 minute (group‑to‑group)
Backplane Power: 5VDC at 50mA (maximum)
External Power: Not required (logic power from backplane)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.31kg (0.69lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL 508, CSA, IEC 61131‑2
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier

Key Features

High‑Density 32‑Channel Design: Maximizes I/O capacity in a compact footprint, reducing cabinet space and wiring cost.
Dual Logic Compatibility: Supports both positive (sourcing) and negative (sinking) logic wiring to match diverse field devices.
Group‑to‑Group Isolation: 250VAC continuous isolation between groups minimizes electrical noise interference and enhances system safety.
Fast Response with Adjustable Filter: 0.5ms base response; software‑selectable 0/1/7ms filters suppress transient noise for stable operation.
Individual Channel Status LEDs: 16 green LEDs (one per two channels) provide real‑time visual indication of input status for easy monitoring and troubleshooting.
Hot‑Swappable: Allows module replacement during system operation without shutting down the PLC.
Robust Industrial Construction: Wide temperature/humidity tolerance and IP20 protection ensure reliable performance in harsh factory environments.
Tool‑Free Wiring: Uses removable screw terminal blocks (AWG 14–22) for fast, secure field wiring and maintenance.
