GE IC200MDL740 – VersaMax 16‑Point 12/24VDC Sourcing Discrete Output Module

In stock

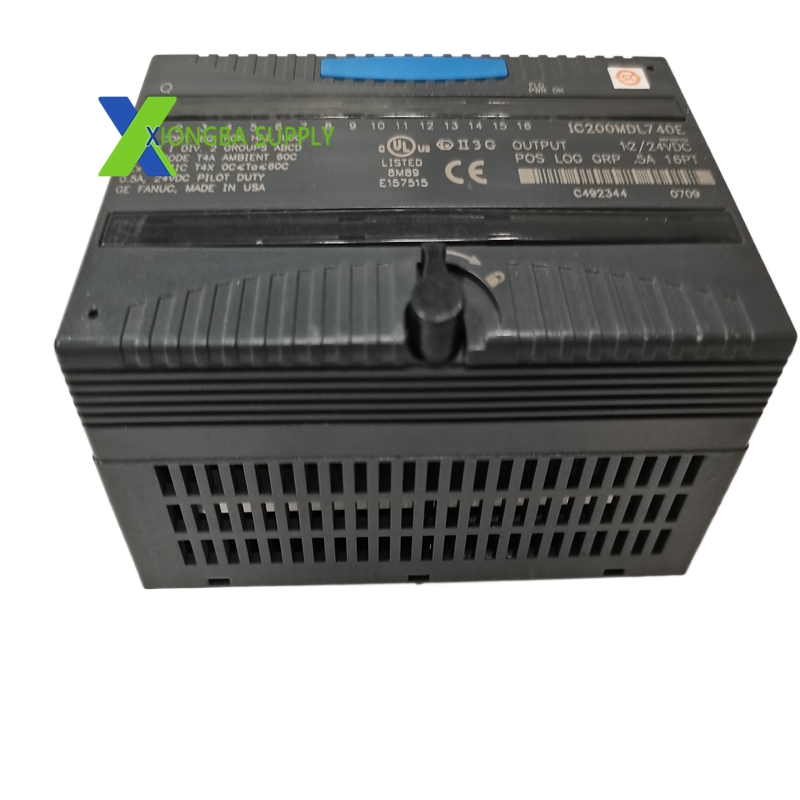

Product Introduction: The IC200MDL740, manufactured by GE Fanuc (Emerson Automation), is a high‑density discrete output module in the VersaMax I/O series. It converts digital control signals from the PLC into 12/24VDC sourcing outputs to drive industrial field devices such as relays, solenoids, indicator lights, and small actuators. Designed for compact integration, high‑speed switching, and reliable real‑time control, it serves as a critical interface between digital automation systems and discrete process equipment in diverse industrial environments.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200MDL740
Series: VersaMax PLC System
Module Type: Discrete DC Output Module
Output Channels: 16 sourcing (positive logic) outputs, grouped as one bank
Output Voltage Range: 10.2–30VDC (nominal 12/24VDC)
Output Current: 0.5A per point (resistive load); 4A maximum per group
Response Time: 0.2ms (ON), 1.0ms (OFF)
On‑State Voltage Drop: ≤1.0V maximum
Off‑State Leakage Current: ≤0.5mA at 30VDC
Backplane Power: 5VDC at 110mA typical
Field Power: 12–24VDC external supply
Isolation: Channel‑to‑backplane isolation; no channel‑to‑channel isolation
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.25kg (0.55lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non‑condensing)
Certifications: CE, UL, CSA, RoHS
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier

Key Features

16‑Point High‑Density Output: Provides 16 independent sourcing outputs in a compact form factor, saving cabinet space and wiring costs.
High‑Speed Switching: 0.2ms ON and 1.0ms OFF response times support fast‑paced automation sequences.
Sourcing Output (Positive Logic): Supplies positive voltage to loads, compatible with common industrial sensors and actuators.
LED Diagnostic Indicators: 16 green LEDs (one per channel) display real‑time output status; backplane LED indicates module power.
Overcurrent Protection: Built‑in electronic overcurrent protection safeguards against short circuits and overloads.
Hot‑Swappable Design: Supports hot insertion/removal for replacement without system shutdown.
Robust Electrical Isolation: Channel‑to‑backplane isolation protects the PLC from field‑side electrical noise and voltage spikes.
Wide Operating Conditions: Tolerates extreme temperatures and humidity for deployment in harsh industrial environments.
