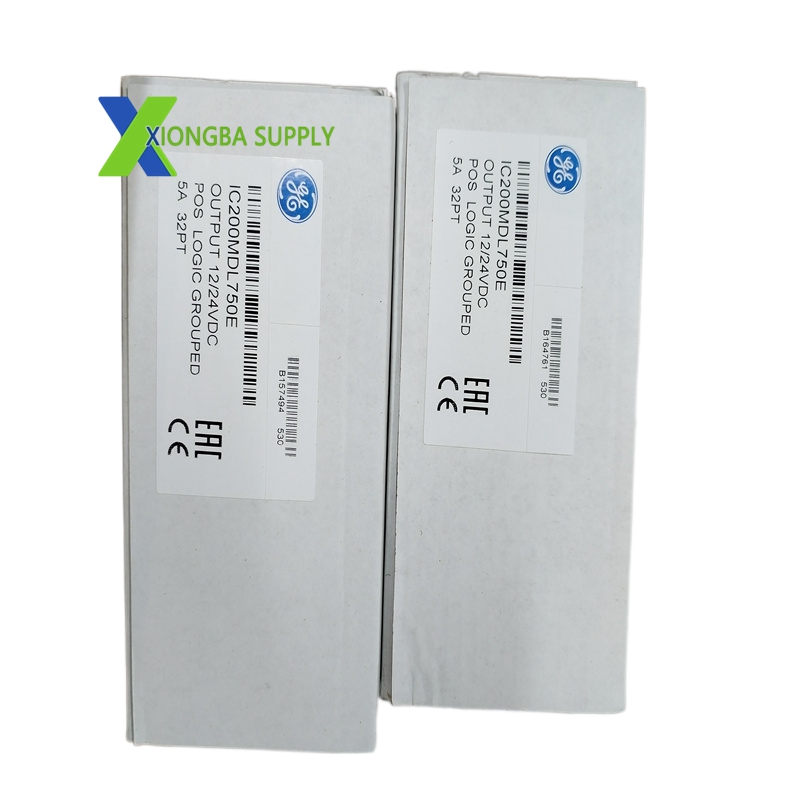

GE IC200MDL750 – VersaMax 32-Point Discrete DC Output Module

In stock

Product Introduction: The IC200MDL750, designed by GE Fanuc (now Emerson Automation), is a high-density discrete output module within the VersaMax I/O system. It delivers 32 digital on/off channels for controlling DC-powered field devices. The module is organized as two independent groups of 16 channels with group-level isolation. It supports positive logic (sourcing) outputs and operates with 12/24VDC field power, making it ideal for high-channel-count digital control in industrial automation, manufacturing, and process systems.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200MDL750
Series: VersaMax PLC System
Module Type: Discrete DC Output Module (Sourcing / Positive Logic)
Output Channels: 32 points, split into 2 groups of 16 channels (group-isolated)
Output Voltage Range: 10.2–30VDC (nominal 12VDC or 24VDC; 12VDC requires revision B or later)
Output Current: 0.5A per point (resistive load); 2.0A maximum inrush (100ms)
Response Time:
- ON: ≤0.2ms
- OFF: ≤1.0ms
Backplane Power Consumption: 90mA @ 5VDC
Field Power: External 12/24VDC (supplied to each group)
Isolation: 250VAC continuous, 1500VAC for 1 minute (group-to-logic); no per-channel isolation
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.14kg (0.31lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA (industrial safety & EMC compliance)
Protection Class: IP20 (for cabinet installation)
Mounting: DIN rail or VersaMax I/O carrier (IC200CHSxxx series)

Key Features

High-Density 32-Channel Output: Delivers 32 discrete outputs in a compact footprint, reducing cabinet space and wiring cost.
Group-Isolated Design: Two galvanically isolated groups of 16 channels minimize cross-group noise and enable separate field power distribution.
Positive Logic (Sourcing) Outputs: Switches DC power to loads (common negative), compatible with standard 12/24VDC industrial devices.
Fast Switching Speed: Sub-millisecond ON/OFF response supports high-speed digital control and pulse applications.
LED Diagnostic Indicators: Module status and group power LEDs provide immediate visual status for maintenance.
Hot-Swappable: Supports replacement during system operation without shutting down the PLC.
Thermal Derating: Allows controlled reduction of concurrent active points in high-temperature environments for long-term reliability.
Wide Voltage Compatibility: Works with 10.2–30VDC field supplies, supporting both 12VDC and 24VDC systems.
