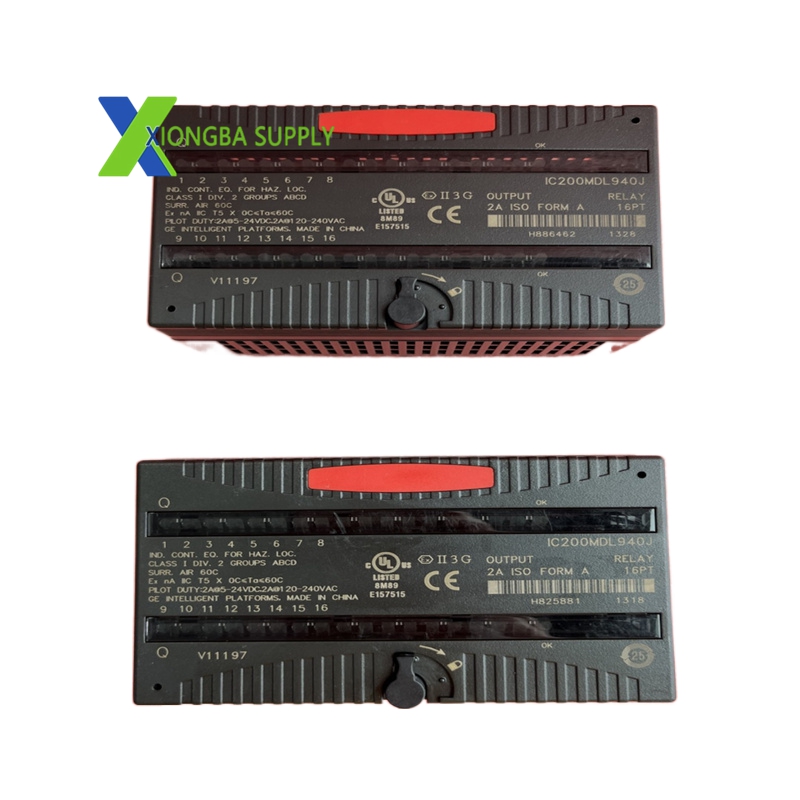

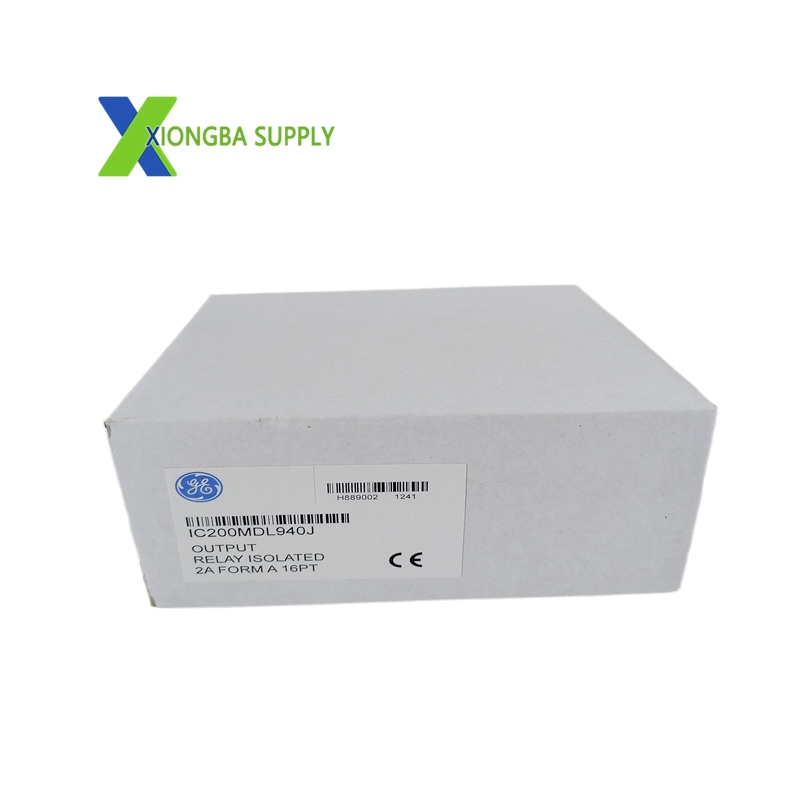

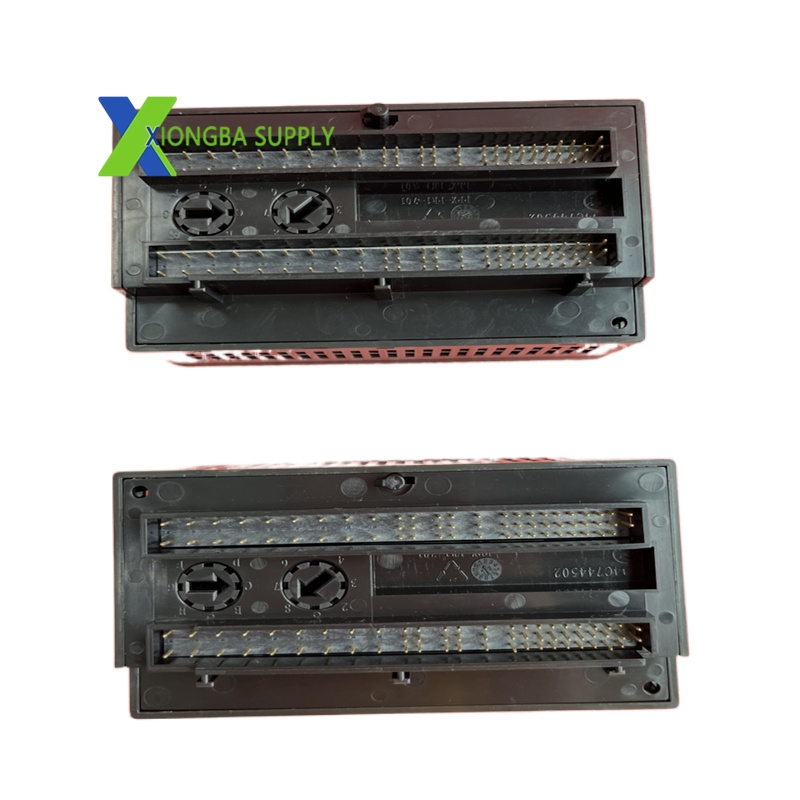

GE IC200MDL940 – VersaMax 16-Point Form A Relay Output Module

In stock

Product Introduction: The IC200MDL940, manufactured by General Electric (GE Fanuc, now Emerson Automation), is a high-density electromechanical relay output module in the VersaMax I/O series. It provides 16 Form A (normally open) relay contacts to switch external AC/DC loads, serving as a critical interface between PLC control logic and high-power field devices. Designed for rugged industrial use, it offers channel-to-channel and group isolation, hot-swappable capability, and compatibility with standard VersaMax bases, ensuring reliable on/off control in diverse automation systems.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC200MDL940
Series: VersaMax PLC System
Module Type: Discrete Relay Output Module (Form A)
Output Channels: 16 isolated Form A (NO) contacts, grouped into 2×8 channels
Contact Material: Silver alloy (low resistance, high durability)
Load Voltage Ratings:
- AC: 5–265VAC (50/60Hz)
- DC: 5–30VDC (2A max); 31–125VDC (0.2A max)
Load Current: 2A maximum per channel (resistive load); 10mA minimum per channel
Isolation: 1500VAC (1 min) channel-to-channel; 250VAC continuous group-to-logic
Response Time: ≤10ms (relay operate/release)
Backplane Power: 5VDC at 120mA maximum
Field Power: External (load-dependent, no internal field power)
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.18kg (0.40lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA, Class 1 Division 2 (hazardous locations)
Protection Class: IP20
Mounting: DIN rail or VersaMax I/O carrier (IC200CHS101/102 bases)

Key Features

16-Channel High-Density Output: Maximizes I/O capacity in compact cabinets, reducing system cost and wiring complexity.
Form A Relay Contacts: Supports normally open (NO) switching for versatile load control (motors, solenoids, lamps, contactors).
Full Electrical Isolation: Individual channel isolation prevents cross-talk and protects PLC backplane from field voltage spikes and noise.
LED Diagnostic Indicators:
- Channel LEDs: Green logic-side LEDs show real-time on/off status for each output.
- OK LED: Green LED lights when backplane power is active and module is operational.
Hot-Swappable Design: Enables module replacement without shutting down the entire system, minimizing downtime.
Removable Terminal Blocks: Simplifies field wiring and maintenance, reducing installation time.
Wide Load Compatibility: Switches both AC and DC loads with broad voltage ranges, suitable for multi-vendor field devices.
Rugged Construction: Withstands harsh industrial environments (temperature, humidity, electrical interference).
