GE IC200MDL940K – VersaMax 16‑Point Isolated Form A Relay Output Module (2A/Point)

In stock

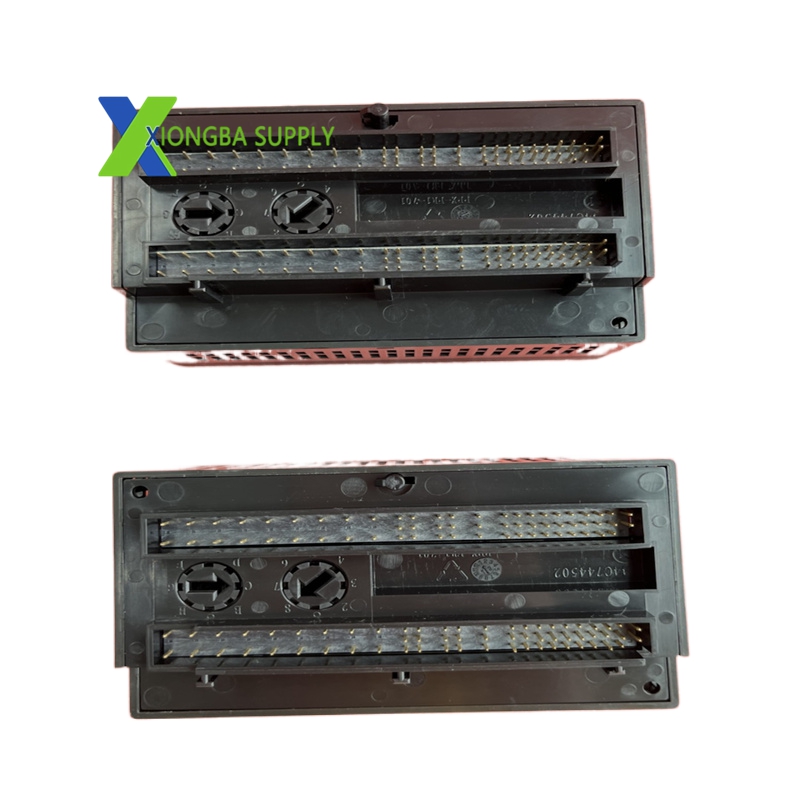

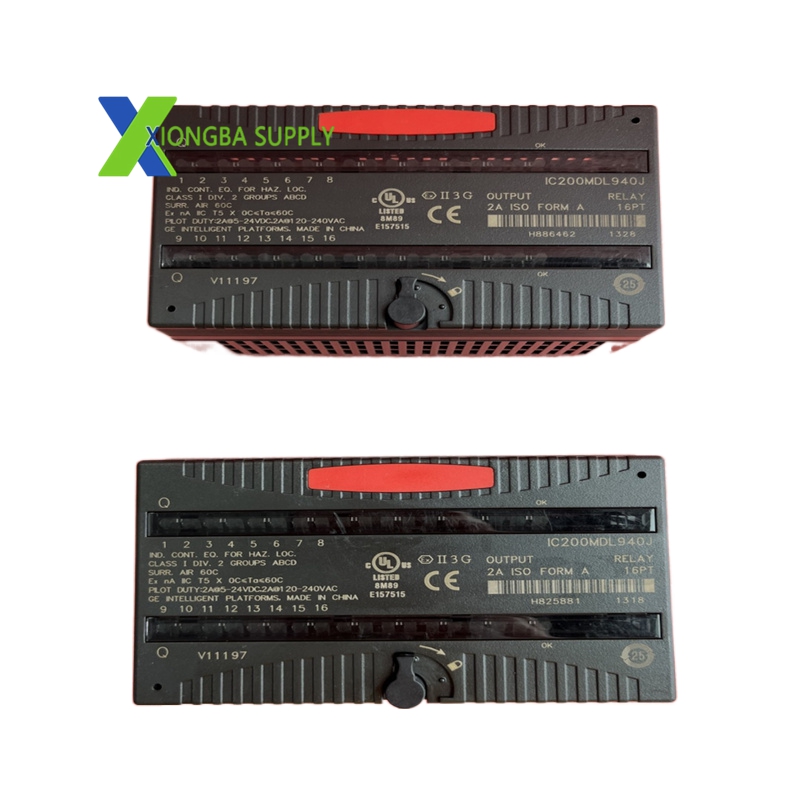

Product Introduction: The IC200MDL940K (a variant of IC200MDL940) is a high‑density discrete relay output module from the VersaMax I/O series, originally developed by GE Fanuc and now under Emerson Automation. It provides 16 individually isolated Form A (normally open) relay contacts, designed to switch AC or DC loads in industrial control systems. The module acts as an interface between PLC logic and field devices such as motors, valves, solenoids, and lamps, offering reliable galvanic isolation and robust switching capability for general‑purpose and high‑current control applications.

Technical Specifications

Manufacturer: GE Fanuc / Emerson Automation
Model: IC200MDL940K
Series: VersaMax PLC System
Module Type: Discrete Relay Output Module
Output Points: 16 Form A (N.O.) relay contacts, divided into 2 groups of 8
Contact Rating (Resistive Load):
- AC: 0–265VAC, 47–63Hz; 2.0A maximum per point
- DC: 5–30VDC; 2.0A maximum per point
- DC: 31–125VDC; 0.2A maximum per point
Minimum Load Current: 10mA per point
Isolation:
- Channel‑to‑logic: 250VAC continuous; 1500VAC for 1 minute
- Group‑to‑group: 250VAC continuous; 1500VAC for 1 minute
- Channel‑to‑channel: 250VAC continuous; 1500VAC for 1 minute
Response Time: ≤10ms (maximum)
Backplane Power: 5VDC at 490mA maximum
Dimensions (W×H×D): 110mm × 66.8mm × 50mm
Weight: 0.32kg (0.71lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non‑condensing)
Protection Class: IP20
Certifications: CE, UL, cUL, CSA
Mounting: DIN rail or VersaMax I/O carrier

Key Features

16 Individually Isolated Relays: Each output is fully isolated, eliminating cross‑talk and enabling independent switching of high‑voltage/current loads.
Universal AC/DC Switching: Supports a wide range of AC (up to 265VAC) and DC (up to 125VDC) voltages for maximum application flexibility.
High Contact Reliability: Silver‑alloy contacts ensure long service life and stable conductivity under heavy‑duty cycling.
LED Diagnostic Indicators: One green LED per channel displays on/off status; a dedicated OK LED indicates healthy backplane communication and power.
Hot‑Swappable: Allows module replacement during system operation without shutting down the PLC.
Compact High‑Density Design: Standard VersaMax form factor delivers 16 outputs in a small footprint, optimizing cabinet space.
Wide Environmental Tolerance: Operates reliably in industrial environments with extreme temperatures and humidity.
