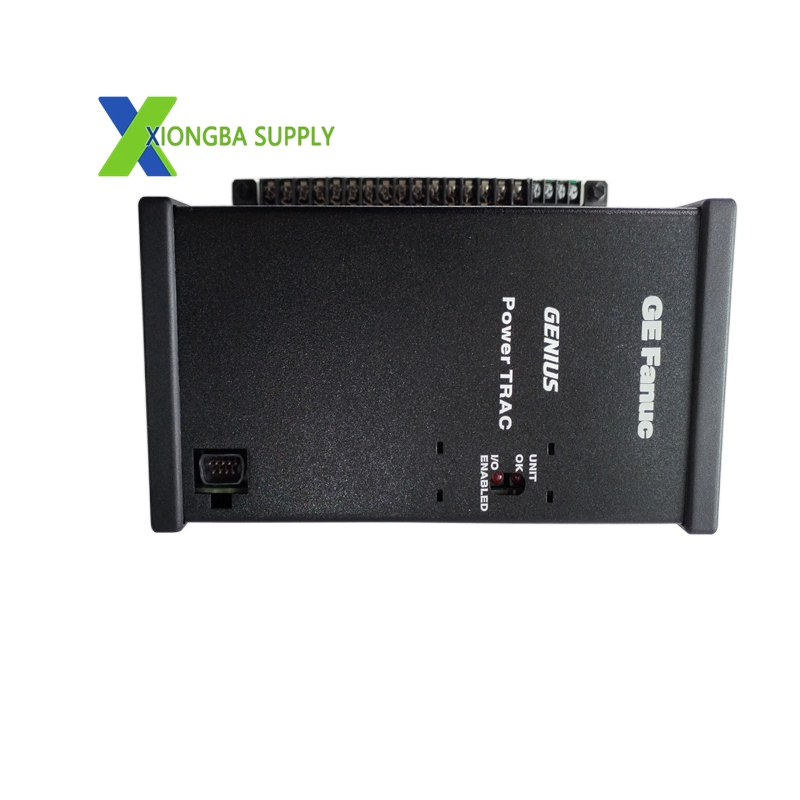

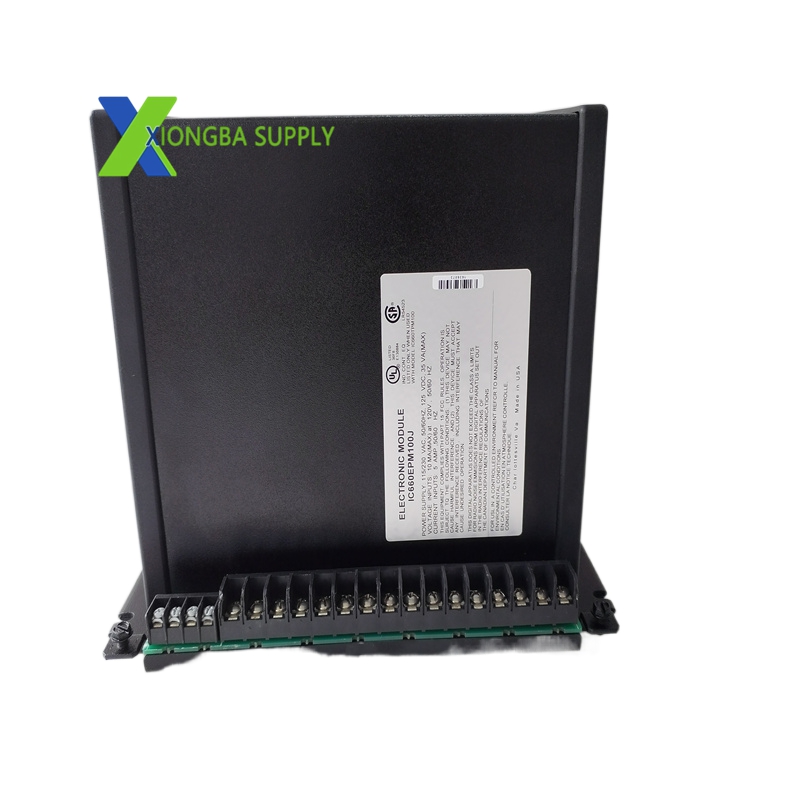

GE IC660EPM100J – Genius I/O PowerTRAC Enhanced Power Monitoring Module

In stock

Product Introduction

The IC660EPM100J, manufactured by GE Fanuc (Emerson Automation), is a high-performance power monitoring module in the Genius I/O Series (PowerTRAC line). It is designed for real-time monitoring, energy metering, and control of single-phase and three-phase AC/DC power systems in industrial environments. As a core component of the GE Series 90-30/70 PLC platform, it integrates high-precision data acquisition, power parameter calculation, and communication functions, serving as a critical link between field electrical equipment and automation control systems.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation Solutions)
Model: IC660EPM100J
Series: Genius I/O Series (PowerTRAC)
System Compatibility: GE Series 90-30/70 PLC, VersaMax Platform
Measured Systems: Single-phase, three-phase (delta/wye)
Voltage Measurement: AC 0–690V; DC 0–1000V
Current Measurement: AC 0–5A (direct); 0–1000A (with CT); DC 0–10A
Measurement Accuracy: Voltage ±0.2%FS; Current ±0.3%FS; Power ±0.5%FS
Frequency Range: 45–65Hz (accuracy ±0.01Hz)
Power Supply: 115/230VAC (±15%) or 125VDC (±10%)
Power Consumption: ≤15W
Communication: Genius Bus (up to 7500ft), Modbus TCP/RTU, RS-485
Digital Outputs: 4 relay outputs (AC 250V/5A; DC 30V/10A)
Data Storage: 128MB internal (expandable via SD card)
Update Rate: 2 times/second (data transmission)
Isolation: 250VAC continuous (channel-to-logic)
Dimensions (W×H×D): 140mm × 80mm × 120mm
Weight: 1.5kg
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5%–95% RH (non-condensing)
Certifications: CE, UL, cUL, IEEE 519, IEC 61850-3
MTBF: ≥200,000 hours

Key Features

High-Precision Multi-Parameter Monitoring: Simultaneously measures RMS voltage, RMS current, active/reactive/apparent power, power factor, frequency, and energy (kWh) with high accuracy.
Comprehensive Harmonic Analysis: Calculates harmonic distortion (THD) and individual harmonics up to the 63rd order for power quality assessment.
Dual Power Input & Wide Compatibility: Accepts both AC (115/230V) and DC (125V) power supplies for flexible deployment in diverse industrial environments.
Modular & Hot-Swappable Design: Separates electronics assembly from terminal base (sold separately) for quick replacement without system shutdown.
Powerful Communication Capabilities: Supports Genius Bus (distributed control), Modbus TCP/RTU (integration with SCADA/PLC), and local monitoring via Genius Handheld Monitor (HHM).
Fail-Safe & Fault Protection: Configurable alarm thresholds for over/under voltage, over current, and power factor issues; 4 relay outputs for fault tripping or equipment control.
Robust Environmental Adaptability: Operates reliably in wide temperature (-20°C to +70°C) and humidity (5%–95% RH) ranges with strong noise immunity.
