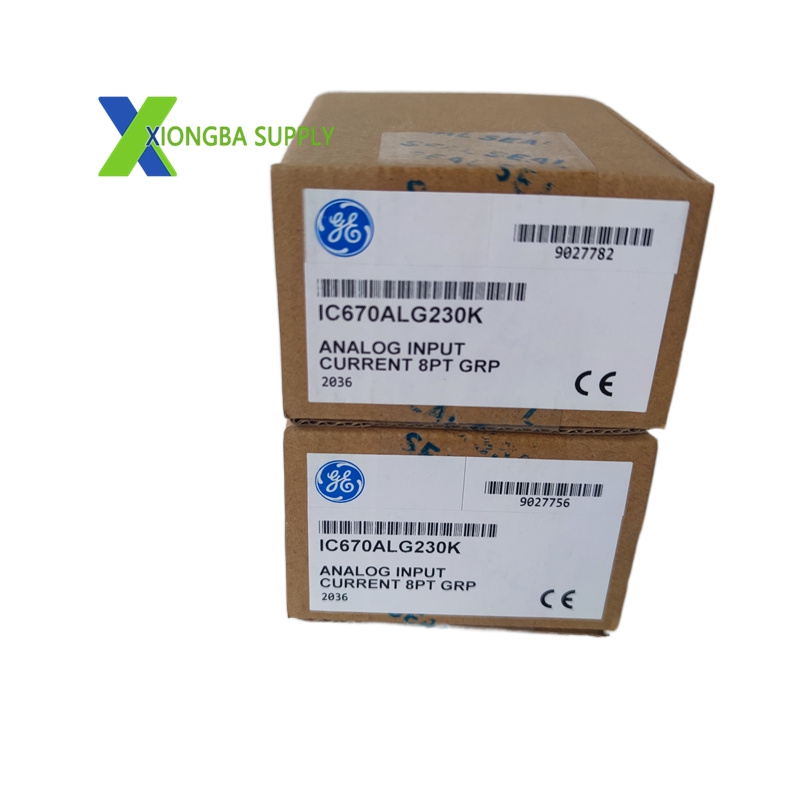

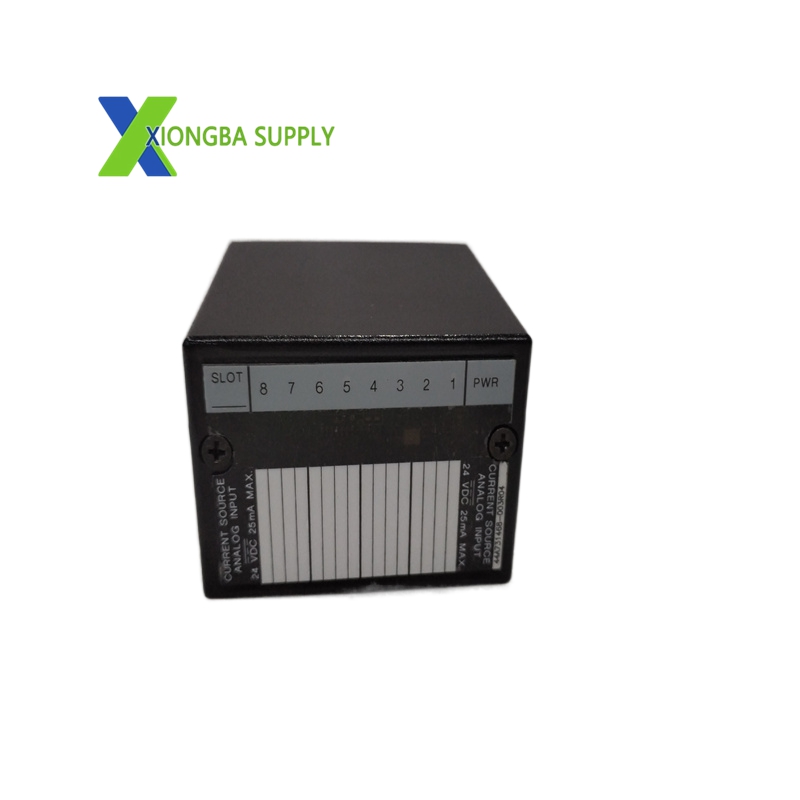

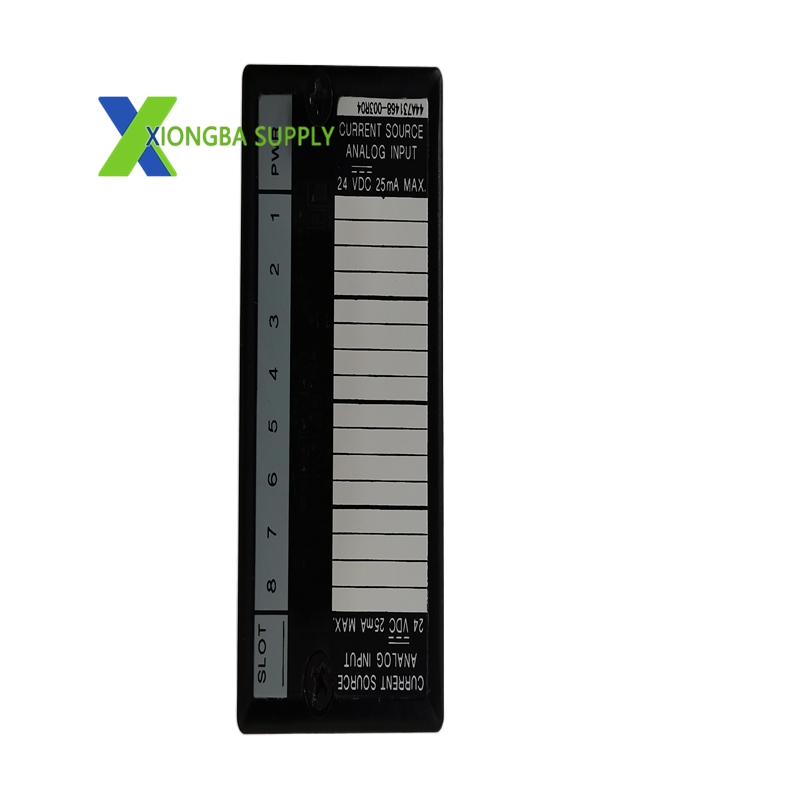

GE IC670ALG230 – Genius Field Control 8-Channel 12-Bit Current Source Analog Input Module

In stock

Product Introduction:

The IC670ALG230, designed by GE Fanuc (now Emerson Automation), is a high-density current-source analog input module within the Genius Field Control I/O series. It interfaces with 2-wire, 3-wire, or 4-wire industrial sensors and transmitters, converting standard 0–20mA or 4–20mA current signals into 12-bit digital data for processing by a PLC or host controller via a Bus Interface Unit (BIU). Engineered for centralized, multi-channel signal acquisition in harsh industrial environments, it delivers reliable, high-resolution measurements for process monitoring and control.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC670ALG230
Series: Genius Field Control I/O System
Module Type: Current Source Analog Input Module
Input Channels: 8 single-ended grouped inputs (common signal ground)
Input Ranges: Software-configurable 0–20mA (default), 4–20mA
Resolution: 12-bit digital; 5µA analog resolution
Input Impedance: 249.75Ω to 250.25Ω
Conversion Time: 60µs per channel (typical @ 1MHz clock)
Filter: 1st-order RC filter, 160Hz transition frequency
Isolation: 1500VAC (1 min) field-to-logic; 250VAC continuous
Overrange Detection: 20.000mA min to 20.500mA max
Open-Wire Detection: 2.0mA typical (4–20mA mode only)
Max Input Current: 30mA (overcurrent protected)
External Power: 18–30VDC (24VDC nominal); 25mA max per module
Backplane Current: ≤51mA @5VDC (from BIU)
Dimensions (W×H×D): 110mm × 70mm × 46mm (single-slot)
Weight: Approx. 150g
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5%–95% non-condensing
Certifications: CE, UL, CSA

Key Features
8-Channel High-Density Input: Consolidates 8 current inputs for efficient, space-saving signal collection.
Software-Configurable Ranges: Select 0–20mA or 4–20mA per channel via BIU or software, no hardware jumpers needed.
Fast 12-Bit Conversion: 60µs per channel ensures rapid, accurate data acquisition for dynamic processes.
Robust Diagnostics: Detects open wires (4–20mA), overrange, and circuit faults for proactive maintenance.
High Isolation: 1500VAC isolation blocks electrical noise and ground loops, safeguarding the control system.
Built-In Overcurrent Protection: 30mA max input and 1A fuse prevent damage from field-side electrical faults.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity for deployment in harsh industrial settings.
