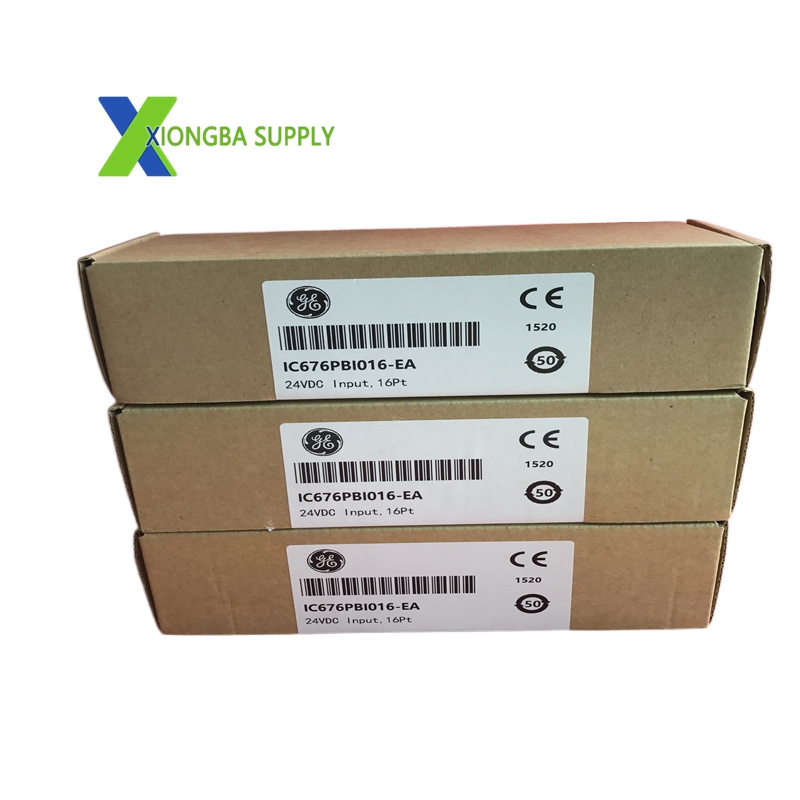

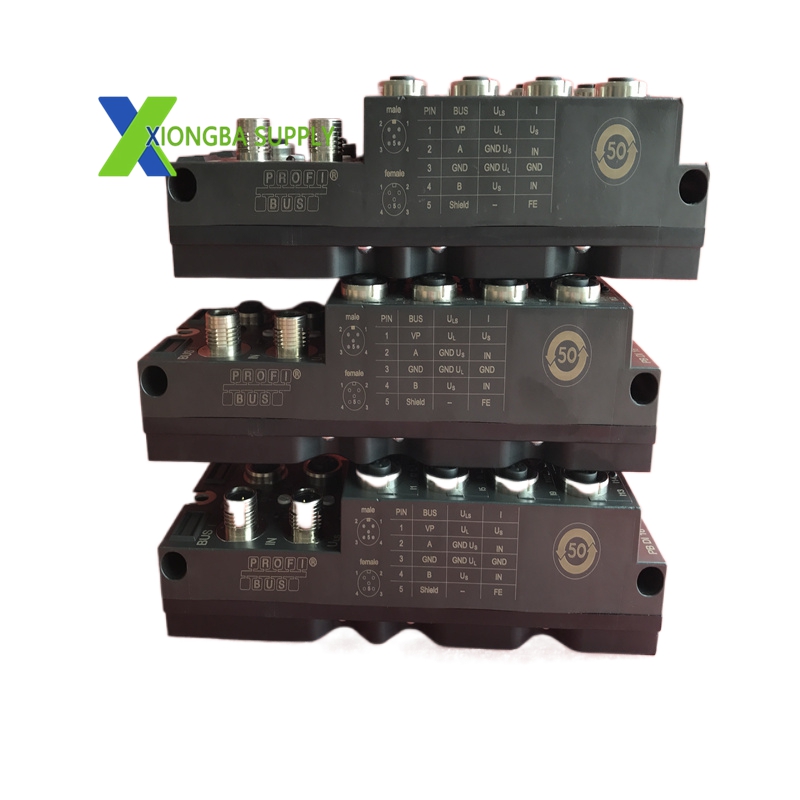

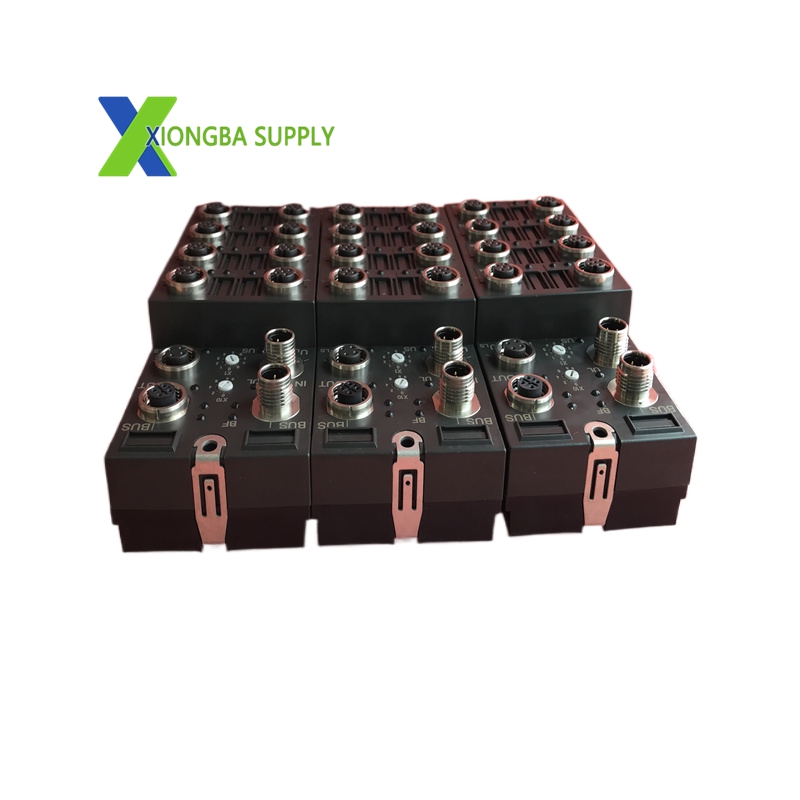

GE IC676PBI016 – VersaMax IP67 16-Point Digital Input Block (PROFIBUS DP)

In stock

Product Introduction:

The IC676PBI016, manufactured by General Electric (GE Fanuc, now Emerson Automation), is a rugged, high-density digital input module in the VersaMax IP I/O series. Designed for direct field mounting without protective enclosures, it features an IP67-rated housing to withstand dust, water, and harsh industrial conditions. It provides 16 channels of 24VDC positive-logic digital input and integrates a PROFIBUS DP interface for seamless connection to industrial PLCs and automation networks, serving as a reliable link between field sensors and control systems.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC676PBI016
Series: VersaMax IP I/O System
Module Type: Digital Input Block
Input Channels: 16 single-ended digital inputs (positive logic)
Input Voltage: 24VDC nominal (18–30VDC range)
Input Current: 10mA per channel (typical)
Logic Type: Positive logic (sinking input)
Communication Protocol: PROFIBUS DP
Baud Rate: Up to 12 Mbps (auto-detect)
Node Address: 1–99 (software configurable)
Protection Rating: IP67 (dust-tight, waterproof)
Isolation: 500VAC channel-to-ground; 1500VAC channel-to-bus
Dimensions (W×H×D): 130mm × 80mm × 35mm
Weight: 0.45kg (0.99lbs)
Operating Temperature: 0°C to +55°C (32°F to 131°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA, RoHS (industrial safety and EMC compliance)
Mounting: Direct wall/machine mounting or DIN rail (optional adapter)
Connection: M12 circular connectors (field I/O); PROFIBUS DP connector (network)

Key Features

IP67 Ruggedized Housing: Eliminates need for control cabinets; resists dust, water jets, and industrial contaminants for direct field deployment.
16-Point High-Density Input: Maximizes I/O count in compact footprint, reducing installation space and wiring complexity.
PROFIBUS DP High-Speed Communication: Supports up to 12 Mbps baud rate for real-time data exchange with PLCs and SCADA systems.
Positive Logic Sinking Inputs: Compatible with standard 24VDC sensors, switches, and pushbuttons for seamless field device integration.
Channel-to-Bus Isolation: 1500VAC isolation protects control network from field-side electrical noise, voltage spikes, and ground loops.
LED Diagnostic Indicators:
- PWR: Lights when 24VDC field power is applied.
- COM: Flashes during PROFIBUS DP communication activity.
- CH1–CH16: Individual LEDs illuminate when corresponding input channel is active.
Simplified Wiring: M12 connectors enable fast, tool-free field wiring and replacement, reducing maintenance time.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity for deployment in harsh manufacturing, process, and outdoor environments.
