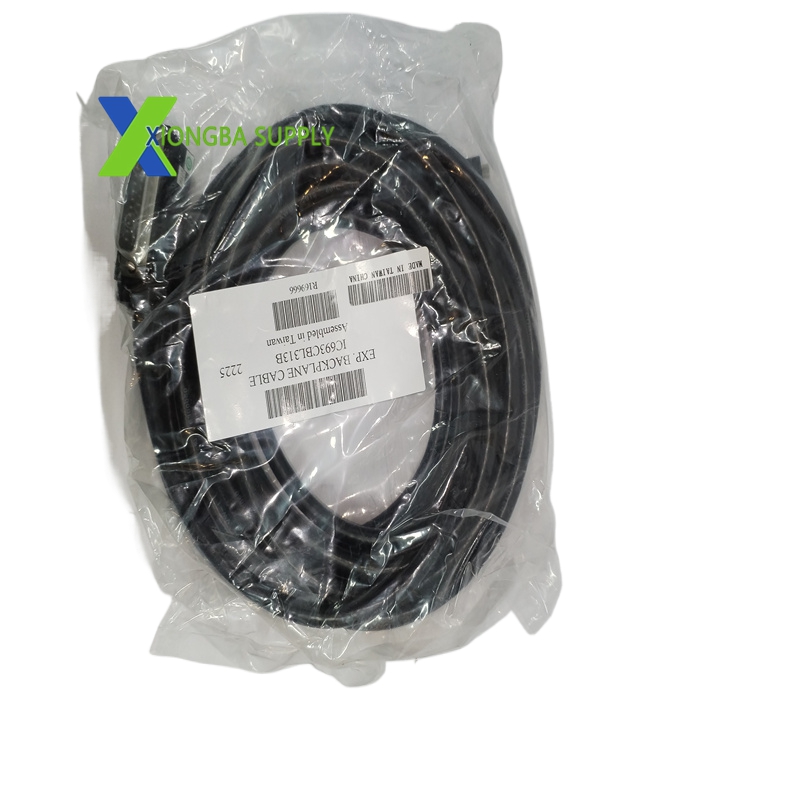

GE IC693CBL313 – Series 90-30 PLC I/O Bus Expansion Cable (Wye-Type, 8 Meters)

In stock

Product Introduction:

The IC693CBL313, manufactured by GE Fanuc (Emerson Automation), is a dedicated high-performance I/O bus expansion cable designed exclusively for the GE Series 90-30 PLC system. As a core connectivity component, it establishes reliable high-speed data links between the CPU baseplate and expansion/remote baseplates in a daisy-chain configuration, enabling seamless system scalability and real-time transmission of control signals, I/O data, and status feedback. Engineered with industrial-grade shielding and robust construction, it delivers exceptional noise immunity and durability for deployment in harsh industrial environments, serving as a critical backbone for modular PLC system expansion.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693CBL313
Series: GE Series 90-30 PLC System
Cable Type: Wye-style I/O bus expansion cable
Length: 25 feet (8 meters)
Connectors: One end – single 25-pin male D-sub; other end – dual 25-pin D-sub (1 male, 1 female)
Conductor: 28 AWG stranded copper wires
Shielding: Continuous foil and braid shielding (100% coverage)
Jacket Material: Flame-retardant PVC (industrial grade)
Data Transfer Rate: Up to 230 kbps
Maximum Daisy-Chain Cables: 7 cables per system
Max Distance (CPU to Furthest Expansion Base): 50 feet (15 meters)
Max Distance (CPU to Remote Base): 700 feet (213 meters)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CSA, CE (industrial safety and EMC compliance)
Protection Class: IP20
Weight: 0.88 kg (2.0 lbs)
Lifecycle Status: Discontinued (OEM obsolete; surplus/refurbished units available)

Key Features

Wye-Style Daisy-Chain Design: Enables sequential connection of multiple expansion/remote baseplates, supporting flexible system topology and simplified cabling.
Dual-Connector Termination: Features a unique dual 25-pin connector (male/female) on one end for direct daisy-chaining without additional adapters.
Enhanced EMI/RFI Shielding: Continuous foil and braid shielding eliminates electromagnetic interference, ensuring stable data transmission in high-noise industrial environments.
Industrial-Grade Durability: Flame-retardant PVC jacket and stranded copper conductors resist abrasion, oil, and chemical exposure for long-term reliability.
Plug-and-Play Compatibility: Directly compatible with all GE Series 90-30 CPU and expansion baseplates, requiring no additional configuration.
Robust Signal Integrity: Supports high-speed data transmission up to 230 kbps with zero signal degradation over the full 8-meter length.
Wide Environmental Tolerance: Operates reliably in extreme temperatures and humidity, suitable for factory floor, outdoor, and harsh process environments.
