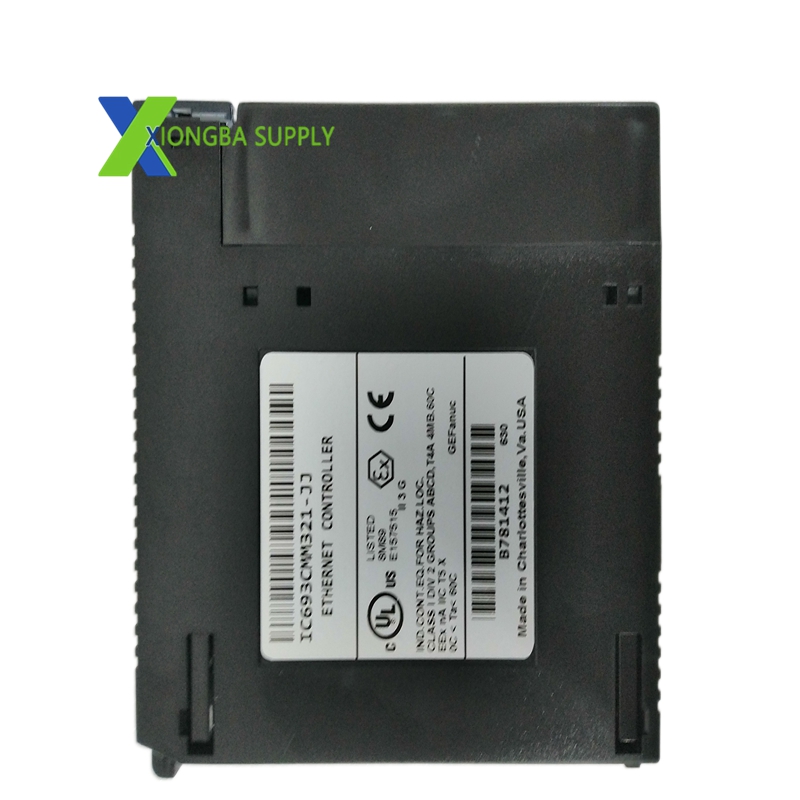

GE IC693CMM321 – Series 90-30 Ethernet Interface Communication Module

In stock

Product Introduction:

The IC693CMM321, designed by GE Fanuc (Emerson Automation), is a high-performance single-slot Ethernet communication module for the GE Series 90-30 PLC platform. It functions as a critical communication gateway, enabling the PLC to connect directly to industrial Ethernet networks for real-time data exchange with HMIs, SCADA systems, remote I/O, and other PLCs. It integrates Ethernet and serial communication ports, supporting multi-protocol data transmission to meet diverse industrial networking demands.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693CMM321
Series: Series 90-30 PLC System
Module Type: Ethernet Interface Communication Module
Ethernet Port: 1 × AAUI (Ethernet transceiver port), 10Mbps (original), 10/100Mbps adaptive (revised)
Serial Ports:
- 1 × RS-232 (RJ-11, Station Manager Port)
- 1 × RS-485 (15-pin D-sub, Software Loader Port)
Communication Protocols: TCP/IP, Modbus TCP, SRTP (Server/Client), SNMP
Concurrent Connections: Up to 16 SRTP server sessions
Data Transfer Rate: Ethernet: 10/100Mbps; Serial: 115.2kbps max
Power Supply: +5VDC from PLC backplane, 1.2A typical current consumption
Isolation: 1500VAC (1 minute) channel-to-logic, 250VAC continuous
Dimensions (W×H×D): 90mm × 60mm × 25mm (single slot)
Weight: 0.42kg approximately
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CE, RoHS, IEC 61131-2 compliance
Protection Class: IP20
Mounting: Installs directly in Series 90-30 PLC baseplate (single slot)

Key Features

Multi-Protocol Communication: Supports TCP/IP, Modbus TCP, and SRTP protocols, enabling seamless integration with third-party devices and systems.
Client/Server Capability: Operates as both a client (initiates communication via ladder logic COMMREQ blocks) and a server (responds to requests from HMIs/SCADA).
Dual Serial Ports: RS-232 for module configuration and RS-485 for program loading and serial device communication.
LED Diagnostic Indicators: OK (module status), LAN (Ethernet activity), SER (serial communication) LEDs for real-time fault monitoring.
Non-Volatile Memory: Retains network configuration settings during power cycles, eliminating reconfiguration needs.
Daisy-Chain Support: AAUI ports allow daisy-chaining up to 8 devices without additional network switches.
Robust Industrial Design: Withstands vibration, shock, and wide temperature ranges for deployment in harsh environments.
