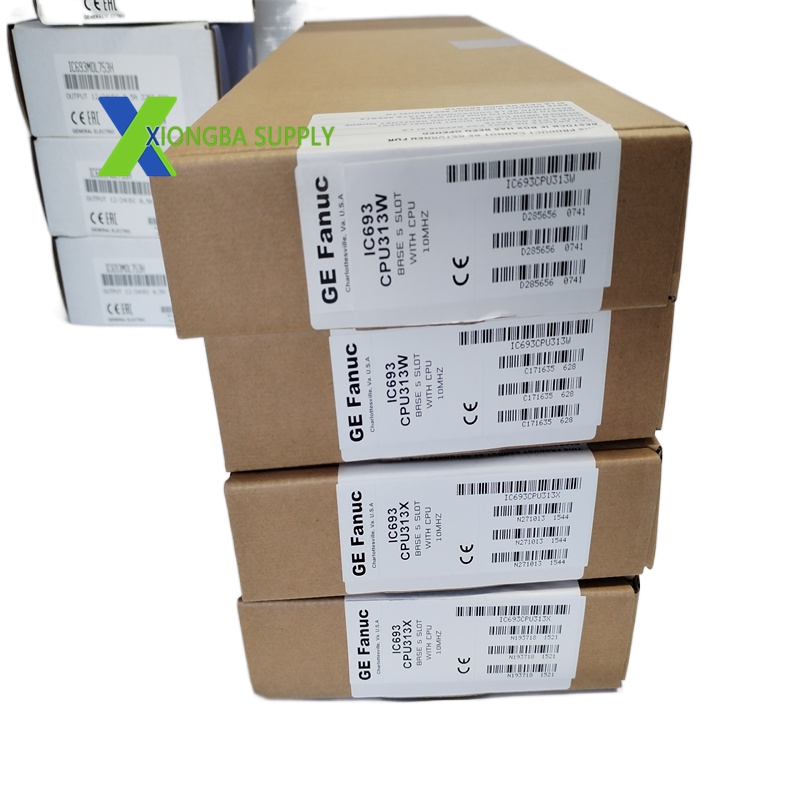

GE IC693CPU313 – GE Fanuc Series 90-30 Embedded Turbo CPU Baseplate (5-Slot)

In stock

Product Introduction:

The IC693CPU313 is an integrated CPU baseplate from GE Fanuc’s Series 90-30 PLC platform, designed as a compact, all-in-one control solution for small-scale industrial automation. It integrates a turbo CPU, memory, and a 5-slot I/O baseplate into a single unit, eliminating the need for a separate CPU module. Optimized for cost-effective, reliable performance in basic to intermediate control applications, it serves as the central processing unit for executing user programs, handling I/O operations, and enabling communication with external devices in rugged industrial environments.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693CPU313
Series: Series 90-30 PLC System
Processor Type: 80188 turbo embedded CPU
Processor Speed: 10 MHz
Baseplate Slots: 5 integrated slots for I/O/option modules
User Program Memory: 12KB maximum (6KB prior to firmware version 7)
Register Memory: 2KB (1024 registers)
Scan Rate: 0.6ms per 1K Boolean logic contacts (typical)
Discrete I/O Capacity: 160 total combined input (%I) / output (%Q) points
Analog I/O Capacity: 64 words analog input, 32 words analog output
Communication Port: 1 built-in RS-485 serial port (supports SNP/SNPX slave protocols)
Power Consumption: 430mA @ 5VDC (backplane)
Memory Backup: Optional lithium battery (retains RAM program/data during power loss)
Dimensions (W×H×D): 263mm × 58mm × 28mm
Weight: 0.5kg
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5%–95% (non-condensing)
Certifications: CE, UL, CSA
Mounting: DIN rail or panel mount
Status Indicators: RUN, STOP, I/O Fault, Battery Low LEDs

Key Features

Integrated All-in-One Design: Combines CPU, memory, and 5-slot baseplate into a single unit for space-saving, cost-efficient deployment.
Turbo Processing Performance: 10 MHz 80188 CPU delivers fast logic execution with a 0.6ms/1K scan rate for real-time control.
Compact I/O Expansion: 5 integrated slots support direct connection of Series 90-30 I/O and intelligent modules for localized expansion.
Reliable Memory Retention: Lithium battery backup preserves user programs and data during power outages.
Simplified Communication: Built-in RS-485 port enables connection to HMIs, SCADA systems, and other PLCs via SNP/SNPX protocols.
Diagnostic LED Indicators: Real-time status monitoring for system operation, faults, and battery health.
Robust Industrial Durability: Wide temperature/humidity tolerance and compliance with industrial safety standards for harsh environments.
Password Protection: Multi-level security to prevent unauthorized program access or modification.
