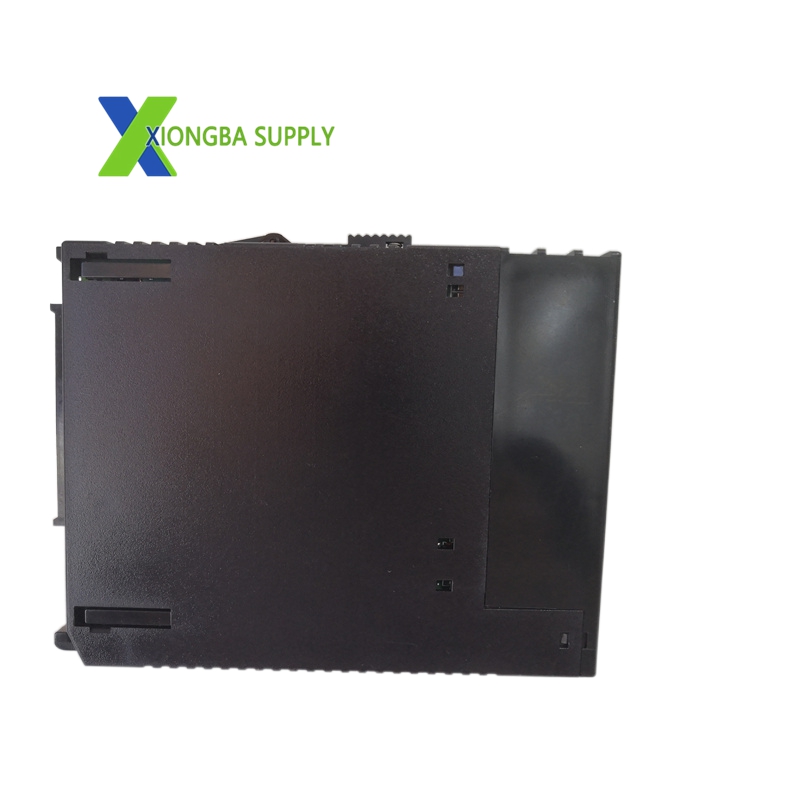

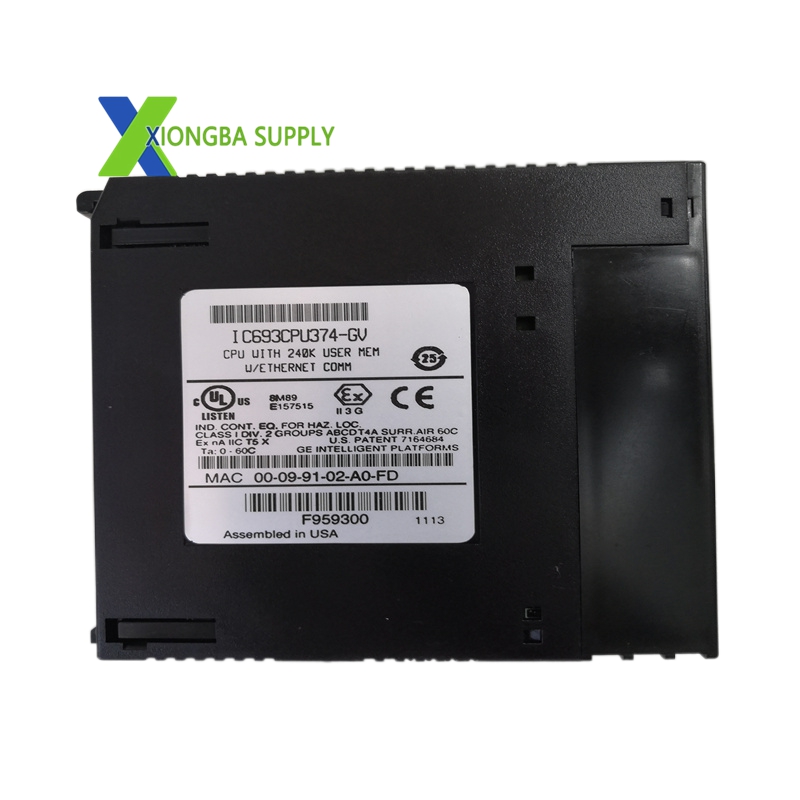

GE IC693CPU374 – GE Fanuc Series 90-30 High-Performance Ethernet CPU Module

In stock

Product Introduction:

The IC693CPU374 is a high-performance 32-bit CPU module designed by GE Fanuc (now part of Emerson Automation) for the Series 90-30 PLC platform. Serving as the core of industrial control systems, it executes user programs, processes I/O data, and manages network communication. Equipped with a powerful 133 MHz processor, 240 KB of user memory, and dual auto-sensing Ethernet ports, it delivers exceptional speed, reliability, and connectivity for complex automation tasks. This single-slot module integrates advanced features like floating-point math and a built-in Ethernet switch, making it ideal for real-time control and high-volume data exchange in demanding industrial environments.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693CPU374
Series: Series 90-30 PLC System
Processor: AMD SC520 (586-class) 32-bit RISC processor
Clock Speed: 133 MHz
User Memory: 240 KB (configurable program/data memory)
I/O Capacity: Supports up to 2048 I/O points (4K)
Scan Rate: 0.15 ms per 1K Boolean logic contacts (typical)
Floating-Point Math: Supported (32-bit precision)
Communication Interfaces:
- Ethernet: 2 × 10/100 Mbps auto-sensing ports with built-in switch (Modbus TCP/IP)
- Serial: RS-485 (via power supply, Modbus RTU)
Programming Languages: Ladder Logic (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC) (IEC 61131-3 compliant)
Power Consumption: 7.4 W @ 5 VDC (1.51 A)
Backplane Speed: 5 Mbps (synchronous data transfer)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Dimensions (W×H×D): 110 mm × 120 mm × 40 mm
Weight: 0.5 kg (1.1 lbs)
Certifications: CE, UL, CSA
Status Indicators: RUN, STOP, FAULT, Ethernet Link/Activity LEDs
Redundancy: Supports cold standby configuration (with IC693CPU374 backup)

Key Features

Powerful 32-Bit Processing: 133 MHz AMD SC520 processor delivers fast execution of complex control logic and data manipulation.
Dual Ethernet Ports with Integrated Switch: Eliminates the need for an external network switch, enabling daisy-chaining of PLCs and devices for cost-effective network topology.
High Memory Capacity: 240 KB of configurable user memory supports large programs, data logging, and recipe storage.
High I/O Support: Controls up to 2048 I/O points, suitable for large-scale automation systems.
Real-Time Performance: 0.15 ms scan rate ensures precise, responsive control of dynamic processes.
Floating-Point Arithmetic: Executes complex mathematical calculations for process control, motion control, and data analysis.
