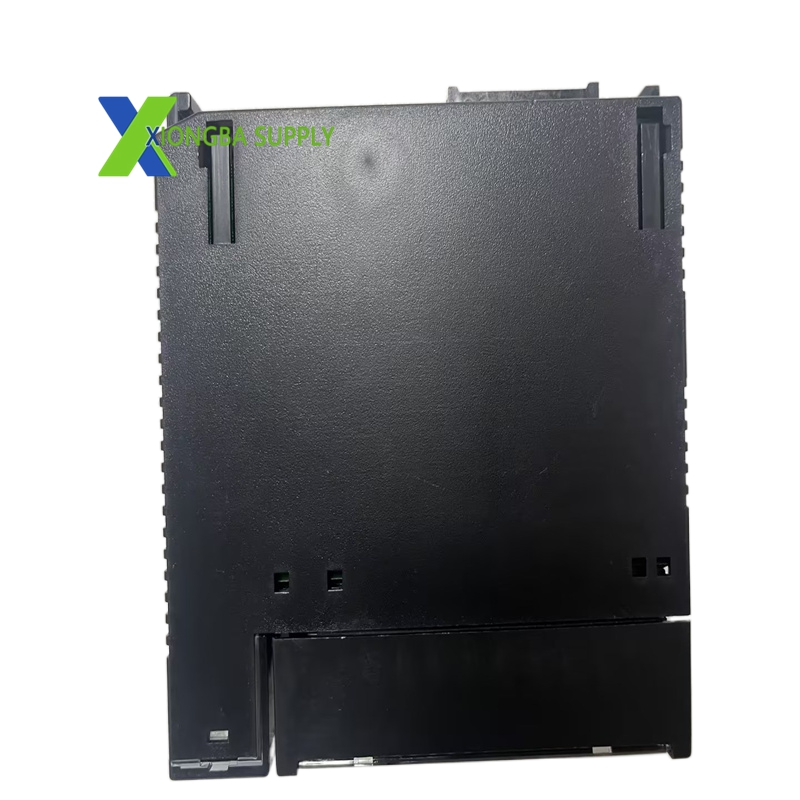

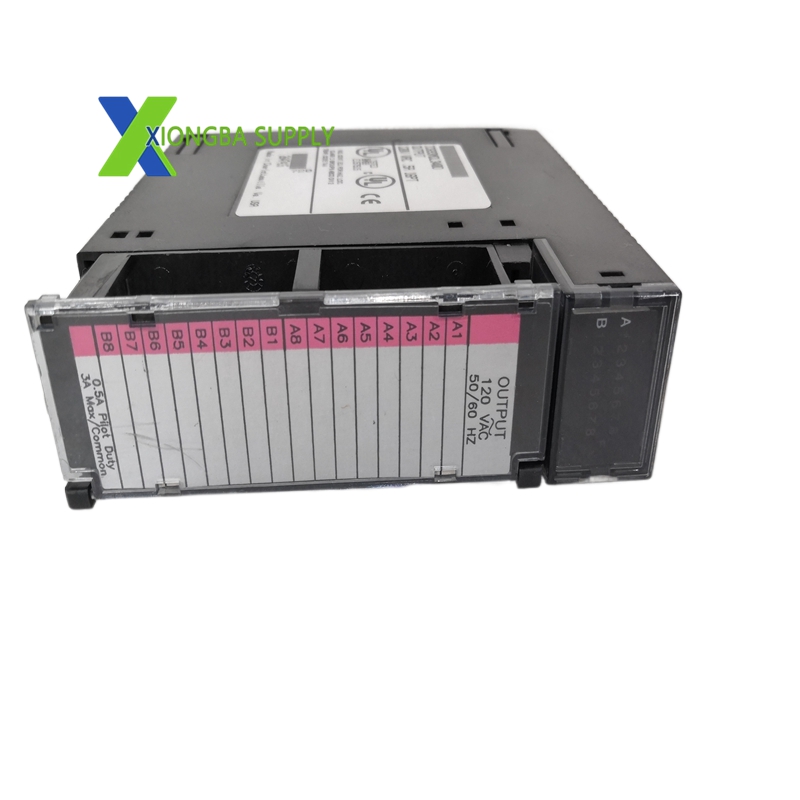

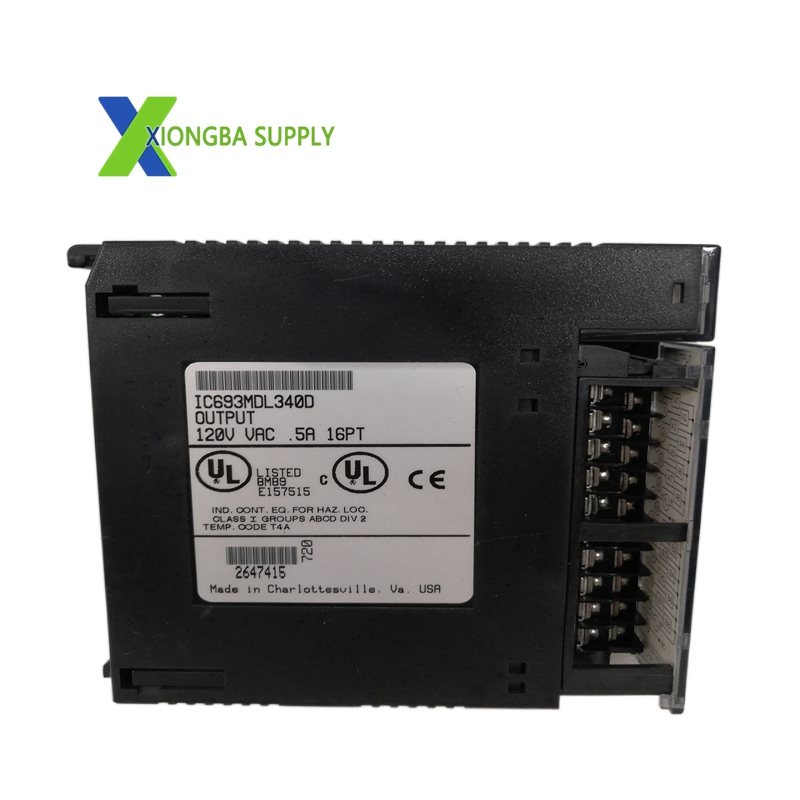

GE IC693MDL340 – Series 90-30 16-Point 120VAC Triac Discrete Output Module

In stock

Product Introduction:

The IC693MDL340, designed by GE Fanuc (now Emerson Automation), is a high-density solid-state AC output module for the GE Series 90-30 PLC platform. It converts low-voltage DC control signals from the PLC into 120VAC output signals to drive AC-powered field devices. With 16 triac-based outputs organized into 2 isolated groups, it delivers fast, reliable, and noise-resistant switching for industrial automation systems, serving as a critical interface between digital controllers and AC loads in harsh environments.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693MDL340
Series: GE Series 90-30 PLC System
Module Type: Discrete AC Output Module (Triac)
Output Channels: 16 points (2 isolated groups of 8 channels each)
Nominal Voltage: 120VAC
Operating Voltage Range: 85–132VAC
Frequency: 47–63Hz
Continuous Current Per Point: 0.5A
Continuous Current Per Group: 3A
Total Module Current: 4A
Inrush Current: 20A (per cycle, maximum)
Minimum Load Current: 50mA
Output Leakage Current: ≤2mA (at 120VAC)
On-State Voltage Drop: <1.5V (at rated load)
Response Time: On: <1ms; Off: <½ AC cycle
Backplane Power Consumption: 5VDC at 315mA (max, all outputs ON)
Isolation: 1500VAC (field-to-logic, 1min); 500VAC (between groups)
LED Indicators: 16 individual status LEDs (one per channel)
Fuse Protection: 3A fuse per group (external or integrated)
RC Snubbers: Integrated for transient noise suppression
Dimensions (W×H×D): 98mm × 127mm × 51mm
Weight: 0.5kg (1.1lbs)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CE, RoHS
Mounting: DIN rail or panel mount (via Series 90-30 baseplate)

Key Features

16-Channel High-Density Output: Optimizes cabinet space with 16 triac outputs for efficient AC load control.
Solid-State Triac Technology: Ensures long service life, no mechanical wear, and fast switching (1ms ON response).
Dual Group Isolation: 2 electrically isolated groups (8 channels each) minimize cross-talk and enhance system safety.
Built-In Protection: RC snubbers suppress voltage spikes; group fuses simplify fault isolation and prevent overload damage.
Individual Channel Diagnostics: Front-panel LEDs provide real-time ON/OFF status for each output, enabling quick troubleshooting.
