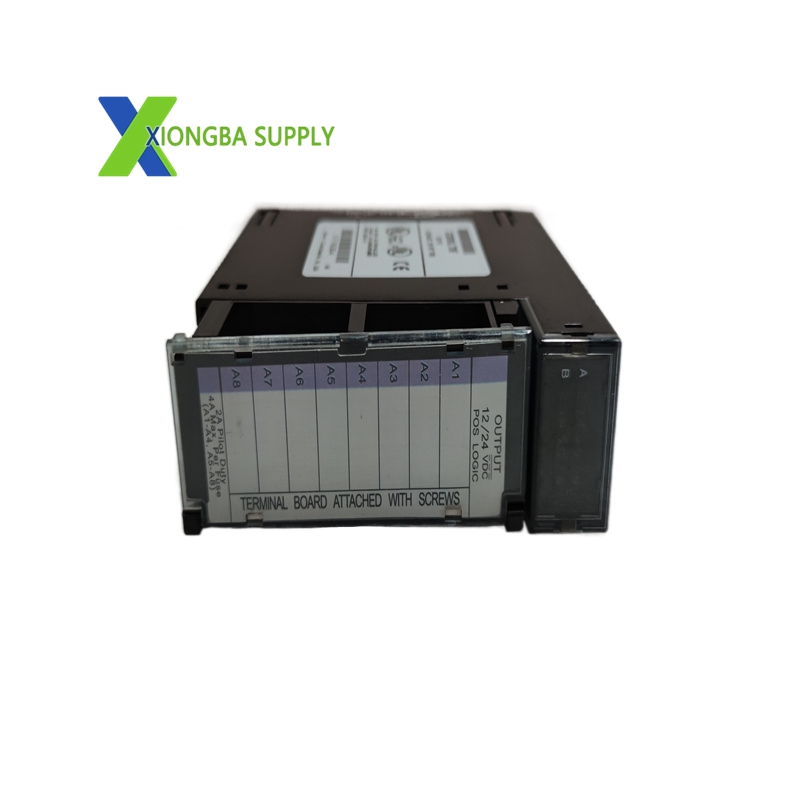

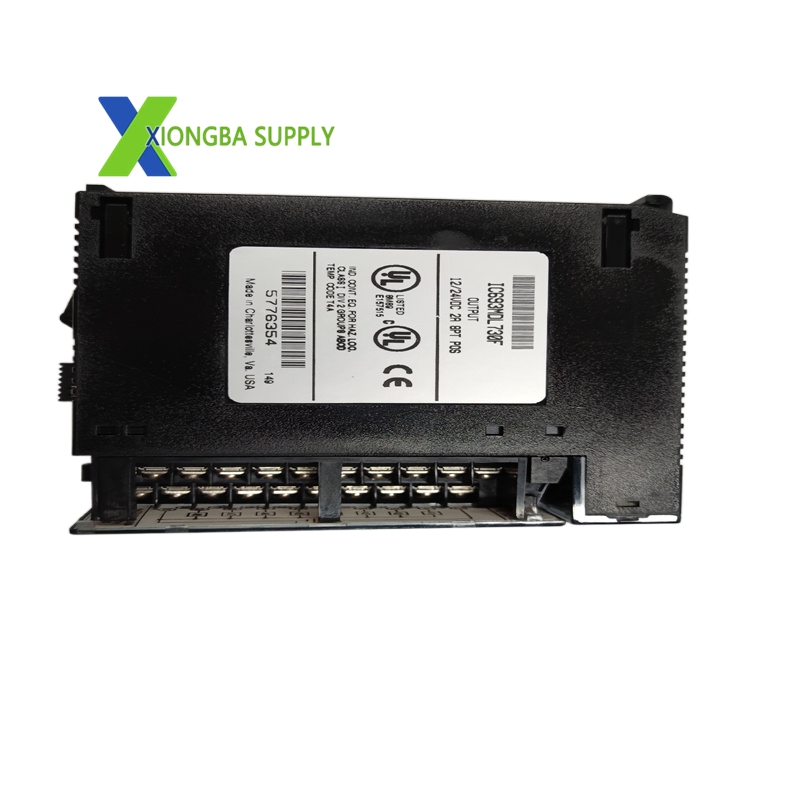

GE IC693MDL730 – Series 90-30 12/24VDC Positive Logic Discrete Output Module (8 Channels)

In stock

Product Introduction:

The IC693MDL730, manufactured by General Electric (GE Fanuc), is a high-density discrete output module designed for the GE Series 90-30 PLC system. It serves as an interface between the PLC’s digital logic and field-level DC loads, converting low-voltage control signals into 12/24VDC power outputs to drive solenoids, relays, motor starters, and indicator lights. Engineered for industrial durability and precise on/off control, it delivers reliable performance in harsh manufacturing and process environments.

Technical Specifications

Manufacturer: General Electric (GE Fanuc / Emerson Automation)
Model: IC693MDL730
Series: GE Fanuc Series 90-30 PLC System
Module Type: Discrete DC Output Module
Output Channels: 8 single-ended sourcing outputs (one group with common power)
Output Voltage Range: 12–24VDC (+20% / –15% tolerance)
Output Logic: Positive logic (sources current to loads)
Rated Output Current: 2A maximum per channel
Fuse Current Rating: 2A @ 60°C; 4A @ 50°C (per fuse)
Inrush Current: 9.4A for 10ms maximum
Output Voltage Drop: 1.2V maximum (on-state)
Off-State Leakage Current: 1mA maximum
Response Time: 2ms maximum (on/off)
Isolation: 1500VAC (1 minute) between field and logic sides
Backplane Power: 5VDC at 40mA maximum
External Field Power: 12–24VDC (required for load operation)
Dimensions (W×H×D): 70mm × 130mm × 135mm
Weight: 0.34kg (0.75lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CSA, CE (industrial safety and EMC compliance)
Protection Class: IP20
Mounting: Installs in any I/O slot of 5/10-slot Series 90-30 baseplates

Key Features

8-Channel Sourcing Outputs: Delivers positive logic current sourcing for direct connection to DC loads.
High Current Drive: 2A per channel rating supports solenoids, relays, and small motor starters.
Wide Voltage Compatibility: Operates with 12–24VDC field power for flexible system integration.
Electrical Isolation: 1500VAC isolation protects PLC logic from field-side noise and voltage spikes.
LED Status Indicators: Individual LEDs for each channel display on/off status for quick diagnostics.
Fast Response: 2ms on/off response time enables precise control of high-speed sequences.
Overcurrent Protection: Integrated fuses safeguard the module and loads from short circuits.
Robust Construction: Industrial-grade design withstands vibration, temperature fluctuations, and electrical interference.
Hot-Swappable: Supports replacement during system operation for minimal downtime.
