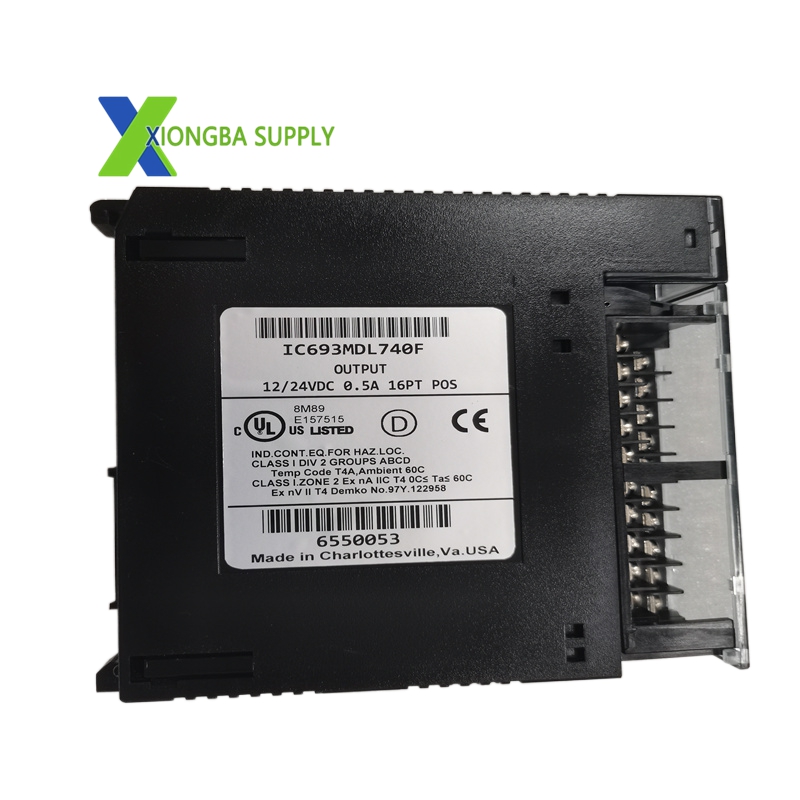

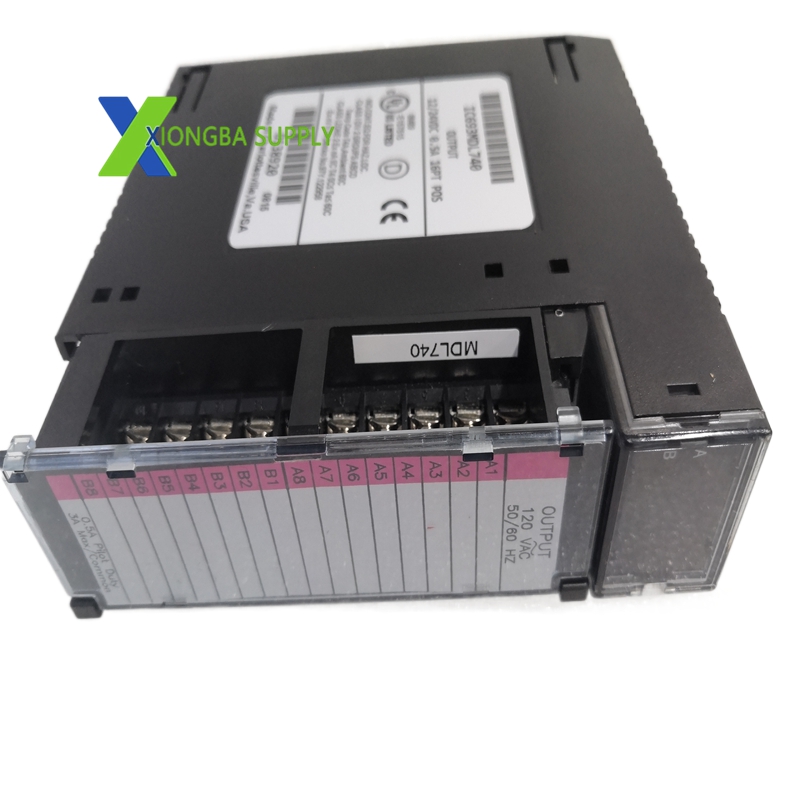

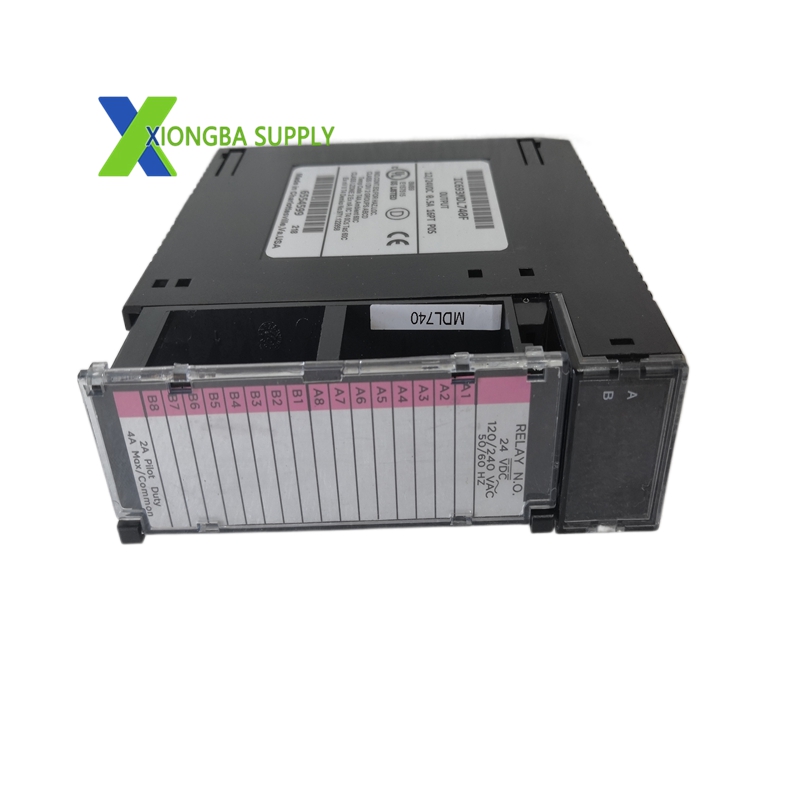

GE IC693MDL740 – Series 90-30 12/24VDC Positive Logic Sourcing Output Module (16 Points)

In stock

Product Introduction:

The IC693MDL740 is a high-density digital output module manufactured by GE Fanuc (Emerson Automation) for the Series 90-30 PLC system. It serves as an interface between the PLC’s internal logic and external DC loads, converting low-level control signals into 12–24VDC sourcing outputs. With 16 channels grouped into two isolated banks of 8, it delivers reliable, high-speed switching for industrial devices in factory automation, process control, and machine building applications.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693MDL740
Series: Series 90-30 PLC System
Module Type: Digital DC Output Module (Sourcing / Positive Logic)
Output Channels: 16 points (2 groups × 8 channels, isolated)
Output Voltage Range: 12–24VDC (+20% / –15%)
Output Current: 0.5A max per channel; 2A max per common group
Backplane Power: 5VDC at 110mA max (all outputs ON)
Isolation: 1500VAC (1 min) field-to-logic; 500VAC group-to-group
Response Time: ≤2ms (ON); ≤2ms (OFF)
Inrush Current: 4.78A for 10ms (per channel)
Off-State Leakage: ≤1mA per channel
Output Voltage Drop: ≤1V at rated current
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: –40°C to +85°C (–40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Dimensions (W×H×D): 36mm × 130mm × 135mm
Weight: 0.3kg (0.66lbs)
Certifications: CE, UL, CSA
Protection Class: IP20
Mounting: DIN rail or Series 90-30 I/O carrier

Key Features

16-Channel High-Density Sourcing Output: Provides 12–24VDC positive logic (current sourcing) outputs, ideal for driving DC loads connected to ground.
Group Isolation & Protection: Two electrically isolated groups reduce cross-group noise; 1500VAC field-to-logic isolation safeguards the PLC backplane.
Fast Switching Speed: 2ms maximum response time supports high-speed machine sequencing and real-time control.
LED Status Indicators: Individual LEDs on the front panel display ON/OFF status for each channel, enabling immediate visual diagnostics.
