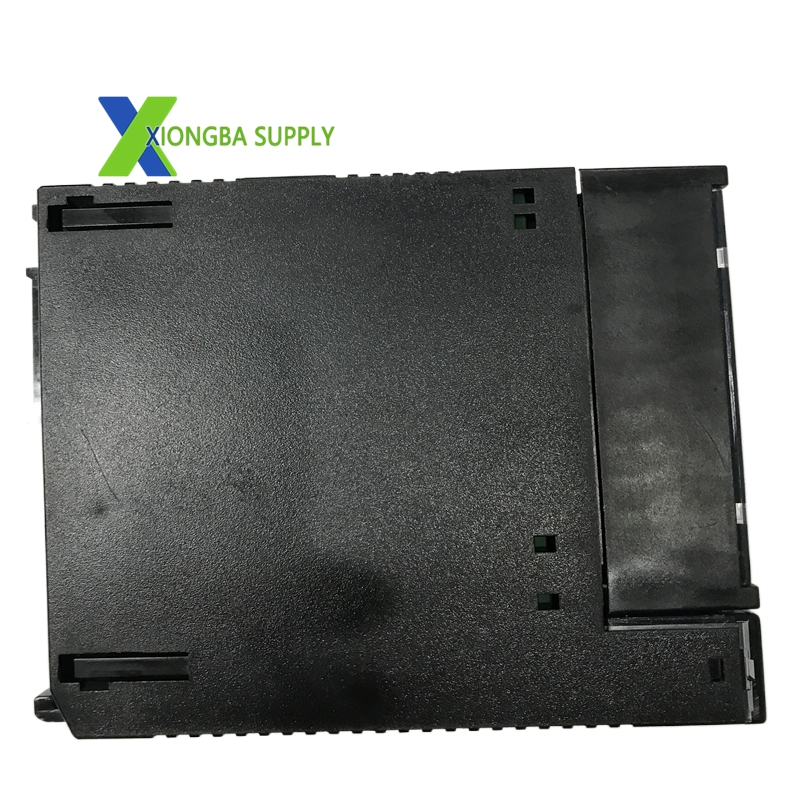

GE IC693MDL742 – Series 90-30 12/24VDC Positive Logic Discrete Output Module with Electronic Short Circuit Protection (ESCP)

In stock

Product Introduction:

The IC693MDL742, designed by GE Fanuc (now part of Emerson Automation), is a high-density discrete output module for the GE Series 90-30 PLC system. It provides 16 channels of positive logic DC outputs, converting digital control signals from the PLC into 12/24VDC power to drive industrial field devices such as relays, contactors, solenoids, and small DC motors. Integrated with Electronic Short Circuit Protection (ESCP), it ensures robust and reliable operation in harsh industrial environments, serving as a critical component for digital control in manufacturing and process automation.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693MDL742
Series: GE Series 90-30 PLC System
Module Type: Discrete DC Output Module
Output Channels: 16 channels (2 groups of 8 channels each)
Output Logic: Positive logic (current sourcing)
Output Voltage Range: 12–24VDC (+20% / –15%)
Output Current: 1.0A per channel (maximum)
Group Current Rating: 4A per group at 50°C; 3A per group at 60°C
Inrush Current: 5.2A for 10ms duration
Voltage Drop: 1.2V maximum (on-state)
Response Time: ≤2ms (on/off, maximum)
Off-State Leakage Current: ≤1mA per channel
Backplane Current Draw: 130mA (all outputs active)
External Power Supply: 12/24VDC (user-supplied)
Isolation: 500V RMS (field-to-logic/system)
Dimensions (W×H×D): 35mm × 130mm × 135mm
Weight: 0.3kg (0.66lbs)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Relative Humidity: 5%–95% (non-condensing)
Certifications: UL, CE, cUL (industrial safety and EMC compliance)
Protection Class: IP20
Mounting: Compatible with 5/10-slot baseplates in Series 90-30 PLC systems

Key Features

16-Channel High-Density Output: Maximizes I/O capacity in a compact form factor, reducing cabinet space and wiring complexity.
Positive Logic Sourcing Output: Simplifies wiring for common-ground DC devices, compatible with standard industrial sensor and actuator wiring practices.
Electronic Short Circuit Protection (ESCP): Two independent ESCP circuits (each protecting 8 channels) shut down affected groups during short circuits, with a red LED indicator for fault diagnosis; resets via external power cycle.
Fast Response Time: ≤2ms on/off delay supports high-speed digital control for dynamic industrial processes.
LED Diagnostic Indicators: Individual status LEDs for each output channel (on/off status) and a group fault LED for ESCP events, enabling real-time monitoring and quick troubleshooting.
