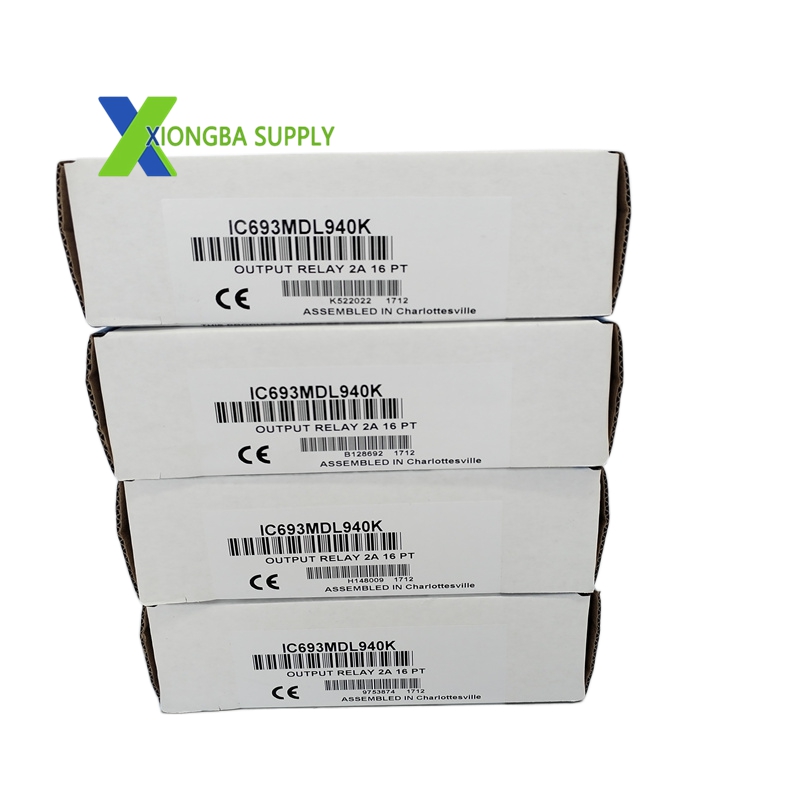

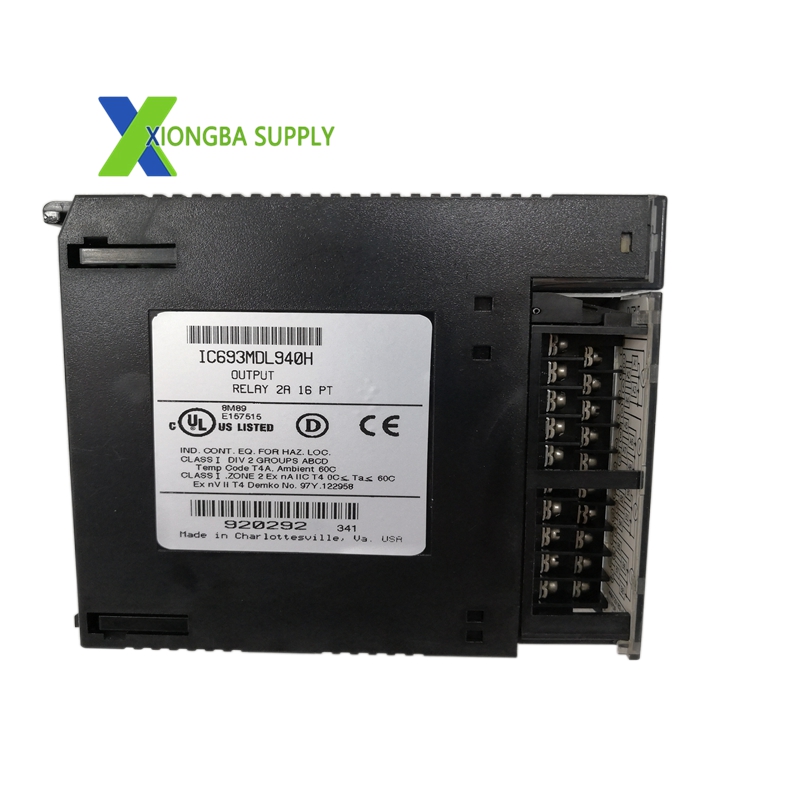

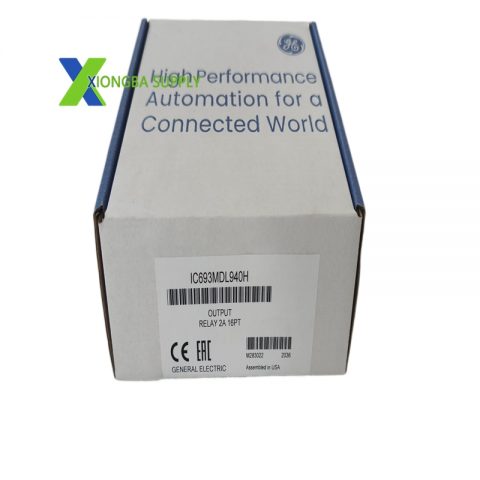

GE IC693MDL940 Series 90-30 16-Point Normally Open Electromechanical Relay Discrete Output Module

In stock

Product Introduction:

The IC693MDL940 is a high-reliability electromechanical relay output module manufactured by GE Fanuc for Series 90-30 PLC control systems. It converts digital logic signals from PLC CPU into mechanical contact switching actions to drive AC and DC field loads simultaneously. The module adopts 4 independent isolated groups with 4 NO relay contacts per group, realizing complete electrical isolation between control logic and field equipment. It delivers stable long-cycle switching, strong load adaptability and safe fault isolation performance, matching diverse low-power industrial discrete control scenarios.

Technical Specifications

Manufacturer: GE Fanuc General Electric
PLC Series: Series 90-30
Module Type: Electromechanical Relay Discrete Output
Total Output Points: 16 Normally Open contacts
Group Structure: 4 isolated groups, 4 channels per group
Rated Field Voltage: 24VDC, 120VAC / 240VAC
Operating Voltage Range: 5–30VDC, 5–250VAC 50/60Hz
Maximum Current Per Single Point: 2A pilot duty
Maximum Current Per Common Terminal: 4A
Minimum Valid Load Current: 10mA
Maximum Inrush Impact Current: 5A
Switch Response Time: 15ms ON, 15ms OFF
Isolation Grade: 1500VAC logic-to-field isolation; 500VAC inter-group isolation
Backplane Power Consumption: 7mA @ 5VDC; 135mA @ 24VDC relay bus
Overall Dimensions: 92mm × 118mm × 22mm
Module Weight: 0.2kg
Operating Ambient Temperature: 0°C to 60°C
Storage Temperature Range: -40°C to 85°C
Working Humidity: 5%–95% non-condensing
Safety Certifications: CE, UL Industrial Standard
Installation Mode: Single-slot insertion into Series 90-30 standard I/O rack

Key Functional Features

Universal AC&DC Dual Load Compatibility: Fully supports both direct current and alternating current field loads without additional conversion circuits
Multi-Group Electrical Isolation: Independent common terminals for each group allow different voltage levels to run simultaneously in one module
High-Strength Mechanical Relay Contacts: Optimized contact material extends service life under frequent inductive load switching
Independent Status LED Indicators: 16 individual LEDs display real-time on/off state of each output channel for rapid fault diagnosis
Built-In Surge Suppression Circuits: RC absorption for AC loads and freewheeling diodes for DC loads protect contacts from arc damage
Single-Slot Compact Design: Occupies only one rack slot, greatly improving cabinet space utilization
Strong Anti-Interference Performance: High-voltage isolation completely shields PLC logic from field voltage surge and electromagnetic interference

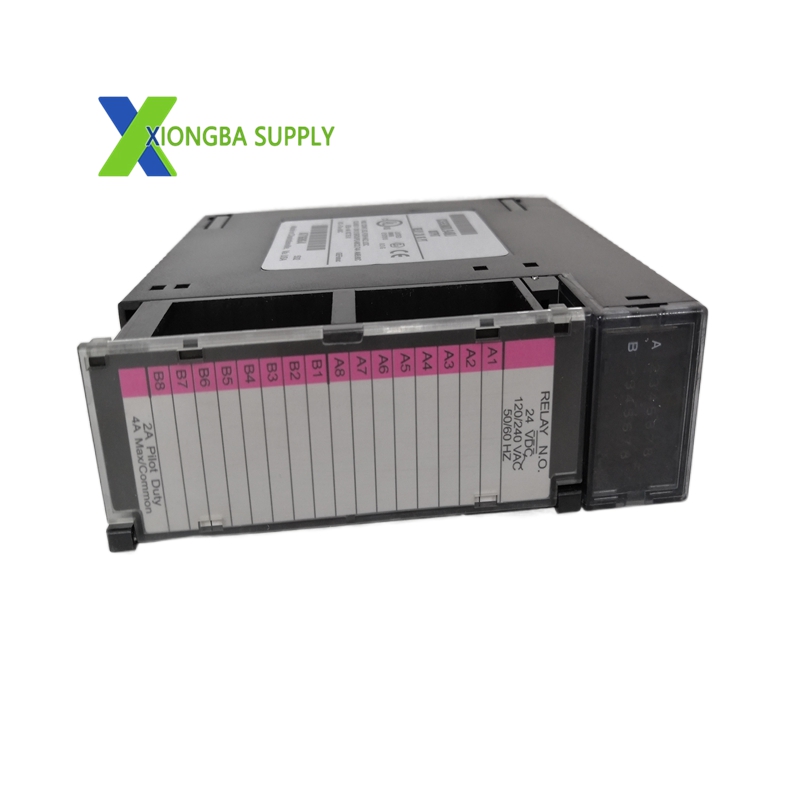

Standard Screw Terminal Wiring: Convenient field cable connection and stable long-term operation in harsh industrial environments
