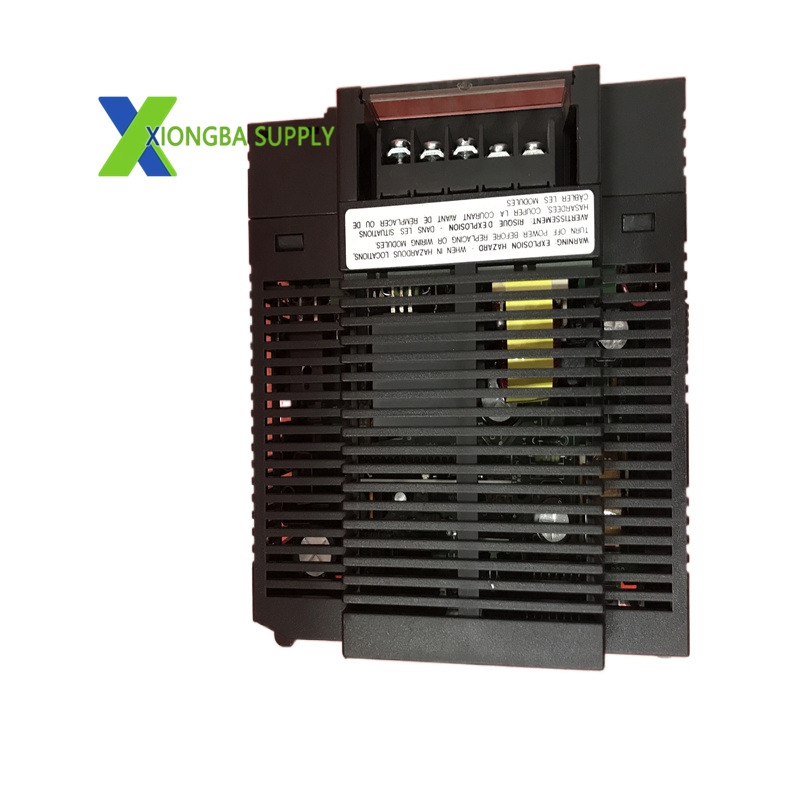

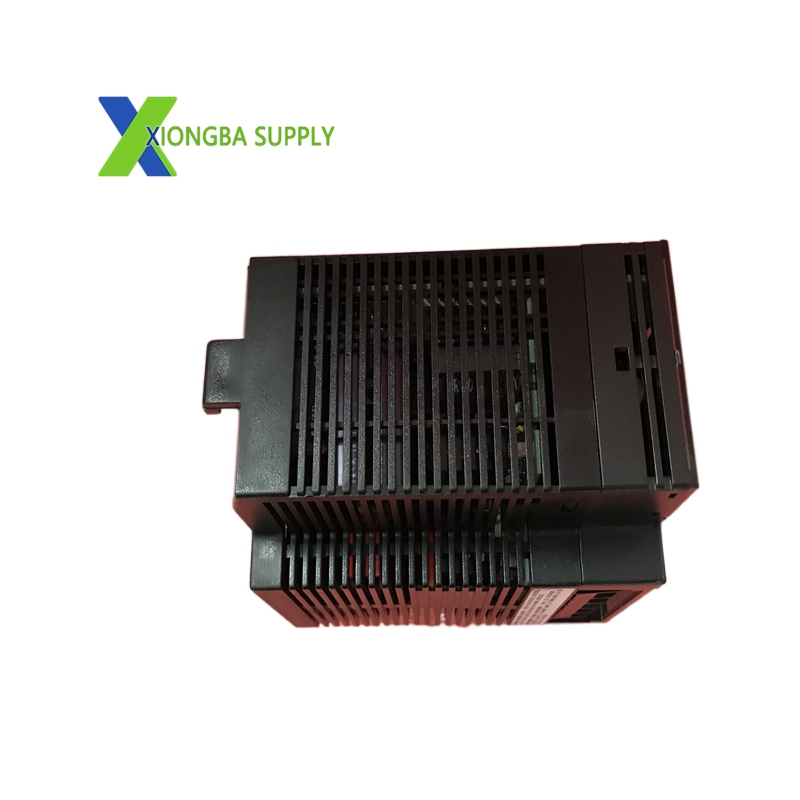

Technical Specifications
- Manufacturer: GE Fanuc (Emerson Automation)
- Model: IC693PWR322F
- Series: Series 90-30 PLC System
- Module Type: DC Input Power Supply
- Input Voltage: 24VDC ±20% (19.2–28.8VDC)
- Outputs:
- +5VDC @ 3A (logic power)
- +24VDC @ 1A (I/O power)
- Max Output Power: 20W
- Efficiency: ≥75% at full load
- Holdup Time: ≥10ms
- Protection: Overvoltage, overcurrent, short‑circuit
- Backplane Current: 120mA @ 5VDC
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Certifications: CE, UL 508, CSA
- Dimensions: 110mm × 80mm × 40mm
- Weight: 0.48kg
Key Features
- DC‑Only Input: Optimized for 24VDC industrial environments, compatible with battery, solar, and DC distribution systems.
- Compact Design: Lower power rating for small PLC systems with limited I/O requirements.
- Regulated Outputs: Stable +5VDC and +24VDC outputs for reliable operation of PLC logic and I/O modules.
- Comprehensive Protection: Integrates overvoltage, overcurrent, and short‑circuit protection to safeguard the PLC and connected modules.
- LED Status Indicator: Visual power‑good confirmation for quick operational verification.
- Hot‑Swappable: Allows replacement during system operation without shutting down the PLC, minimizing downtime.
- Rugged Construction: Withstands industrial environmental conditions for long‑term reliability.
Application Scenarios
- Remote/Off‑Grid Systems: Powers PLCs in solar‑powered, wind‑powered, or battery‑backed installations.
- Transportation: Used in railway, marine, and vehicle‑mounted automation systems with DC power infrastructure.
- Telecom Infrastructure: Powers control systems in DC‑powered telecom sites and data centers.
- Mobile Machinery: Provides reliable power for construction equipment, agricultural machinery, and other mobile industrial equipment.
- Small DC‑Powered Automation: Suitable for small‑scale automation projects in DC‑powered industrial environments.
