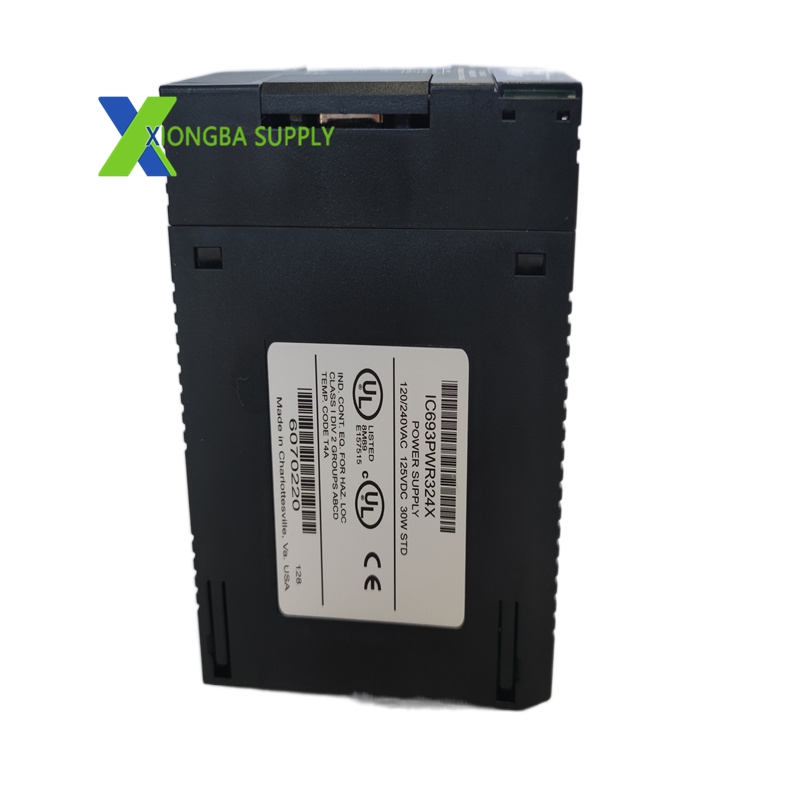

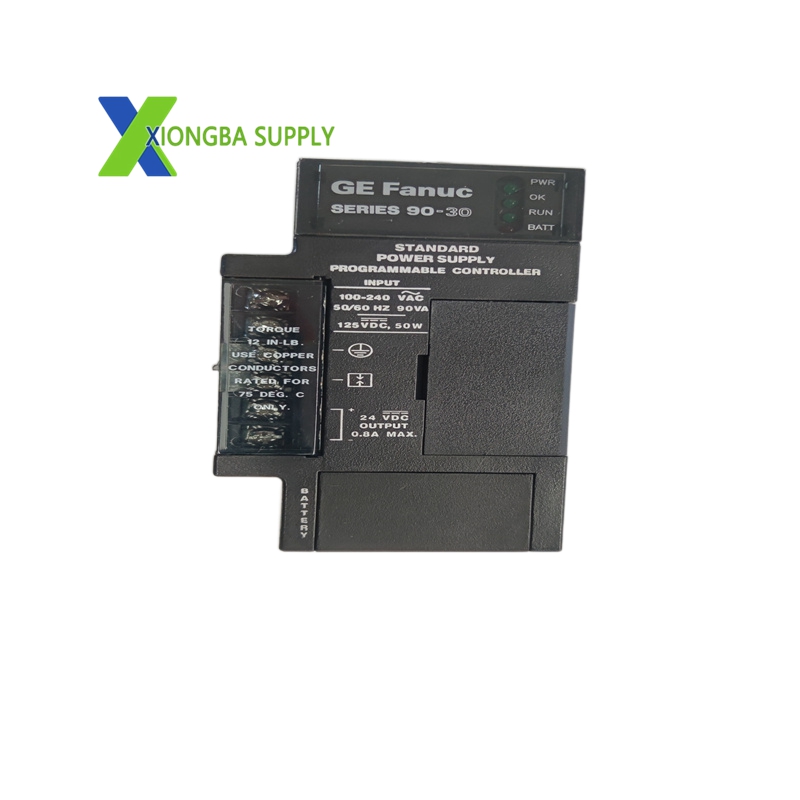

GE IC693PWR324 – Series 90-30 High‑Efficiency AC Power Supply Module

In stock

Product Introduction:

The IC693PWR324 is a high‑efficiency AC power supply module designed for the Series 90-30 PLC system, offering enhanced energy efficiency, expanded input voltage range, and improved performance compared to standard models. It converts universal AC input into three regulated outputs: +5VDC for PLC logic, +24VDC for I/O modules, and isolated +24VDC for relay power, delivering stable, noise‑free power for energy‑conscious industrial automation systems.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693PWR324
Series: Series 90-30 PLC System
Module Type: High‑Efficiency AC Power Supply
Input Voltage: 85–264VAC (50/60Hz)
Outputs:
- +5VDC @ 4A (logic power)
- +24VDC @ 1.5A (I/O power)
- Isolated +24VDC @ 0.5A (relay power)
Max Output Power: 30W
Efficiency: ≥85% at full load
Holdup Time: ≥25ms
Overvoltage Protection: 6.4–7V on +5VDC
Overcurrent Protection: 4A max on +5VDC
Short‑Circuit Protection: Automatic shutdown and recovery
Backplane Current: 150mA @ 5VDC
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL 508, CSA, RoHS
Dimensions: 110mm × 80mm × 40mm
Weight: 0.52kg

Key Features

High Efficiency: Reduces energy consumption and heat generation, lowering operational costs and improving system reliability.
Universal AC Input: Compatible with global power grids (85–264VAC) for worldwide deployment.
Enhanced Holdup Time: Maintains power during brief voltage sags and interruptions, ensuring system stability.
Triple Regulated Outputs: Provides dedicated, isolated power for logic, I/O, and relay circuits, eliminating noise interference.
RoHS Compliant: Environmentally friendly design with reduced hazardous materials.
LED Status Indicator: Visual power‑good confirmation for quick operational verification.
Hot‑Swappable: Allows replacement during system operation without shutting down the PLC, minimizing downtime.
Rugged Industrial Design: Withstands vibration, shock, and wide temperature ranges for reliable operation in harsh environments.

Application Scenarios

Energy‑Conscious Facilities: Ideal for manufacturing plants aiming to reduce energy costs and improve sustainability.
24/7 Operations: Suitable for continuous‑run systems (e.g., water treatment, data centers, pharmaceutical manufacturing).
Industrial Control Panels: Powers small‑to‑medium automation systems in manufacturing, process control, and building automation applications.
Machine Control: Provides stable power for standalone machines and production equipment in automotive, food and beverage, and consumer goods manufacturing.
General Industrial Automation: Suitable for a wide range of applications requiring high‑efficiency, reliable power for PLCs and I/O modules.
