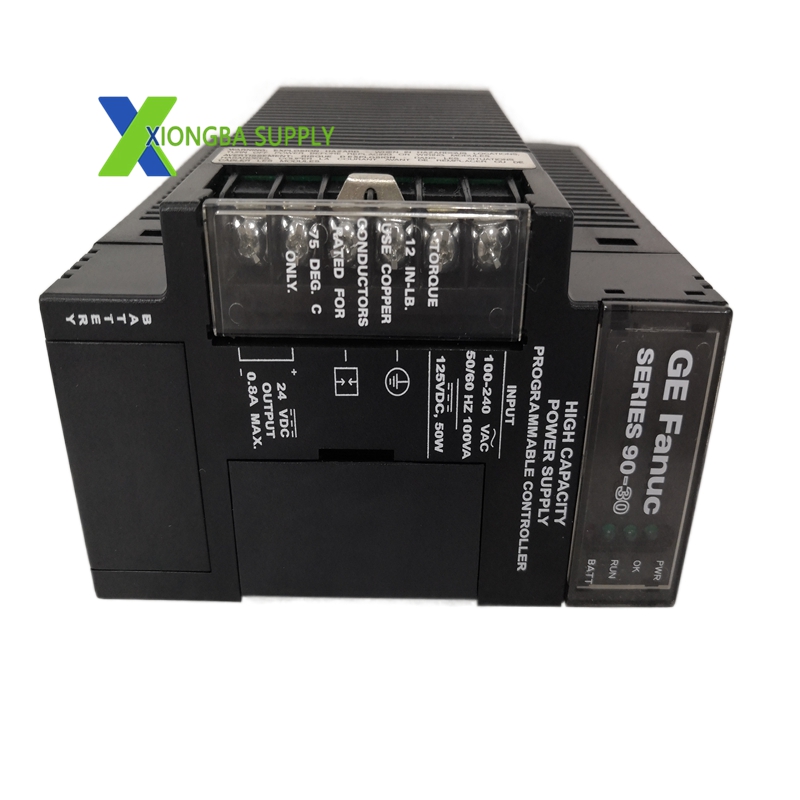

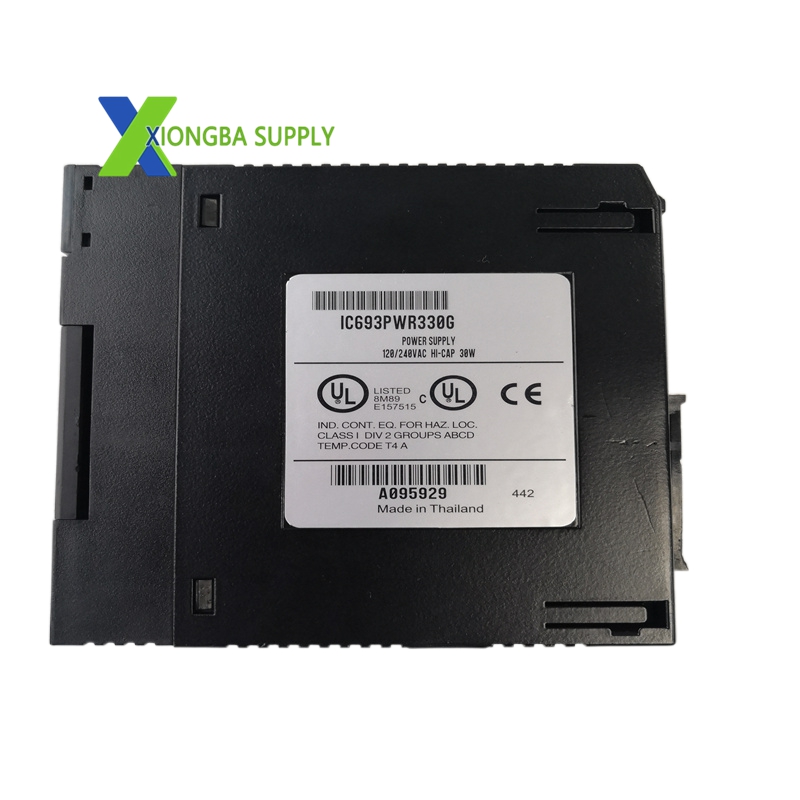

GE IC693PWR330 – Series 90-30 High‑Capacity Power Supply Module

In stock

Product Introduction:

The IC693PWR330 is a high‑capacity AC power supply module designed for the Series 90-30 PLC system, delivering up to 60W of output power to support large I/O configurations and high‑current field devices. It converts universal AC input into three regulated outputs: +5VDC for PLC logic, +24VDC for I/O modules, and isolated +24VDC for relay power, providing robust, reliable power for large‑scale industrial automation systems with extensive I/O requirements.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation)
Model: IC693PWR330
Series: Series 90-30 PLC System
Module Type: High‑Capacity AC Power Supply
Input Voltage: 85–264VAC (50/60Hz)
Outputs:
- +5VDC @ 6A (logic power)
- +24VDC @ 2.5A (I/O power)
- Isolated +24VDC @ 1A (relay power)
Max Output Power: 60W
Efficiency: ≥80% at full load
Holdup Time: ≥20ms
Overvoltage Protection: 6.4–7V on +5VDC
Overcurrent Protection: 6A max on +5VDC
Short‑Circuit Protection: Automatic shutdown and recovery
Backplane Current: 200mA @ 5VDC
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL 508, CSA
Dimensions: 110mm × 80mm × 40mm
Weight: 0.55kg

Key Features

High‑Power Output: Supports up to 6A @ +5VDC and 2.5A @ +24VDC, accommodating large I/O racks and high‑current sensors/actuators.
Heavy‑Duty Design: Handles large I/O configurations (30+ modules) and high‑current field devices, making it ideal for large‑scale automation systems.
Universal AC Input: Compatible with global power grids (85–264VAC) for worldwide deployment.
Triple Regulated Outputs: Provides dedicated, isolated power for logic, I/O, and relay circuits, eliminating noise interference.
Comprehensive Protection: Integrates overvoltage, overcurrent, and short‑circuit protection to safeguard the PLC and connected modules.
LED Status Indicator: Visual power‑good confirmation for quick operational verification.
Hot‑Swappable: Allows replacement during system operation without shutting down the PLC, minimizing downtime.
Rugged Industrial Design: Withstands vibration, shock, and wide temperature ranges for reliable operation in harsh environments.
