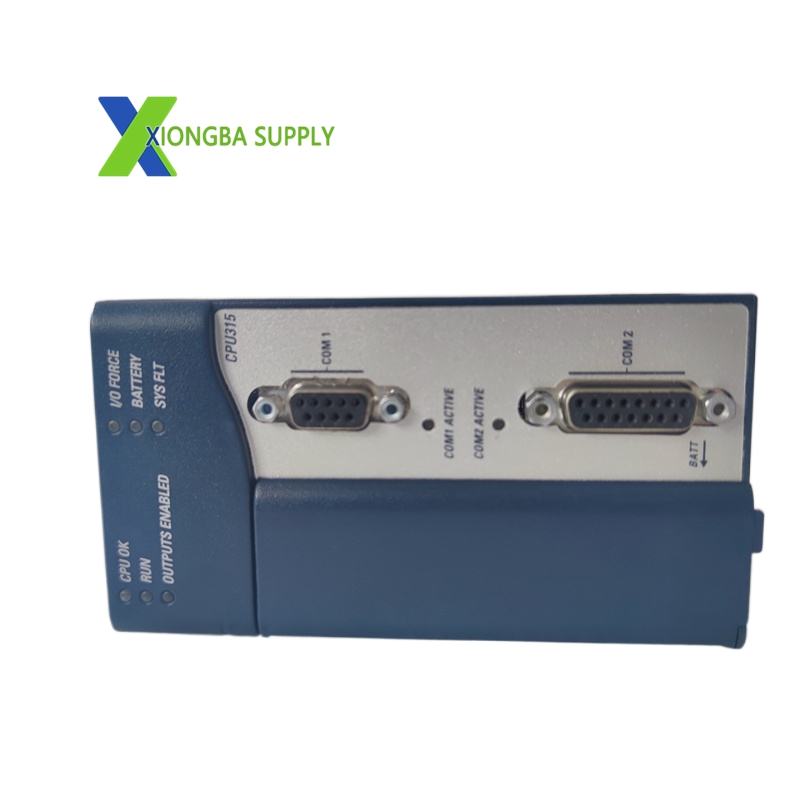

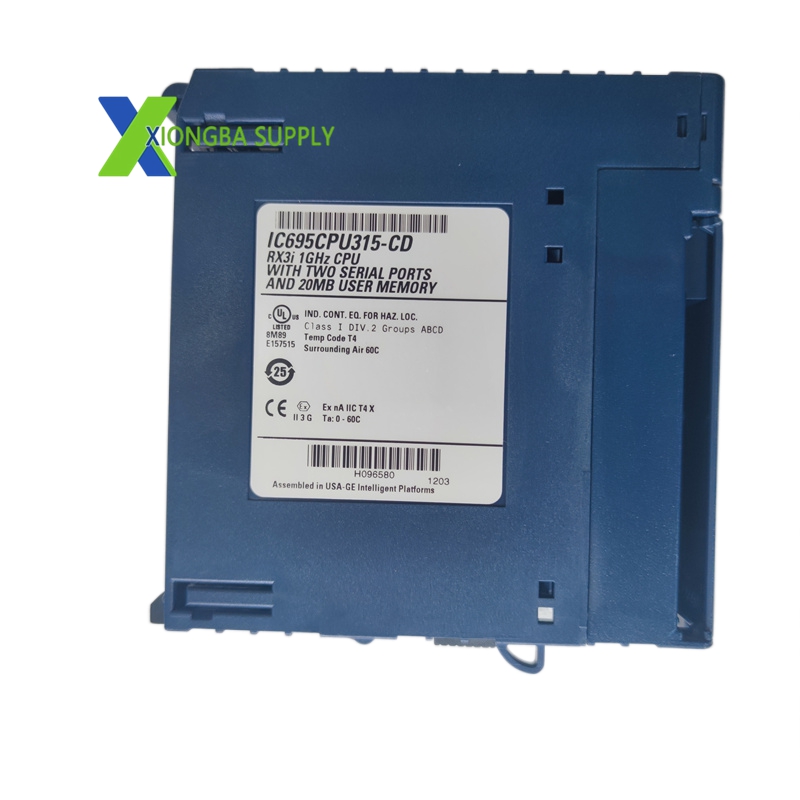

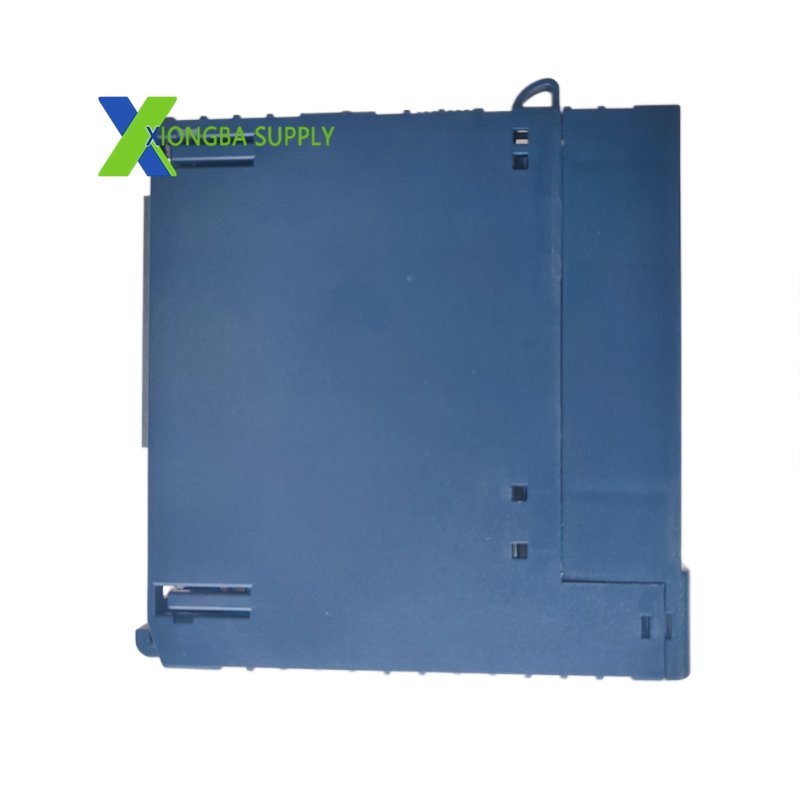

GE IC695CPU315 – PACSystems RX3i Legacy Mid-Range CPU Module

In stock

Product Introduction:

The IC695CPU315 is a legacy mid-range CPU module for the Emerson PACSystems RX3i PLC platform, designed for mid-level industrial automation applications requiring balanced performance, memory, and cost. It features a 1.0GHz 32-bit RISC processor, 5MB user memory, and standard communication ports supporting core protocols, delivering reliable logic execution, real-time data processing, and seamless network connectivity. It supports moderate I/O expansion, basic motion control, and standard process control algorithms, making it ideal for mid-range manufacturing, process, and infrastructure applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695CPU315
Series: PACSystems RX3i PLC System (Legacy CPU Series)
Processor: 1.0GHz 32-bit RISC CPU
Memory: 5MB RAM (user program/data), 5MB non-volatile flash (program storage)
Scan Rate: 0.9ms per 1000 Boolean instructions
Communication Ports:
- 1 × 10/100Mbps Ethernet (RJ45, Modbus TCP/IP, Ethernet/IP)
- 2 × RS-232/485 (serial, Modbus RTU)
- 1 × USB 2.0 (programming, data transfer)
I/O Support: Up to 512 local I/O points; expandable to 8192 I/O points via expansion chassis
Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Backplane Power: 1.2A @ 5VDC
Operating Temperature: 0°C to +60°C (standard range)
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 110mm × 80mm × 40mm
Weight: 0.5kg

Key Features

1.0GHz Balanced Processor: Delivers reliable scan speed (0.9ms/k Boolean instructions) for mid-level control algorithms, motion control, and real-time applications.
5MB Balanced Memory: Supports mid-sized user programs, moderate data logging, recipe storage, and historical trend analysis for mid-level processes.
Standard Communication: Native support for core protocols (Modbus TCP/IP, Ethernet/IP, Modbus RTU) meets standard industrial communication needs.
Moderate I/O Scalability: Supports up to 512 local I/O points and 8192 total I/O points via expansion chassis, scalable for mid-range automation systems.
