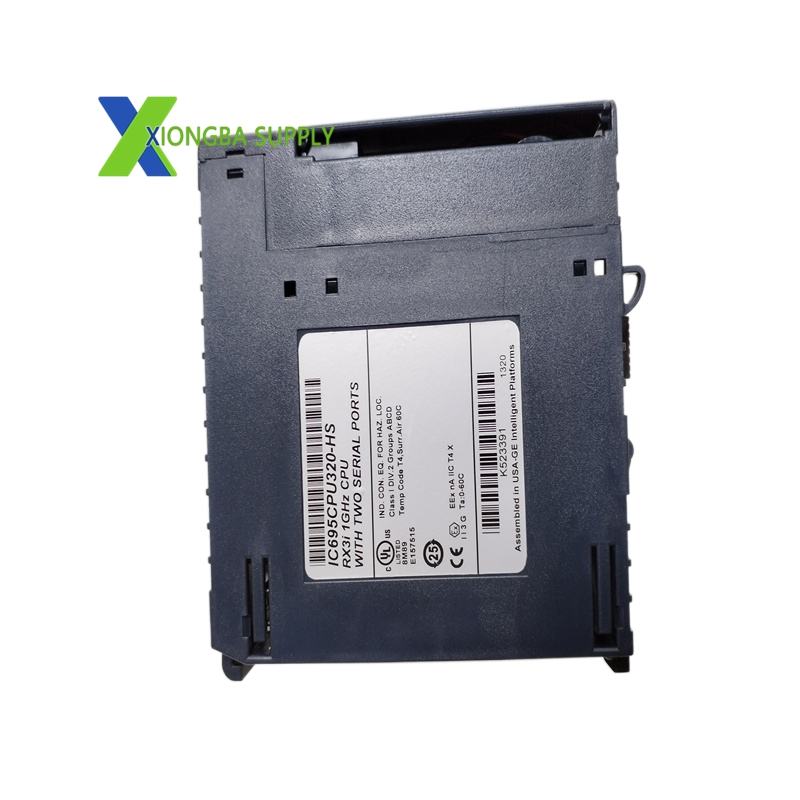

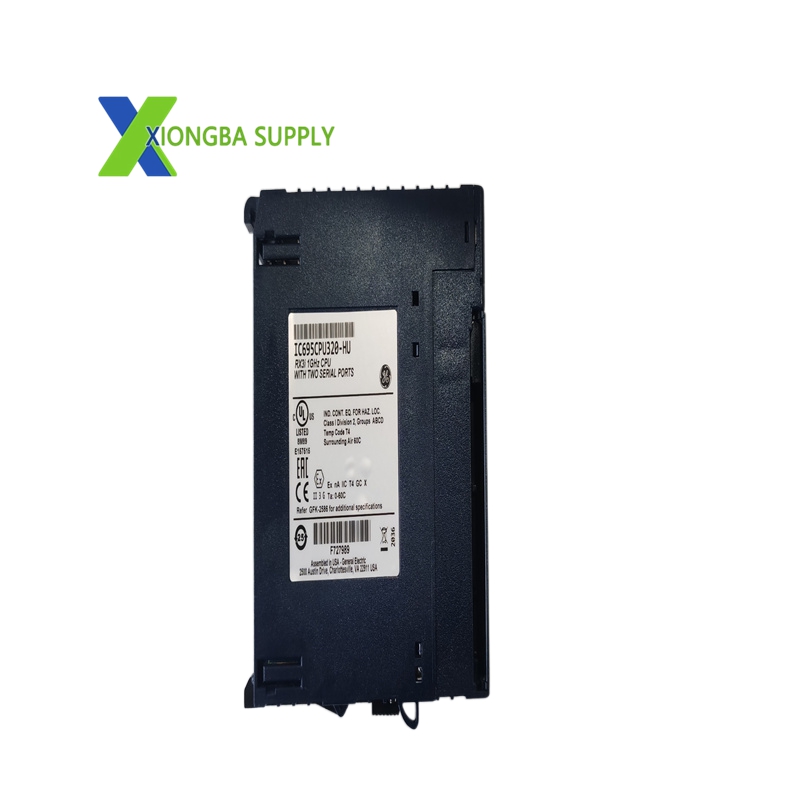

GE IC695CPU320 – PACSystems RX3i Legacy High-Performance CPU Module (Intel Celeron-M)

In stock

Product Introduction:

The IC695CPU320 is a legacy high-performance CPU module powered by an Intel Celeron-M processor for the Emerson PACSystems RX3i PLC platform, designed for complex industrial automation applications requiring robust processing capabilities and large memory. It features a 1.0GHz Intel Celeron-M processor, 64MB user memory, and dual serial ports, delivering reliable logic execution, real-time data processing, and seamless integration with serial and Ethernet networks. It supports extensive I/O expansion, advanced motion control, and complex process control algorithms, making it ideal for legacy manufacturing, process, and infrastructure applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695CPU320
Series: PACSystems RX3i PLC System (Legacy CPU Series)
Processor: 1.0GHz Intel Celeron-M
Memory: 64MB RAM (user program/data, battery-backed), 64MB non-volatile flash (program storage)
Scan Rate: 0.8ms per 1000 Boolean instructions
Communication Ports:
- 2 × RS-232/485 (serial, Modbus RTU, SNP, Serial I/O)
- Ethernet (via rack-based Ethernet interface module IC695ETM001)
I/O Support: Up to 1024 local I/O points; expandable to 16384 I/O points via expansion chassis
Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C
Backplane Power: 1.0A @ 3.3VDC, 1.2A @ 5VDC
Operating Temperature: 0°C to +60°C (standard range)
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Special Feature: Intel Celeron-M processor, large 64MB memory
Dimensions: 110mm × 80mm × 40mm
Weight: 0.55kg

Key Features

1.0GHz Intel Celeron-M Processor: Delivers robust processing power for complex control algorithms, motion control, and real-time applications.
64MB Large Memory: Supports large user programs, extensive data logging, recipe storage, and historical trend analysis for complex processes.

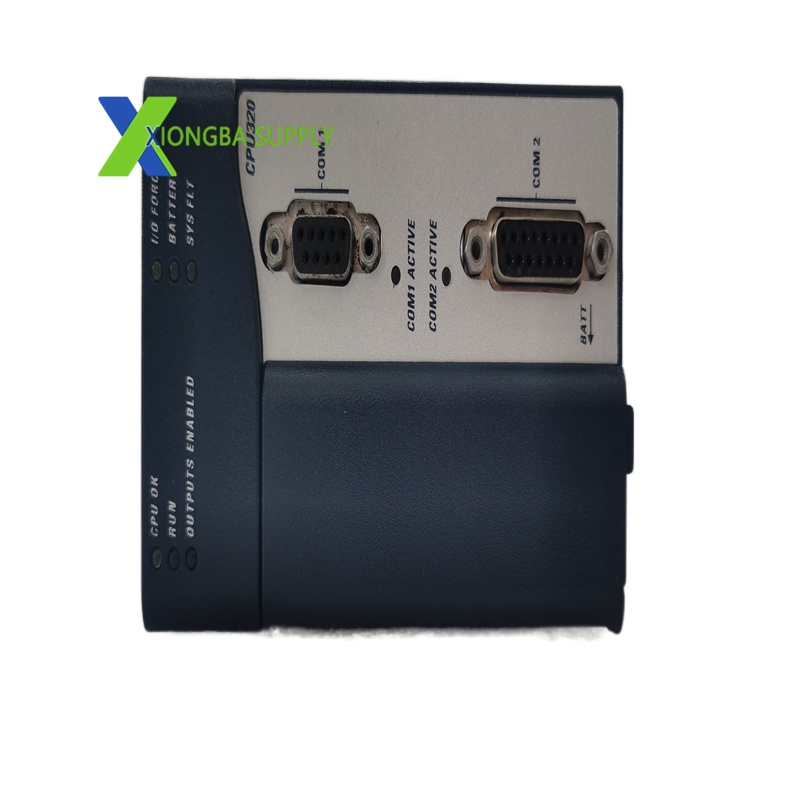

Dual Serial Ports: Independent RS-232 and RS-485 ports support Modbus RTU, SNP, and Serial I/O protocols for seamless communication with HMIs, SCADA, and field devices.
Ethernet Expansion: Supports Ethernet communication via rack-based Ethernet interface module IC695ETM001 for network connectivity.
Massive I/O Scalability: Supports up to 1024 local I/O points and 16384 total I/O points via expansion chassis, scalable for mid-to-large automation systems.
Multi-Language Programming: Supports LD, ST, FBD, and C programming languages, accommodating diverse programmer preferences and complex application requirements.
Hot-Swappable: Allows replacement during system operation to minimize downtime in critical applications.
Rugged Industrial Design: Withstands vibration, shock, and wide temperature ranges for reliable operation in harsh industrial environments.
