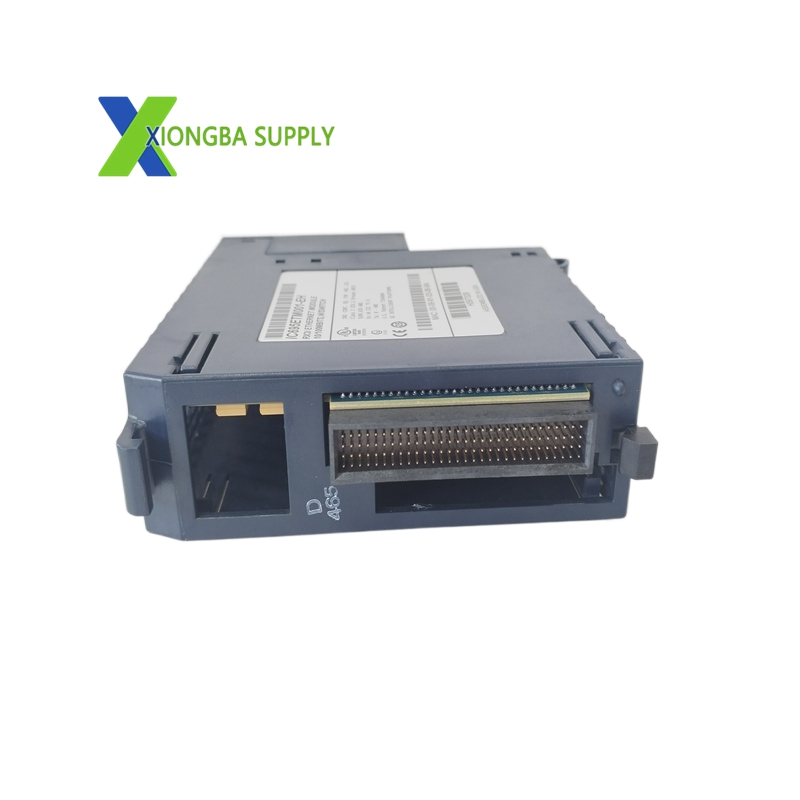

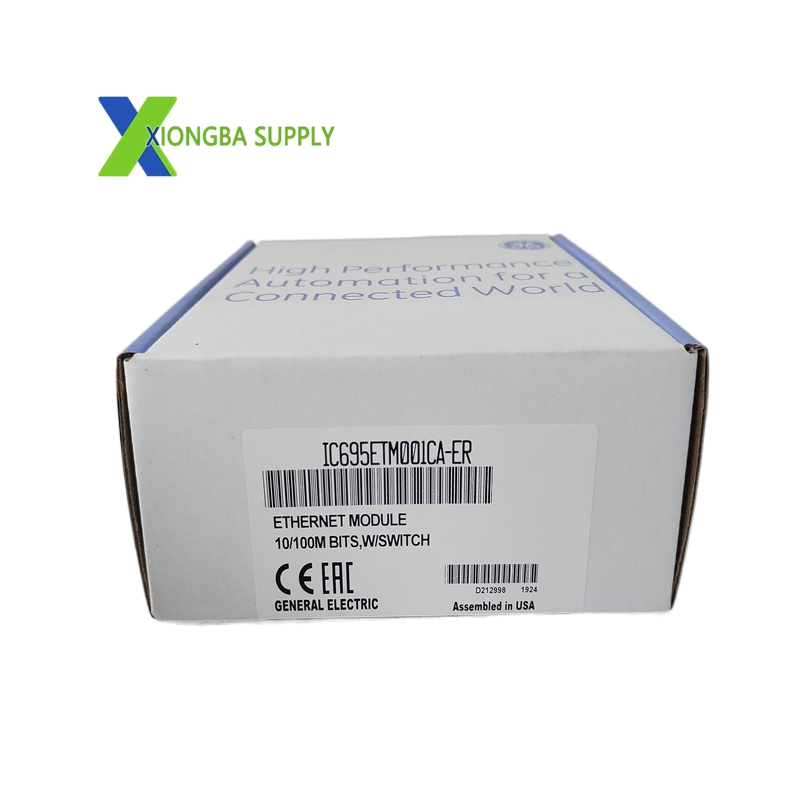

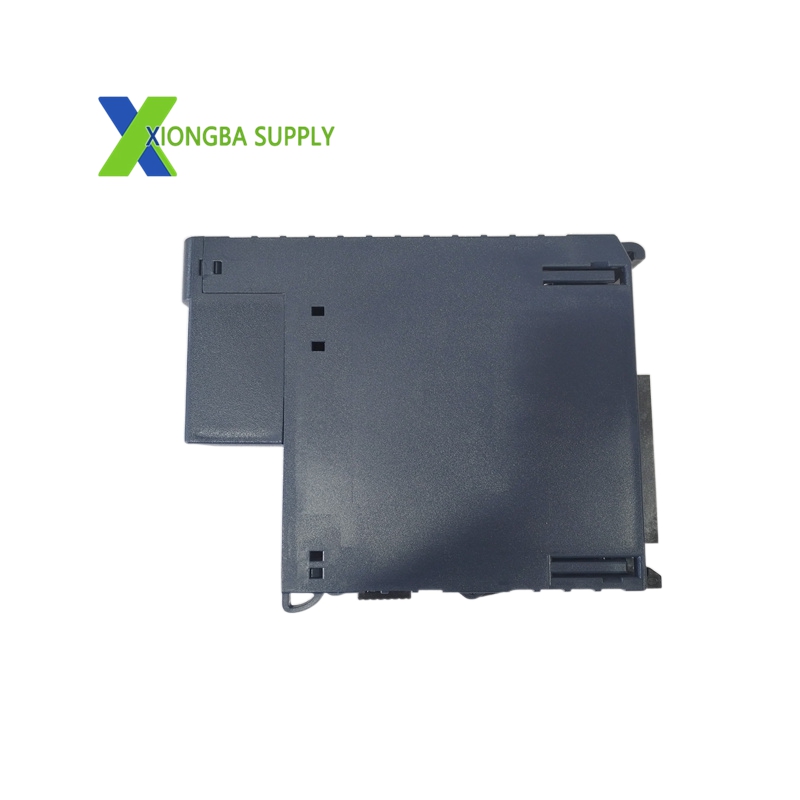

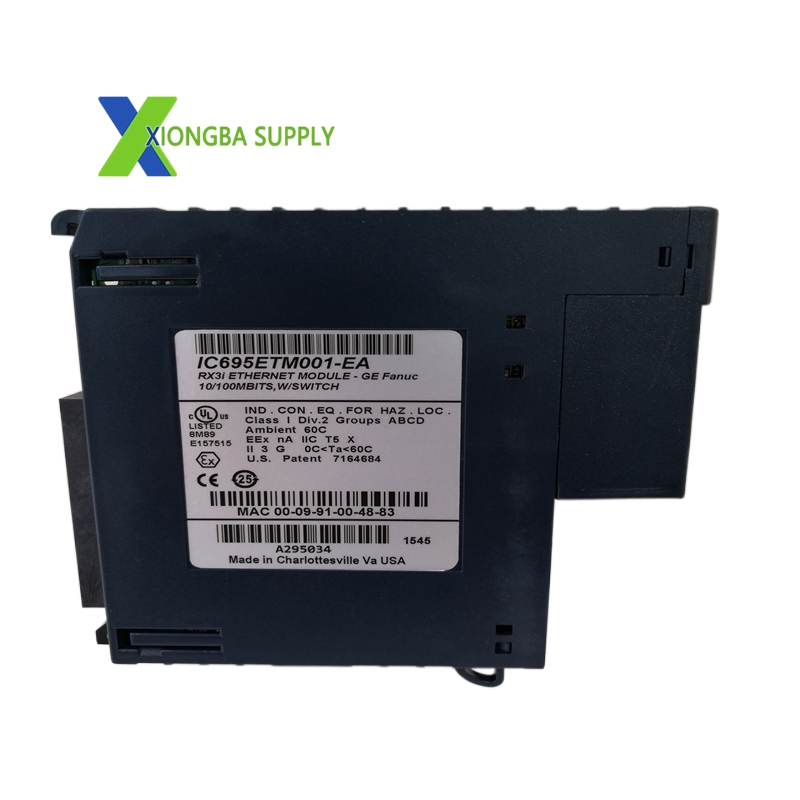

GE IC695ETM001 – PACSystems RX3i Ethernet Interface Module

In stock

Product Introduction:

The IC695ETM001 is a high-performance Ethernet transmitter module designed for the Emerson PACSystems RX3i PLC platform. It serves as a critical communication hub, enabling RX3i controllers to connect to Ethernet networks and exchange data with other PACSystems devices, Series 90-30/VersaMax controllers, HMIs, SCADA systems, and third-party industrial devices. Engineered for high-speed, reliable communication, it supports multiple industrial protocols and advanced network features for seamless integration into complex industrial automation systems.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695ETM001
Series: PACSystems RX3i PLC System
Module Type: Ethernet Interface Module (Single-slot)
Ethernet Ports: 2 x RJ45 (10/100 Mbps, auto-negotiation)
Serial Port: 1 x 9-pin Sub-D RS-232 station manager port
Ethernet Processor: 200 MHz
Supported Protocols: SRTP, Modbus TCP, Ethernet Global Data (EGD), SNTP time synchronization
Data Transfer Rate: 10/100 Mbps (auto-sensing)
Backplane Power: 840mA @ 3.3VDC; 614mA @ 5VDC
Hot-Swappable: Yes (supports insertion/removal during system operation)

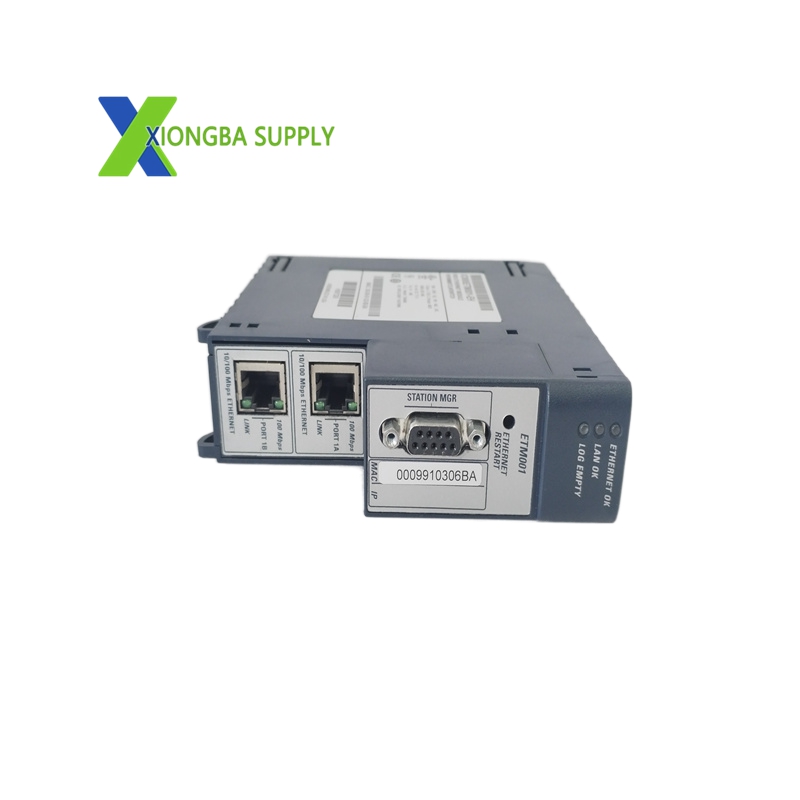

LED Indicators: Ethernet OK, LAN OK, Log Empty, individual port status, speed LEDs
Reset Button: Integrated pushbutton for manual Ethernet firmware reset
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS
Dimensions: 135mm × 129mm × 53mm
Weight: 0.45kg

Key Features

Dual 10/100 Mbps Ethernet Ports: Two independent auto-negotiation RJ45 ports support network segmentation, redundancy, and simultaneous connection to control and enterprise networks.
Multi-Protocol Support: Native support for SRTP (GE device communication), Modbus TCP (third-party integration), and EGD (periodic data exchange) simplifies system integration.
Station Manager Functionality: Built-in RS-232 port enables local/remote monitoring, configuration, and diagnostics of the Ethernet interface via standard serial tools.
Hot-Swappable Design: Allows replacement during system operation to minimize downtime in critical communication applications.
SNTP Time Synchronization: Supports synchronization with SNTP time servers for precise timekeeping across distributed systems.
Embedded Switch: Integrated Ethernet switch supports auto-negotiation, speed/duplex sensing, and crossover detection for flexible network topology configuration.
Advanced Diagnostics: Comprehensive LED indicators provide real-time visibility into Ethernet link status, activity, and fault conditions for quick troubleshooting.
