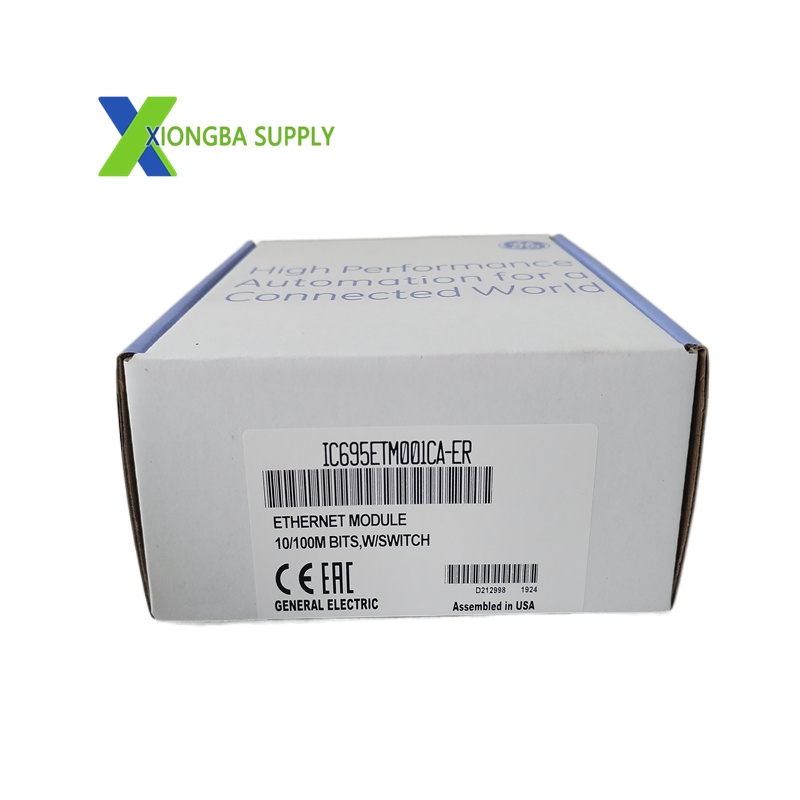

GE IC695ETM001CA-ER – PACSystems RX3i Ethernet Interface Module

In stock

roduct Introduction:

The IC695ETM001CA-ER is a ruggedized variant of the IC695ETM001 Ethernet interface module, designed for the Emerson PACSystems RX3i PLC platform. It combines all standard Ethernet communication features with conformal coating and an extended operating temperature range, making it suitable for harsh industrial environments with high moisture, dust, chemical exposure, or extreme temperatures. Engineered for reliability in demanding applications, it delivers consistent high-speed communication and advanced network functionality in conditions where standard modules cannot operate reliably.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695ETM001CA-ER
Series: PACSystems RX3i PLC System
Module Type: Ethernet Interface Module (Single-slot, Conformal Coated, Extended Temperature)
Ethernet Ports: 2 x RJ45 (10/100 Mbps, auto-negotiation)
Serial Port: 1 x 9-pin Sub-D RS-232 station manager port
Ethernet Processor: 200 MHz
Supported Protocols: SRTP, Modbus TCP, Ethernet Global Data (EGD), SNTP time synchronization
Data Transfer Rate: 10/100 Mbps (auto-sensing)
Backplane Power: 840mA @ 3.3VDC; 614mA @ 5VDC
Hot-Swappable: Yes (supports insertion/removal during system operation)
LED Indicators: Ethernet OK, LAN OK, Log Empty, individual port status, speed LEDs
Reset Button: Integrated pushbutton for manual Ethernet firmware reset
Operating Temperature: -20°C to +60°C (extended range)
Storage Temperature: -40°C to +85°C
Environmental Protection: Conformal coating; enhanced resistance to moisture, dust, chemicals, and corrosion
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 135mm × 129mm × 53mm
Weight: 0.47kg

Key Features

Extended Temperature Operation: Operates reliably from -20°C to +60°C, suitable for cold storage, outdoor installations, and extreme industrial environments.
Conformal Coating Protection: Protective epoxy coating shields components from moisture, dust, chemicals, and corrosion, extending service life in washdown, chemical, and humid environments.
Dual 10/100 Mbps Ethernet Ports: Two independent auto-negotiation RJ45 ports support network segmentation, redundancy, and simultaneous connection to control and enterprise networks.
Multi-Protocol Support: Native support for SRTP, Modbus TCP, and EGD simplifies integration with GE and third-party devices/systems.
Hot-Swappable Design: Allows replacement during system operation to minimize downtime in critical communication applications.
SNTP Time Synchronization: Supports synchronization with SNTP time servers for precise timekeeping across distributed systems.
Rugged Mechanical Design: Reinforced housing withstands vibration, shock, and thermal cycling in mining, marine, and offshore environments.
