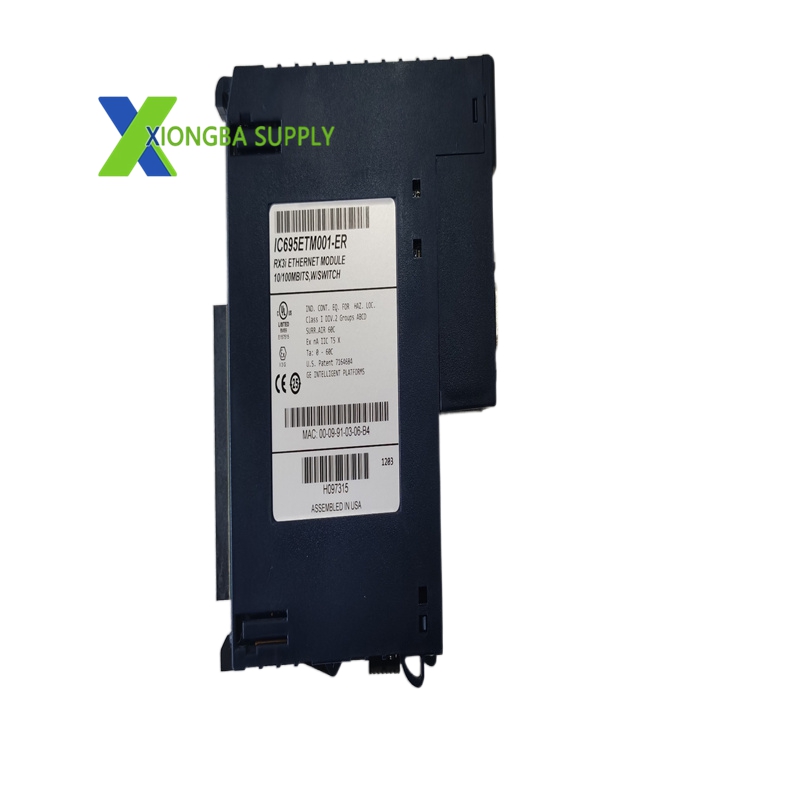

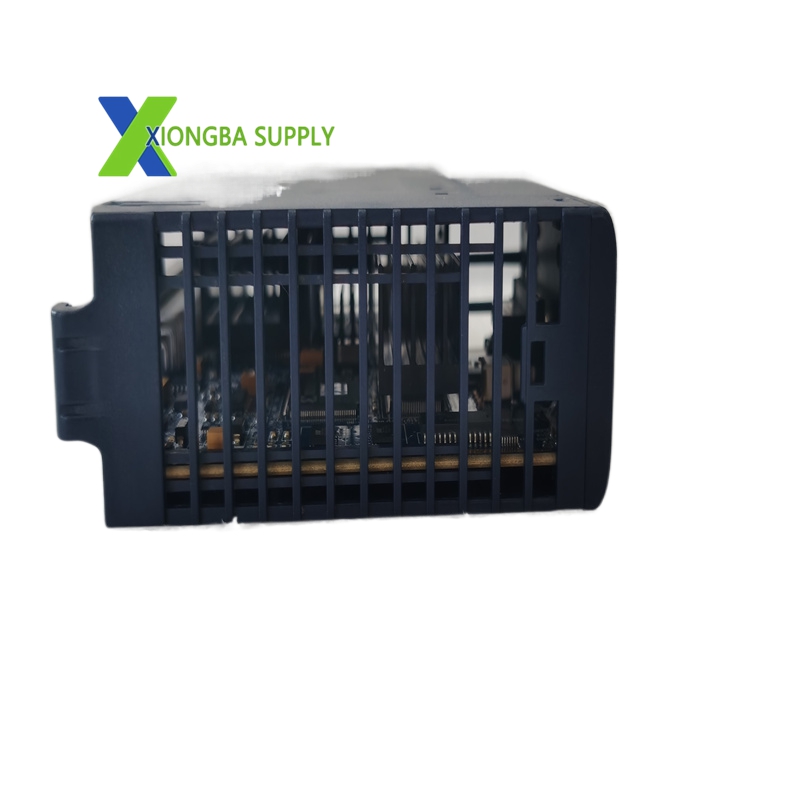

GE IC695ETM001ER – PACSystems RX3i Ethernet Interface Module

In stock

Product Introduction:

The IC695ETM001ER is an extended temperature variant of the IC695ETM001 Ethernet interface module, designed for the Emerson PACSystems RX3i PLC platform. It retains all standard Ethernet communication features of the base model while supporting a wider operating temperature range, making it suitable for outdoor installations, cold storage facilities, and industrial environments with extreme temperature fluctuations. Engineered for reliable high-speed communication in temperature-challenged applications, it provides seamless network integration and advanced diagnostics without the conformal coating of the CA-ER variant.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695ETM001ER
Series: PACSystems RX3i PLC System
Module Type: Ethernet Interface Module (Single-slot, Extended Temperature)
Ethernet Ports: 2 x RJ45 (10/100 Mbps, auto-negotiation)
Serial Port: 1 x 9-pin Sub-D RS-232 station manager port
Ethernet Processor: 200 MHz
Supported Protocols: SRTP, Modbus TCP, Ethernet Global Data (EGD), SNTP time synchronization
Data Transfer Rate: 10/100 Mbps (auto-sensing)
Backplane Power: 840mA @ 3.3VDC; 614mA @ 5VDC
Hot-Swappable: Yes (supports insertion/removal during system operation)
LED Indicators: Ethernet OK, LAN OK, Log Empty, individual port status, speed LEDs
Reset Button: Integrated pushbutton for manual Ethernet firmware reset
Operating Temperature: -20°C to +60°C (extended range)
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS
Dimensions: 135mm × 129mm × 53mm
Weight: 0.45kg

Key Features

Extended Temperature Operation: Operates reliably from -20°C to +60°C, suitable for cold storage, outdoor installations, and temperature-extreme industrial environments.
Dual 10/100 Mbps Ethernet Ports: Two independent auto-negotiation RJ45 ports support network segmentation, redundancy, and simultaneous connection to control and enterprise networks.
Multi-Protocol Support: Native support for SRTP, Modbus TCP, and EGD simplifies integration with GE and third-party devices/systems.
Hot-Swappable Design: Allows replacement during system operation to minimize downtime in critical communication applications.
SNTP Time Synchronization: Supports synchronization with SNTP time servers for precise timekeeping across distributed systems.
Embedded Switch: Integrated Ethernet switch supports auto-negotiation, speed/duplex sensing, and crossover detection for flexible network topology configuration.
Advanced Diagnostics: Comprehensive LED indicators provide real-time visibility into Ethernet link status, activity, and fault conditions for quick troubleshooting.
