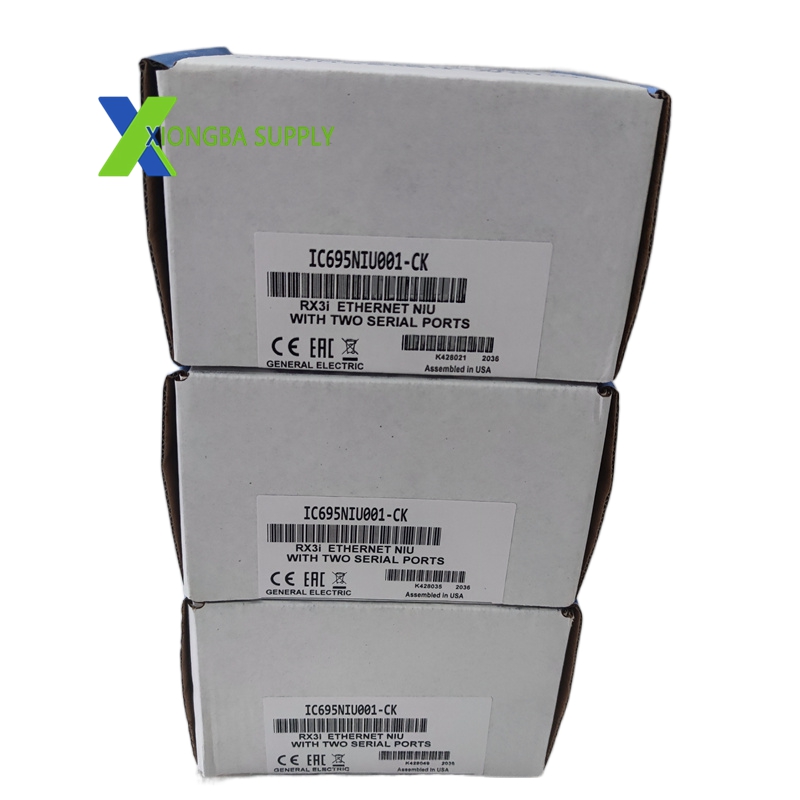

GE IC695NIU001-CK – PACSystems RX3i Ethernet Network Interface Unit

In stock

Product Introduction:

The IC695NIU001-CK is a conformal-coated variant of the IC695NIU001 Ethernet Network Interface Unit, designed for the Emerson PACSystems RX3i PLC platform. It retains all core communication and logic features of the standard NIU while adding a protective conformal coating, making it suitable for harsh industrial environments with high moisture, dust, chemical exposure, or corrosive gases. Engineered for reliability in demanding applications, it delivers robust multi-protocol communication and distributed I/O support in conditions where uncoated modules cannot operate consistently.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695NIU001-CK
Series: PACSystems RX3i PLC System
Module Type: Ethernet Network Interface Unit (Single-slot, Conformal Coated)
Backplane Compatibility: RX3i PCI backplane; Series 90-30 serial backplane
Serial Ports: 2 x RS-232/RS-485 (software-selectable)
Ethernet Dependency: Requires IC695ETM001 Ethernet module for network connectivity
Local Logic Memory: 20 KB (supports all languages except C)
Flash Memory: 10 MB (non-volatile, for firmware and user data)
Real-Time Clock: Battery-backed (5-year battery life)
Supported Protocols: SNP, Modbus Master/Slave, Serial I/O, EGD, SRTP
Backplane Power: 1.25A @ 3.3VDC; 1.0A @ 5VDC
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Environmental Protection: Conformal coating; enhanced resistance to moisture, dust, chemicals, and corrosion
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 110mm × 80mm × 40mm
Weight: 0.46kg

Key Features

Conformal Coating Protection: Protective epoxy coating shields components from moisture, dust, chemicals, and corrosion, extending service life in washdown, chemical, and humid environments.
Dual Serial Ports: Two software-selectable RS-232/RS-485 ports enable connectivity with serial devices (HMIs, printers, barcode scanners) and support Modbus RTU communication.
Local Logic Capability: 20 KB of optional local logic allows standalone control applications without relying on the main CPU, enhancing system flexibility.
Non-Volatile Flash Memory: 10 MB of built-in flash stores firmware, user data, and configuration files, supporting in-system firmware upgrades.
Multi-Protocol Support: Native support for SNP, Modbus (Master/Slave), Serial I/O, EGD, and SRTP enables seamless integration with diverse devices and systems.
Distributed I/O Support: Enables remote use of PACSystems RX3i and Series 90-30 I/O modules over Ethernet, supporting scalable distributed automation architectures.
Rugged Mechanical Design: Reinforced housing withstands vibration, shock, and thermal cycling in mining, marine, and offshore environments.
