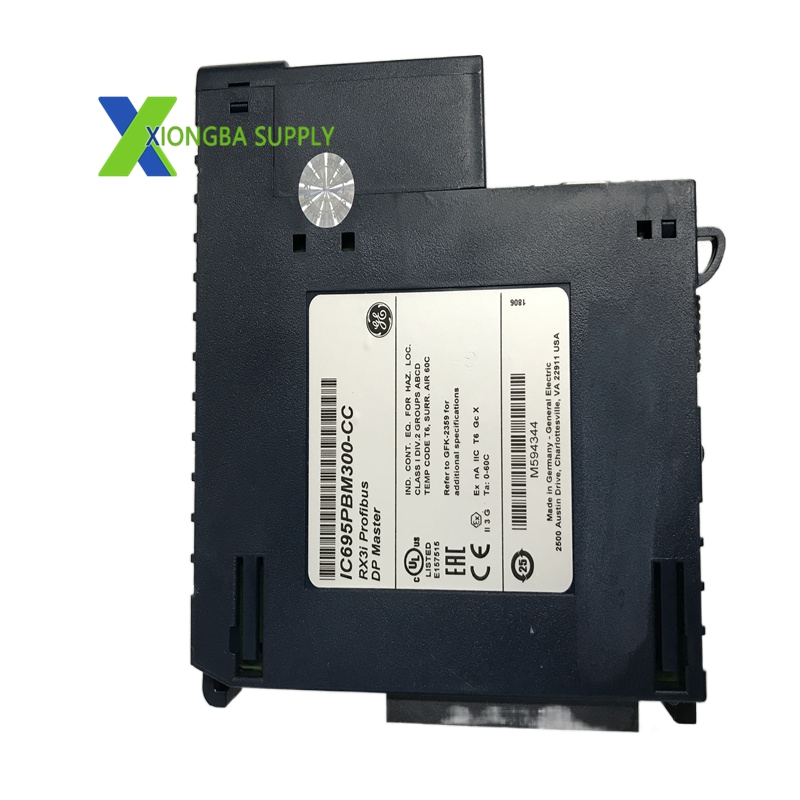

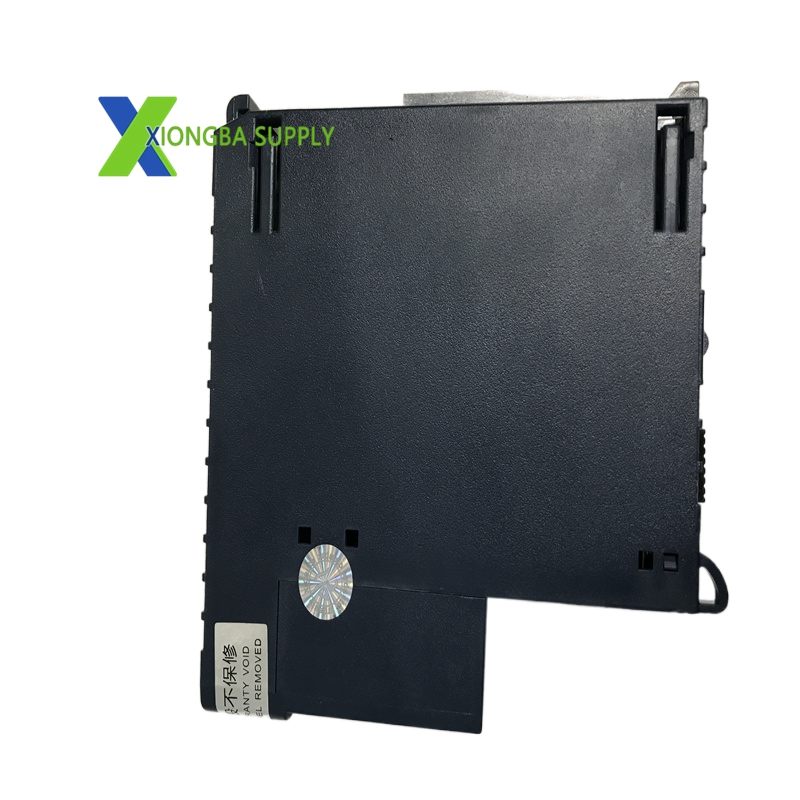

GE IC695PBM300 – PACSystems RX3i PROFIBUS DP Master Module

In stock

Product Introduction:

The IC695PBM300 is a high-performance PROFIBUS DP master communication module designed for the Emerson PACSystems RX3i PLC platform. It enables the RX3i CPU to act as a PROFIBUS DP-V1 master, facilitating high-speed data exchange with up to 125 DP slave devices (e.g., distributed I/O, VFDs, valve positioners) on a single PROFIBUS network. Engineered for industrial automation, it supports advanced DP-V1 functions, comprehensive diagnostics, and seamless integration with third-party PROFIBUS devices, making it ideal for process control, manufacturing, and material handling applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695PBM300
Series: PACSystems RX3i PLC System
Module Type: PROFIBUS DP Master Module (Single-slot)
Communication Port: 1 x 9-pin Sub-D RS-485 (PROFIBUS DP)
Supported Protocol: PROFIBUS DP-V1 (master mode)
Max Slave Devices: 125 DP slaves per module
Data Exchange Capacity: 244 bytes input/output per slave; 3,584 bytes total input/output
Baud Rates: 9.6 kbps to 12 Mbps (all standard PROFIBUS baud rates)
DP-V1 Functions: Acyclic read/write, alarm/diagnostic messages, Sync/Freeze modes
Backplane Power: 440mA @ 3.3VDC
Hot-Swappable: Yes (supports insertion/removal during system operation)
LED Indicators: Module status, network status, communication activity, fault LEDs
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 100mm × 80mm × 20mm
Weight: 0.4kg

Key Features

High Slave Capacity: Supports up to 125 PROFIBUS DP slaves per module, enabling large-scale network deployment in complex automation systems.
DP-V1 Advanced Functionality: Supports acyclic read/write, alarm/diagnostic messages, and Sync/Freeze modes for enhanced control and monitoring capabilities.
Wide Baud Rate Support: Operates at all standard PROFIBUS baud rates (9.6 kbps to 12 Mbps), accommodating diverse network speed requirements.
