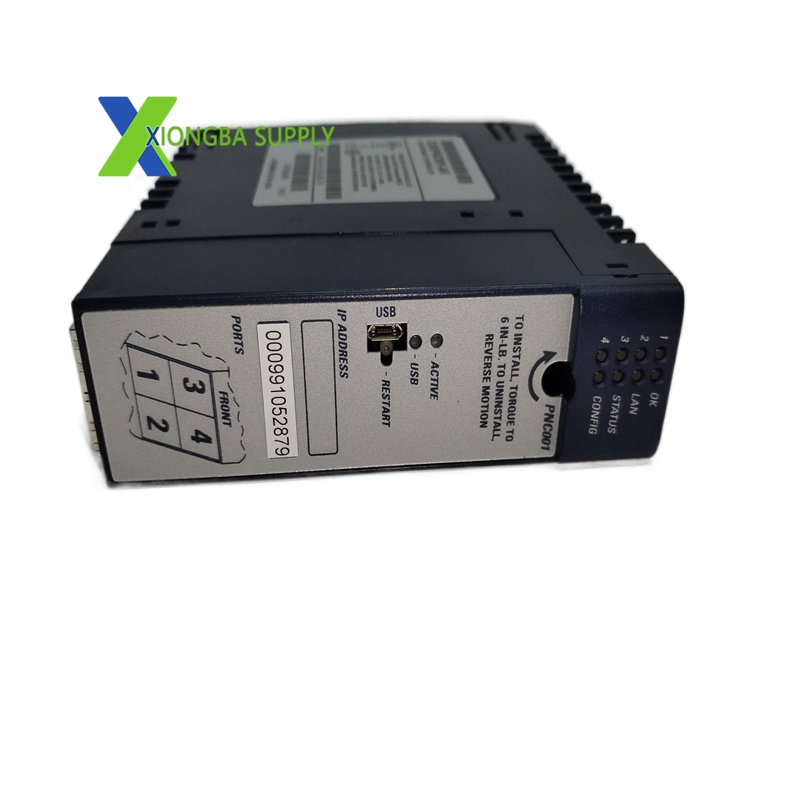

GE IC695PNC001 – PACSystems RX3i PROFINET Controller Module

In stock

Product Introduction:

The IC695PNC001 is a high-performance PROFINET controller module designed for the Emerson PACSystems RX3i PLC platform. It enables the RX3i CPU to act as a PROFINET IO-Controller (Class A), facilitating real-time communication with up to 64 PROFINET IO-Devices (e.g., distributed I/O, VFDs, HMIs) on a single PROFINET network. Engineered for industrial automation, it supports high-speed data exchange, advanced diagnostics, and network redundancy, making it ideal for motion control, process automation, and smart manufacturing applications.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695PNC001
Series: PACSystems RX3i PLC System
Module Type: PROFINET Controller Module (Single-slot)
Communication Ports: 2 x RJ45 (10/100/1000 Mbps, auto-negotiation); 1 x micro USB (setup/diagnostics)
Supported Protocol: PROFINET Version 2.2 (General Class A, IO-Controller)
Max IO-Devices: Up to 64 PROFINET IO-Devices per controller
Max I/O Data: 1,440 bytes input / 1,440 bytes output
Network Redundancy: Supports MRP (Media Redundancy Protocol) for ring topologies
Backplane Power: 0.5A @ 3.3VDC; 1.5A @ 5VDC
Hot-Swappable: Yes (supports insertion/removal during system operation)
LED Indicators: OK, LAN Status, Link, Activity, Fault LEDs
Configuration Tool: Proficy Machine Edition (PME)
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 110mm × 80mm × 40mm
Weight: 0.44kg

Key Features

Dual Gigabit Ethernet Ports: Two 10/100/1000 Mbps auto-negotiation RJ45 ports support network segmentation, redundancy, and high-speed data transfer.
High Device Capacity: Supports up to 64 PROFINET IO-Devices per controller, enabling large-scale network deployment in complex automation systems.
Real-Time Communication: Deterministic data exchange with low latency ensures precise synchronization for motion control, process synchronization, and coordinated automation.
MRP Redundancy Support: Enables ring topology networks with Media Redundancy Protocol (MRP), ensuring uninterrupted communication during network faults.
Micro USB Setup Port: Dedicated micro USB port for easy system configuration, firmware upgrades, and diagnostics via standard USB tools.
Hot-Swappable Design: Allows replacement during system operation to minimize downtime in critical PROFINET network applications.
Extended Temperature Operation: Operates reliably from -40°C to +70°C, suitable for extreme industrial environments.
