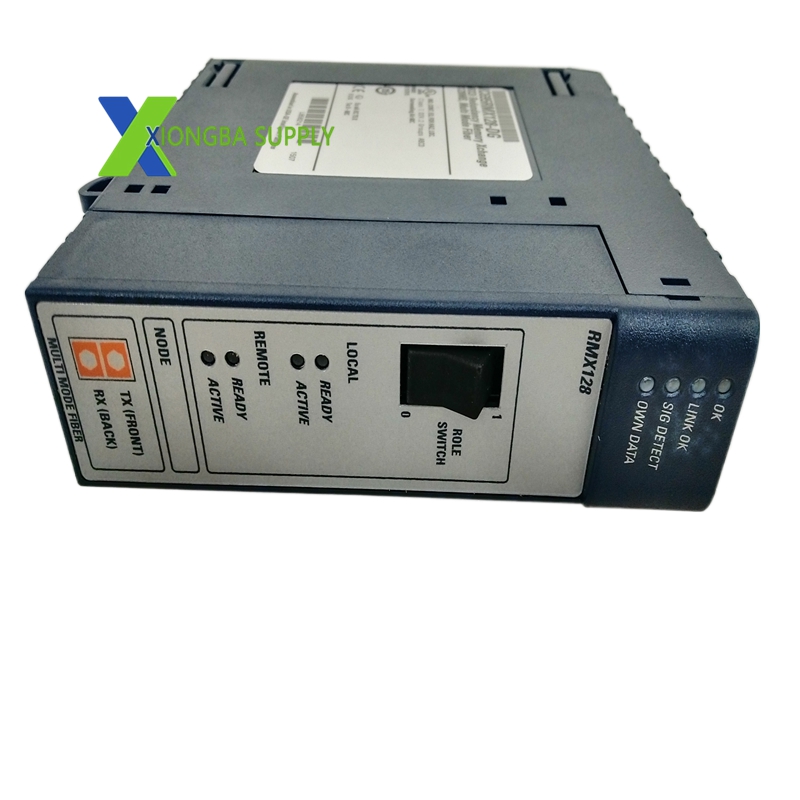

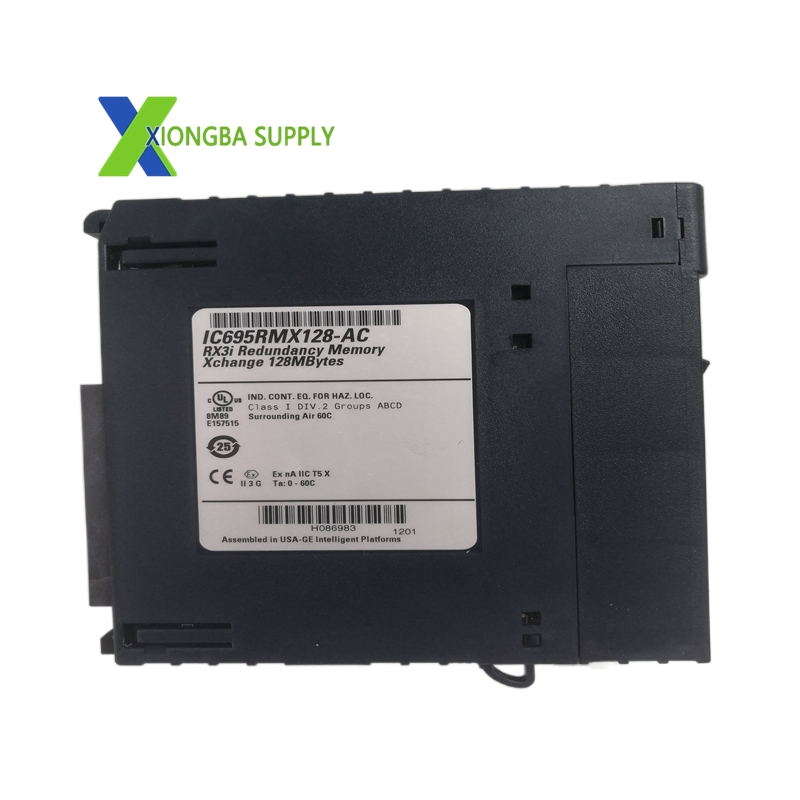

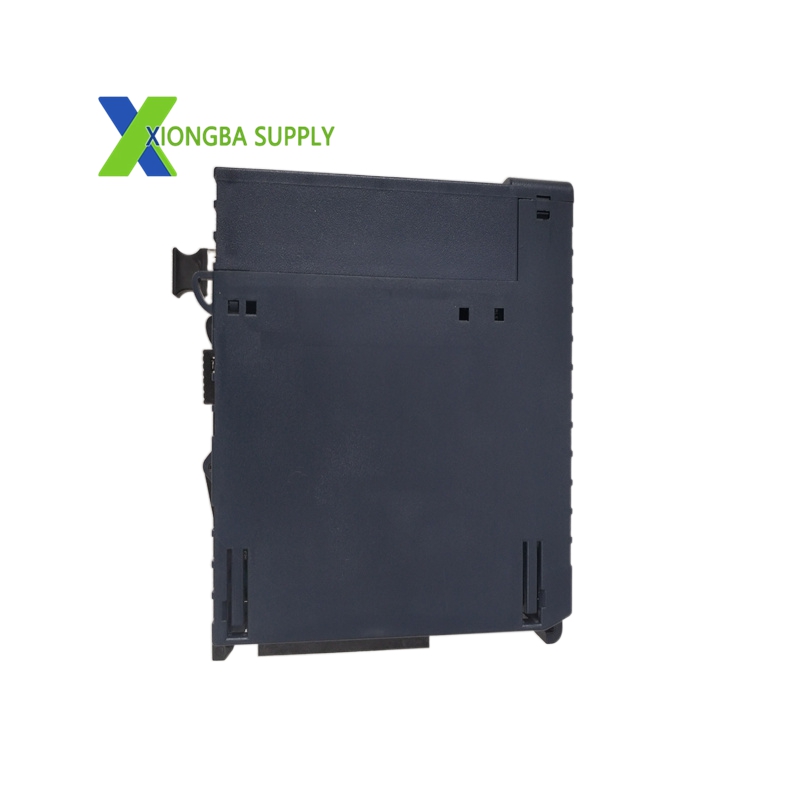

GE IC695RMX128 – PACSystems RX3i Redundant Memory Xchange Module

In stock

Product Introduction:

The IC695RMX128 is a high‑speed redundant memory exchange module for the Emerson PACSystems RX3i PLC platform, designed to enable real‑time data synchronization between redundant RX3i CPUs in hot‑standby configurations. It acts as a dedicated fiber‑optic link, mirroring 128MB of shared memory between the primary and standby CPUs at ultra‑high speeds, ensuring seamless failover (≤5ms) with zero data loss. Engineered for high‑availability industrial control systems, it eliminates the need for slow Ethernet‑based synchronization, delivering deterministic, lossless data replication for critical applications requiring uninterrupted operation.

Technical Specifications

Manufacturer: Emerson Automation (formerly GE Intelligent Platforms)
Model: IC695RMX128
Series: PACSystems RX3i PLC System
Module Type: Redundant Memory Xchange Module (1‑slot, Fiber Optic)
Shared Memory: 128MB SDRAM (reflective memory)
Communication Interface: Fiber‑optic (LC‑type connectors, multimode)
Sync Link Speed: 2.1Gbps (2.12Gbaud data rate)
Max Distance Between Redundant CPUs: 300 meters (984 feet)
Redundancy Support: Hot‑standby CPU redundancy (RX3i CRU320 series CPUs)
Backplane Power: 580mA @ 3.3VDC; 220mA @ 5VDC
Backplane Compatibility: RX3i Universal Backplane only
Hot‑Swappable: Yes (insertion/removal during system operation)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Certifications: CE, UL, CSA, RoHS, Class 1 Div 2
Dimensions: 110mm × 80mm × 40mm
Weight: 0.22kg

Key Features

128MB Reflective Memory: Dedicated 128MB high‑speed shared memory enables full replication of user programs, data tables, and I/O states between redundant CPUs.
Ultra‑Fast Fiber‑Optic Sync: 2.1Gbps fiber‑optic link delivers deterministic, lossless data replication with ≤5ms failover time, far faster than Ethernet‑based synchronization.
Long‑Distance Redundancy: Supports up to 300 meters between primary and standby CPUs, enabling geographically separated redundant control rooms.
Hot‑Standby Redundancy: Seamlessly integrates with RX3i CRU320 series redundant CPUs, ensuring zero downtime and uninterrupted control during primary CPU failure.
Hot‑Swappable: Allows replacement during system operation to minimize downtime in critical high‑availability applications.
Network‑Independent Synchronization: Dedicated fiber‑optic link avoids reliance on plant Ethernet networks, eliminating bandwidth contention and security risks.
Rugged Industrial Design: Withstands vibration, shock, and wide temperature ranges for reliable operation in harsh industrial environments.
