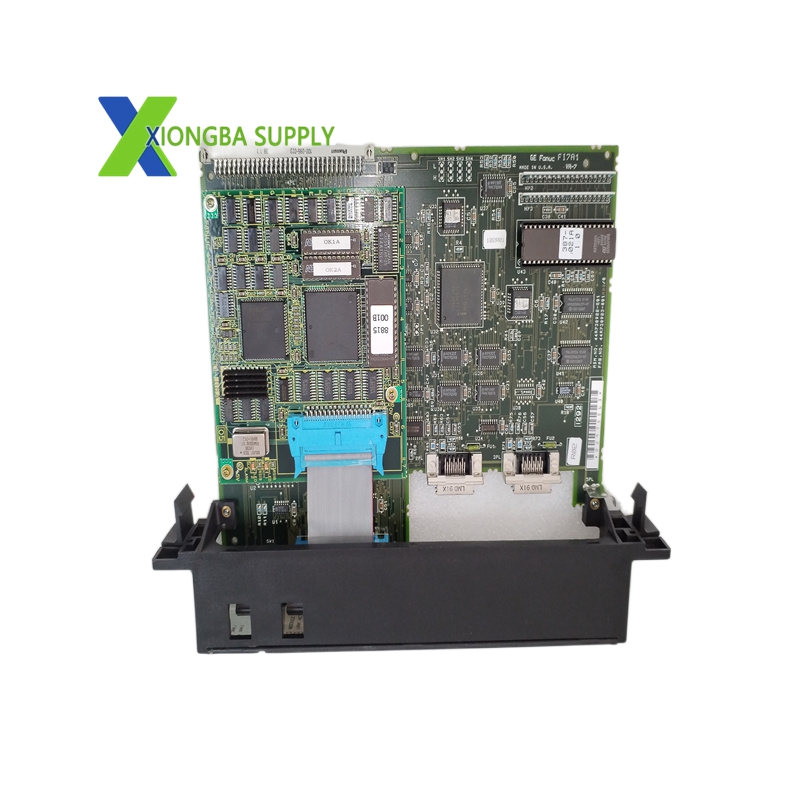

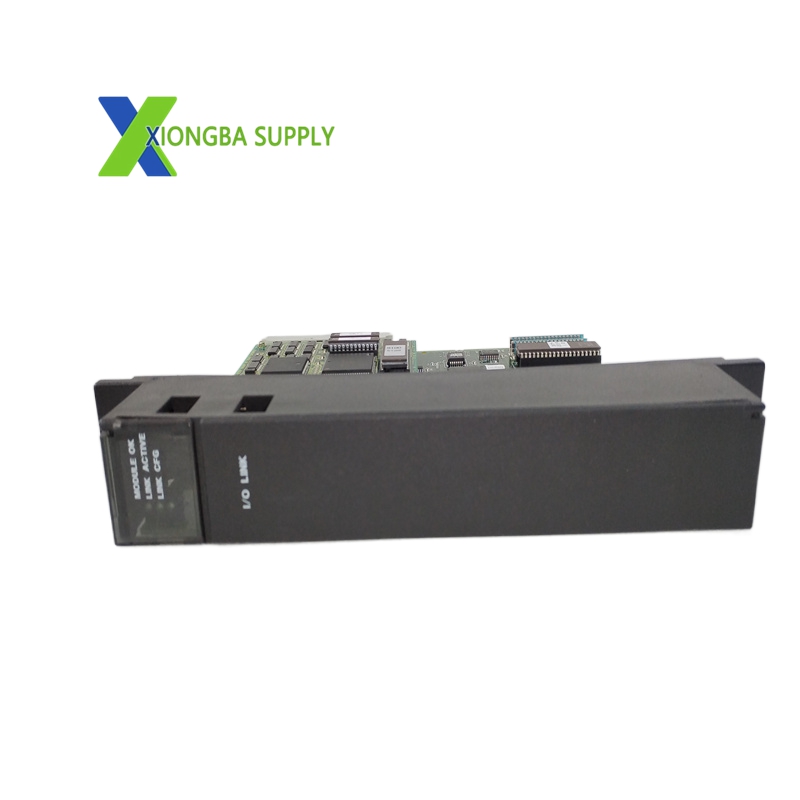

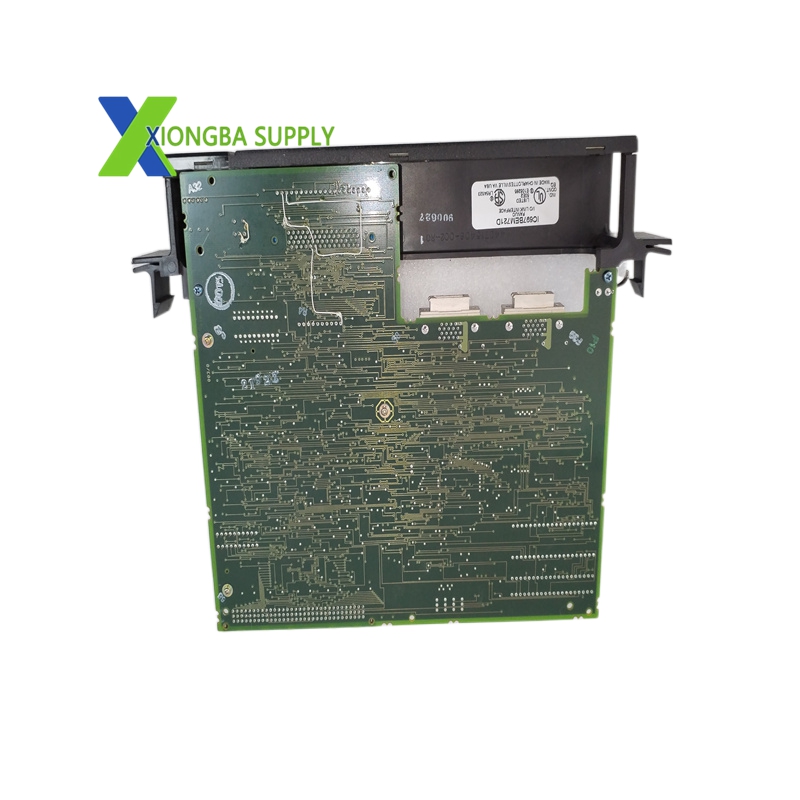

GE IC697BEM721 – Series 90-70 I/O Link Interface Module

In stock

Product Description:

The IC697BEM721 is a high-speed communication module for the GE Series 90-70 PLC. It acts as an interface between the main PLC and slave devices like IC693 PLCs, Power Mate CNC, and Series 0 CNC machines. It supports master/slave modes and manages up to 1024 discrete I/O points or 64 analog I/O points, serving as a bridge for high-speed serial data exchange in integrated automation systems.

Technical Specifications:

Manufacturer: GE Fanuc (Emerson Automation)
Series: Series 90-70 PLC System
Module Type: I/O Link Interface Module, single-slot
Protocol: GE Genius Bus (proprietary)
Ports: Dual 20-pin D-connectors (RS-422/RS-485 differential)
Baud Rates: 156 kbps, 625 kbps, 2.5 Mbps (software-configurable)
I/O Capacity: Master: 1024 discrete I/O; Slave: 64 discrete I/O
Nodes: Up to 16 slave devices
Distance: 10m (standard cable); 100m (fiber optic adapter)
Backplane Power: 1.3A @ 5VDC
LED Indicators: 3 LEDs (Module OK, Port Status, Communication Activity)
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Weight: Approx. 0.9 kg
Certifications: CE, UL, CSA, RoHS

Key Features:

Dual Master/Slave Modes: Configurable as a master (managing slaves) or slave (connecting to another master).
High-Speed Data Exchange: Up to 2.5 Mbps for real-time I/O synchronization in motion control.
Multi-Device Compatibility: Integrates seamlessly with IC693 PLCs and various CNC systems.
Flexible Networking: Supports point-to-point and multi-drop topologies; fiber extends range to 100m.
Software Configuration: All parameters set via Windows software, no hardware switches.
Real-Time Fault Diagnosis: LEDs quickly isolate communication failures and offline slaves.
Noise Immunity: Differential signaling and isolation resist EMI from drives and motors.

Applications:

CNC Integration: Connecting 90-70 PLCs to CNC machine tools for synchronized I/O and logic.
Distributed I/O Systems: Managing remote I/O racks in large production lines to reduce wiring costs.
Smart Manufacturing: Communication between PLCs, robots, and vision systems in flexible cells.
Legacy System Upgrades: Enabling older CNC/PLC equipment to connect to new control systems.
