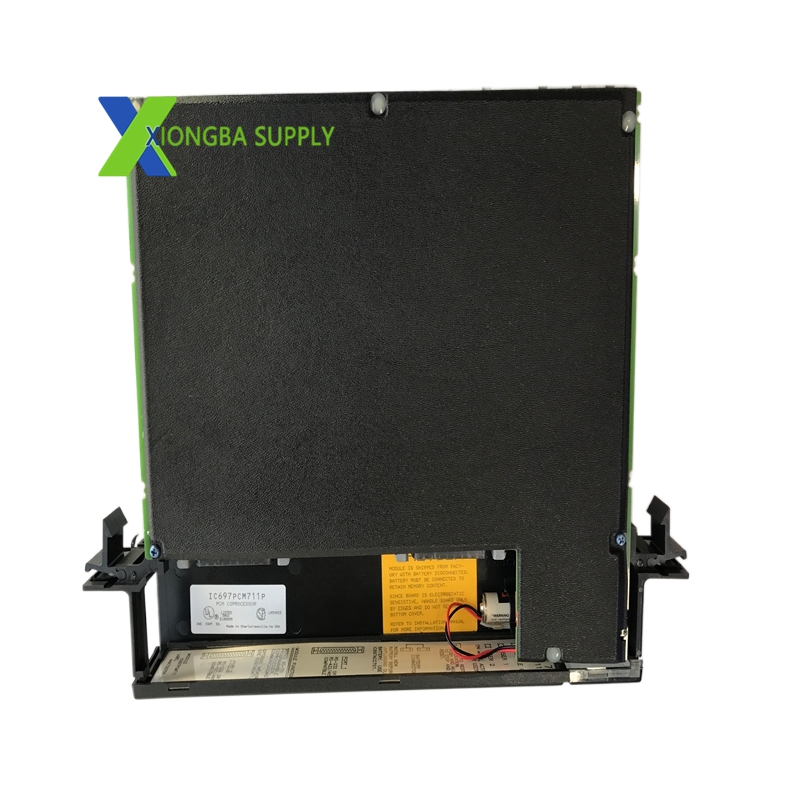

GE IC697PCM711P – Programmable Coprocessor Module (PCM)

In stock

Product Overview

The IC697PCM711P is a high-performance, single-slot programmable coprocessor module designed by GE Fanuc (Emerson) for the Series 90-70 PLC platform. It enhances PLC system capabilities by offloading complex processing, real-time computation, data management, and communication tasks, independent of the main PLC CPU. Multiple PCMs can operate in a single IC697 PLC system, making it ideal for advanced industrial automation requiring parallel task execution and expanded memory.

Technical Specifications

Manufacturer: GE Fanuc (Emerson)
Series: 90-70
Processor: 12 MHz 80C186 microprocessor (90% performance of IBM AT)
Base Memory: 96 KB battery-backed CMOS logic/data memory (user memory: 95 KB)

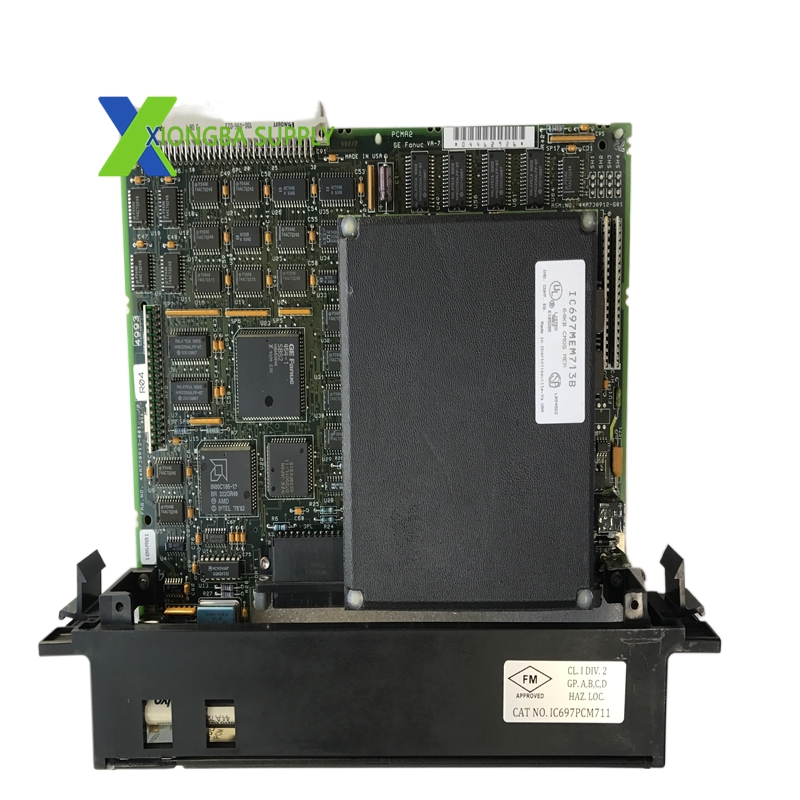

Expansion Memory: Optional daughterboard; supports 64 KB, 128 KB, 256 KB, or 512 KB expansion
Serial Ports: 2 × RS-232/RS-422/RS-485 compatible interfaces
Power Consumption: 1.0 A @ 5 V DC (from PLC backplane)
Battery: Lithium battery (baseboard-mounted); 10-year shelf life at 20°C; retains memory for 6 months without power
Programming: Compatible with IC647, IC640, or IBM-compatible PCs
Dimensions: 125 mm × 75 mm × 35 mm (12.5 × 7.5 × 3.5 cm)
Weight: 0.5 kg (1.13 lbs)
Operating Temperature: -20°C to +55°C
Certifications: UL508, CE, RoHS

Key Features

Dual-Tasking Capability: Executes two independent tasks simultaneously, supporting real-time control and background data processing.
Backplane Communication: Interacts with PLC CPU via the backplane; no additional CPU application support required.
Expandable Memory: Base 96 KB memory upgradable to 512 KB for large programs or data logging.
Multi-Protocol Connectivity: Two serial ports support RS-232/422/485 for Modbus RTU and custom protocols, enabling integration with HMIs, sensors, and third-party devices.
Battery-Backed Memory: Preserves logic/data without power, ensuring data integrity during outages.
Modular & Compact: Single-slot design for easy installation in Series 90-70 PLC racks; hot-swappable in supported configurations.
Robust Reliability: Conformal-coated PCB, wide temperature tolerance, and industrial-grade components for harsh environments.

Application Scenarios

Real-Time Process Control: Chemical, oil/gas, and power generation for high-speed calculations (PID loops, motion control).
Data Acquisition & Logging: Manufacturing lines, building automation, and SCADA systems for collecting/storing sensor/production data.
Operator Interface (HMI): Connects to HMIs/MMIs for localized control, reducing main CPU load.
Industrial Communication Gateways: Bridges legacy RS-232/422/485 devices to modern PLC networks.
Complex Motion Control: Packaging, robotics, and CNC machinery for coordinated multi-axis motion.
Batch Processing: Pharmaceutical and food/beverage for recipe management, batch tracking, and quality control.
