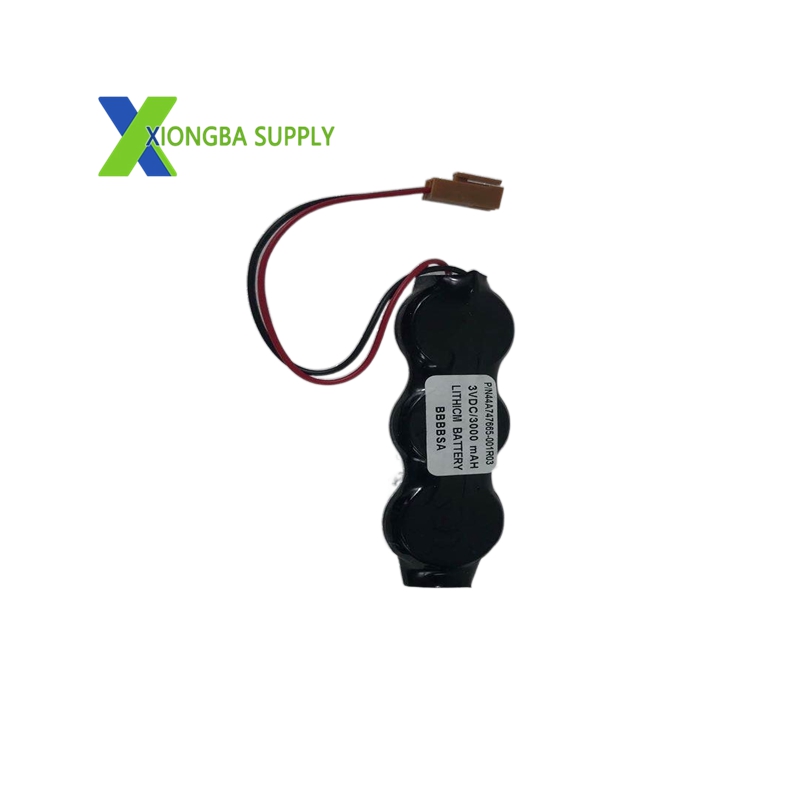

GE IC698ACC701 Auxiliary Smart Battery Module

In stock

Product Overview

The IC698ACC701 is a high-performance, intelligent lithium battery module originally designed by GE Fanuc (now part of Emerson Automation Solutions) for the PACSystems RX7i and RX3i series of programmable automation controllers (PACs). It serves as a critical backup power source, ensuring the integrity of volatile RAM data and real-time clock (RTC) settings during main power outages. Unlike standard battery modules, it integrates a smart monitoring system to prevent unexpected data loss.

Technical Specifications

Manufacturer: GE Fanuc (Emerson Automation Solutions)
Compatible Series: PACSystems RX7i, RX3i CPUs
Battery Type: Lithium Carbon Monofluoride (Li‑CFx) coin cell, non‑rechargeable
Nominal Voltage: 3.0 VDC (operating >2.5 VDC)
Nominal Capacity: 3000 mAh (3.0 Ah)
Max Current Rating: 15.0 Amps
Lithium Content: 5.1 g total (3 cells, 1.7 g/cell)
Operating Temperature: 0 °C to 60 °C
Storage Temperature: -40 °C to +85 °C
Shelf Life: 7 years @ 20 °C
Backup Duration:
- 200 days max (for IC695CPU310/CMU310)
- 23 days max (for IC695CPU320/CRU320)
Dimensions (H × W × D): 74.17 mm × 22.35 mm × 7.62 mm (2.92″ × 0.88″ × 0.30″)
Weight: Approx. 53.86 g (1.9 oz)
Casing Material: Flame‑retardant ABS plastic
Connectors:
- Embedded 4‑pin female JAE connector
- 0.6 m twisted red/black power cable
- 50 mm enabling adapter cable (4‑pin male to 2‑pin female)

Key Features

Intelligent Battery Monitoring
- Built‑in circuit detects low voltage (<2.5 VDC) and triggers alerts.
- Provides 15‑day replacement window before data loss occurs.
Extended Data Protection
- Maintains RAM data and RTC operation through power failures.
- Supports hot‑swappable replacement to minimize downtime.
Robust Industrial Design
- Flame‑retardant ABS casing withstands harsh environments.
- Wide operating temperature range (0 °C to 60 °C).
Broad Compatibility
- Works with both RX7i and RX3i PACSystem CPUs.
- Direct replacement for standard backup batteries (e.g., IC693ACC302).

Application Scenarios

Industrial Automation: Production lines, assembly systems, and robotic cells needing uninterrupted control logic.
Process Control: Chemical, oil & gas, and power generation plants where data integrity is critical.
Infrastructure: Building automation, traffic control, and remote monitoring systems requiring time‑stamped data.
Data Acquisition: Sensor networks and SCADA systems dependent on accurate time synchronization.
