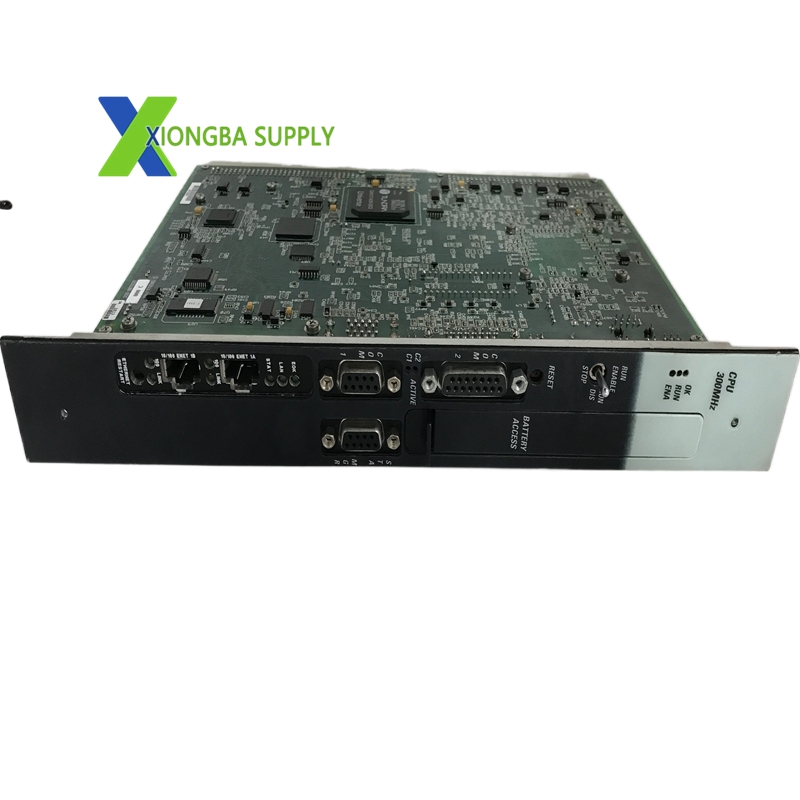

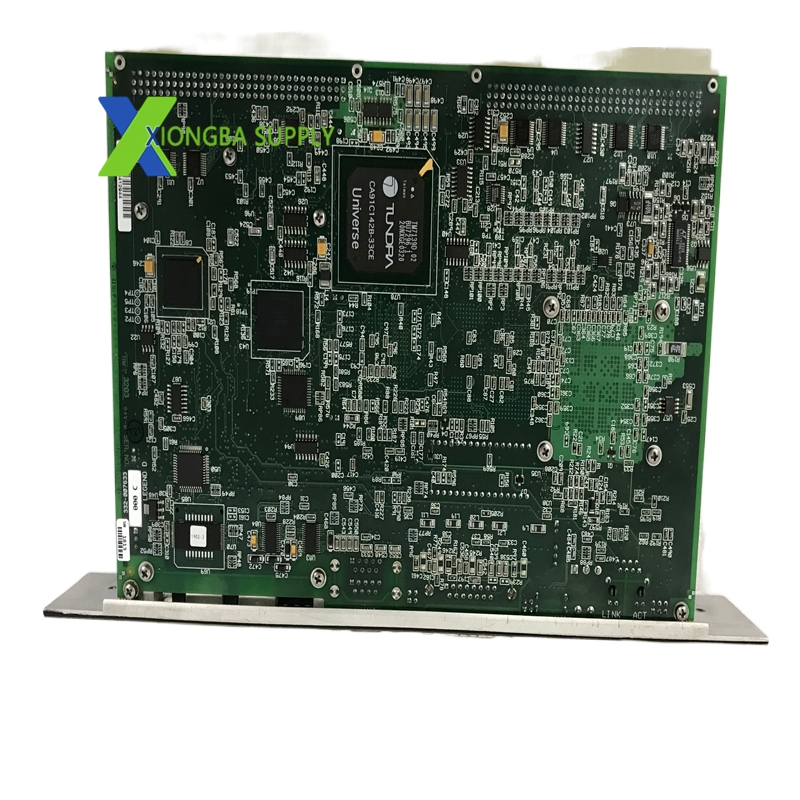

GE IC698CPE010-AA – High-Performance Central Processing Unit (CPU) Module

In stock

Product Overview

The IC698CPE010-AA is a high-performance CPU module from the PACSystems RX7i series, originally developed by GE Fanuc (now part of Emerson Automation). As the core of industrial control systems, it executes user programs, manages I/O modules, and enables real-time automation control. The “AA” suffix denotes an enhanced variant with superior performance and expanded functionalities compared to the standard IC698CPE010.

Technical Specifications

Processor: 300 MHz Intel Celeron microprocessor with integrated floating-point unit.
Memory:
- 10 MB battery-backed RAM (retains data for 40 days without power).
- 10 MB non-volatile flash memory (for program and data storage).
I/O Capacity:
- Discrete I/O: 32 Kbits (%I/%Q).
- Analog I/O: 32 Kwords (%AI/%AQ).
Communication Ports:
- 2 × Ethernet (RJ45): 10/100 Mbps, supports Modbus TCP, EGD, SRTP.
- 2 × Isolated Serial (RS-232/RS-485): Modbus RTU, SNP, Serial I/O.
- 1 × RS-232 Station Manager Port.
Program Execution Speed: 0.33 ms per 1000 Boolean contacts/coils.
Power Requirements: 24 VDC, 3.2 A; 5 V bus voltage.
Operating Temperature: -40°C to +85°C (-40°F to +185°F).
Dimensions: 4.4 × 29.2 × 19.1 cm.
Weight: 0.6 kg.

Key Features

High-Performance Processing: Delivers fast logic execution and floating-point arithmetic for complex control algorithms.
Robust Communication: Dual Ethernet ports with MRP redundancy; multi-protocol serial interfaces for seamless device integration.
Extensive Programming Support: Compliant with IEC 61131-3; supports Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and C programming.
Web & FTP Server: Built-in server supports up to 16 concurrent connections for remote monitoring, diagnostics, and file transfers.
Memory Reliability: Battery-backed RAM and non-volatile flash ensure data integrity during power interruptions.
Security & Protection: Password-protected configuration; hardware/software write protection for critical programs.
Modular & Scalable: Rack-mountable via VME64 backplane; compatible with RX7i I/O modules for system expansion.

Application Scenarios

Manufacturing: Assembly lines, robotic control, CNC machine tools, and material handling systems.
Energy: Power generation (gas/steam turbines), electrical distribution, and renewable energy plants.
Process Industries: Chemical, pharmaceutical, oil/gas, and water treatment (closed-loop control, safety interlocks).
Infrastructure: Building automation, transportation systems (traffic control, rail), and smart city utilities.
Critical Infrastructure: Data center power management, industrial IoT gateways, and high-availability control systems.
