Technical Specifications
- Manufacturer: Emerson Automation (GE Fanuc/GE Intelligent Platforms)
- Series: PACSystems RX7i

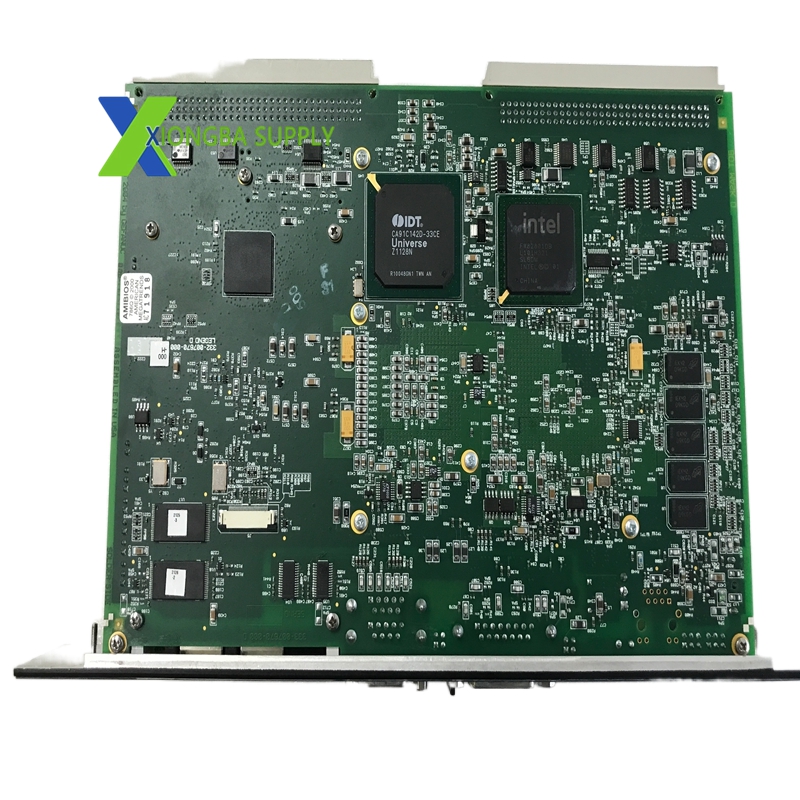

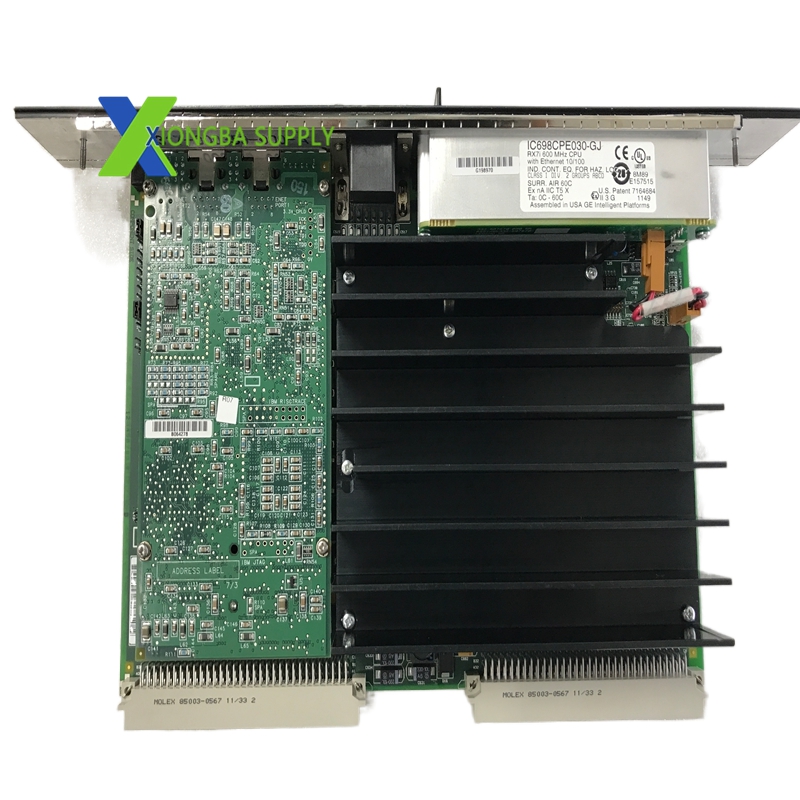

- Model: IC698CPE030-GK
- Processor: 600 MHz Pentium‑M microprocessor
- User Memory (RAM): 64 MB (battery‑backed, non‑volatile)
- Flash Memory: 64 MB (non‑volatile, expandable to 1 GB)
- Discrete I/O Capacity: Up to 32,768 bits (32 Kbits)
- Analog I/O Capacity: Up to 32,768 words (32 Kwords)
- Communication Interfaces:
- 2 × Embedded Ethernet ports (10/100 Mbps)
- 1 × RS‑232 serial port
- 1 × RS‑485 serial port
- 1 × RS‑232 Ethernet Station Manager port
- Supported Communication Protocols:
- Ethernet: SRTP, Modbus TCP (Server/Client), Ethernet Global Data (EGD)
- Serial: Modbus RTU Slave, SNP Slave, Serial I/O
- Power Supply: 24 VDC (±10%)
- Power Consumption: 12 W
- Operating Temperature: -20°C to 60°C (‑4°F to 140°F); extended range: -40°C to 70°C (‑40°F to 158°F)
- Dimensions: 125 mm × 100 mm × 45 mm (4.9 in × 3.9 in × 1.8 in)
- Weight: Approximately 1.2 kg (2.6 lbs)
- Installation: RX7i rack‑mounted (VME64 standard backplane)
- Real‑Time Clock Accuracy: ±2 seconds per day maximum
Functional Features
- High Processing Performance
- Equipped with a 600 MHz Pentium‑M processor, delivering fast execution for complex control logic, floating‑point calculations, and real‑time data processing.
- Boolean execution speed: 0.069 ms per 1000 Boolean contacts/coils.
- Flexible Memory Configuration
- 64 MB battery‑backed RAM ensures data retention during power outages.
- 64 MB non‑volatile flash memory for program storage, with expandability up to 1 GB for large‑scale applications.
- Supports bulk memory access for efficient data transfer and configurable data/program memory partitioning.
- Multi‑Protocol Communication
- Dual Ethernet ports enable redundant network communication, supporting peer‑to‑peer, client‑server, and global data exchange via EGD.
- Isolated RS‑232/RS‑485 serial ports facilitate connectivity with legacy devices, HMIs, and third‑party equipment.
- Integrated web server and FTP server support up to 16 concurrent connections for remote monitoring, configuration, and file transfers.
- Extensive I/O Compatibility
- Backward‑compatible with GE Series 90‑70 discrete/analog I/O modules, communication modules, and VME‑based expansion modules.
- Supports hot‑swappable I/O modules for system maintenance without downtime.
- Advanced Programming & Diagnostics
- Supports multiple IEC 61131‑3 programming languages: Ladder Diagram, Structured Text, Function Block Diagram, and C programming for custom algorithms.
- Auto‑located symbolic variables simplify program development and debugging.
- Built‑in diagnostic tools monitor system health, I/O status, and communication links, with fault logging for troubleshooting.
- Rugged Industrial Design
- Wide operating temperature range withstands harsh industrial environments.
- VME64 standard rack mounting ensures mechanical stability and easy integration into RX7i systems.
Application Scenarios
- Manufacturing & Assembly Lines: Controls high‑speed production lines, robotic workcells, and automated material handling systems in automotive, electronics, and consumer goods industries.
- Process Industries: Used in oil and gas, chemical, pharmaceutical, and food/beverage plants for real‑time process control, batch processing, and regulatory compliance monitoring.
- Power Generation & Utilities: Manages turbine control, generator synchronization, combustion systems, and auxiliary equipment in thermal, hydroelectric, and renewable power plants.
- Water & Wastewater Treatment: Controls pumping stations, filtration systems, chemical dosing, and sludge processing in municipal and industrial water treatment facilities.
- Infrastructure & Building Automation: Implements HVAC control, lighting management, security systems, and energy monitoring in large commercial buildings, airports, and data centers.
- Transportation: Controls railway signaling, port cargo handling equipment, and traffic management systems for reliable and efficient operation.
