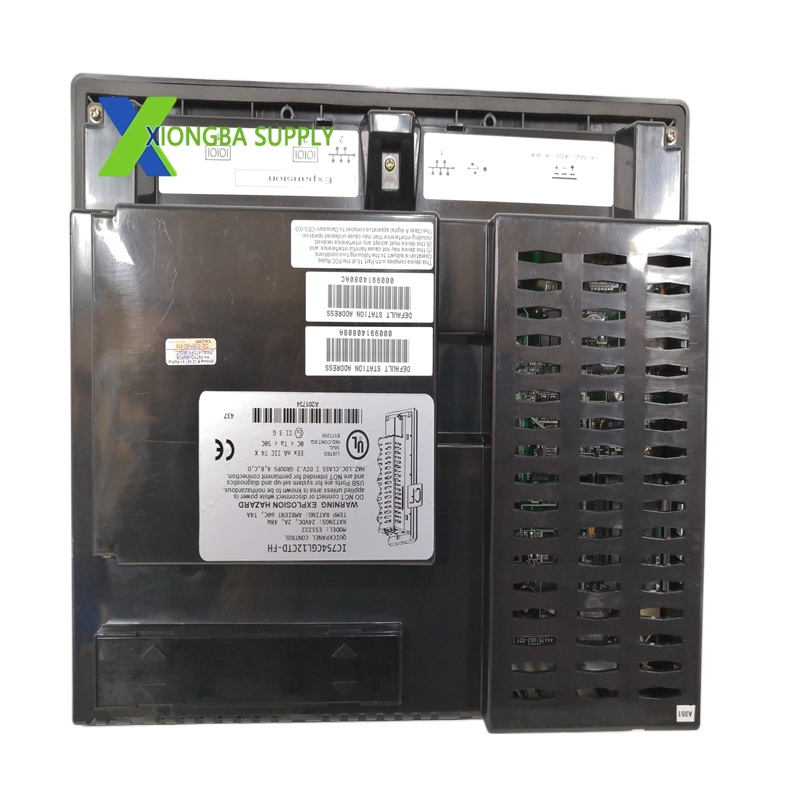

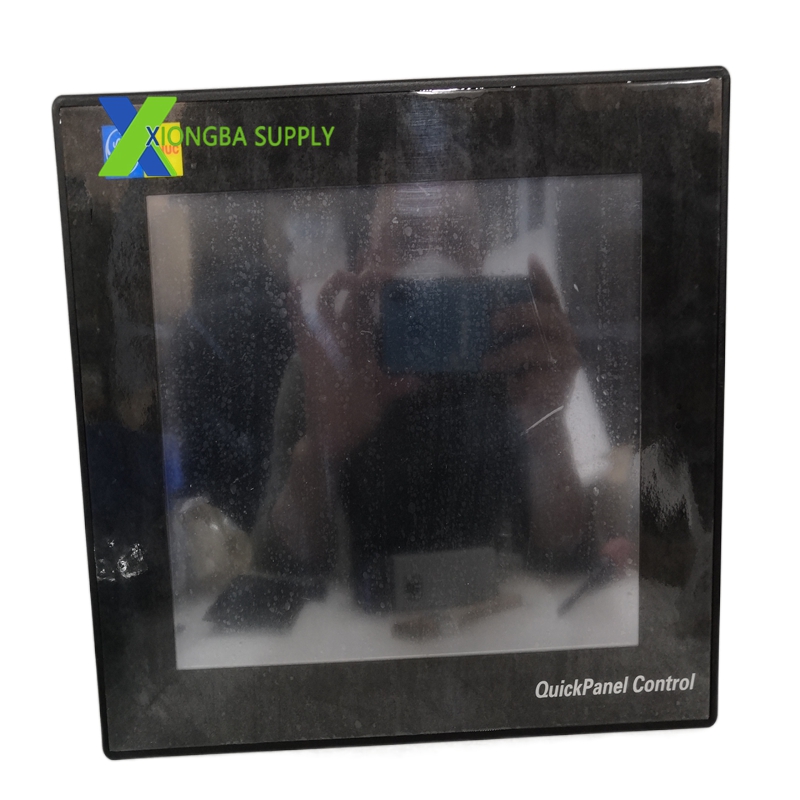

Technical Specifications
- Display System
- Size: 12-inch diagonal TFT LCD.
- Resolution: 800 × 600 pixels (SVGA).
- Color Depth: 15-bit (32,768 colors).
- Touchscreen: Analog resistive type, 12-bit resolution.
- Brightness: ≥300 cd/m²; backlight lifespan: 50,000 hours.
- Viewing Angle: ≥140° (horizontal/vertical).
- Processor & Memory
- CPU: Intel XScale PXA255 @ 400 MHz.
- DRAM: 32 MB (expandable to 64 MB via 100-pin DIMM slot).
- Flash Memory: 64 MB (non-volatile, for OS and applications).
- SRAM: 512 KB (battery-backed for data retention during power loss).
- ROM: 512 KB (bootloader firmware).
- Communication Interfaces
- Ethernet: 2 × 10/100 Base-T (RJ45), supporting Modbus TCP/IP, EtherNet/IP.
- Serial Ports: COM1 (RS-232/485, DB25S); COM2 (RS-232, DB9P), baud rate 300–115,200 bps.
- USB: 2 × USB 1.1 (host ports for keyboard, mouse, storage).
- Expansion: 1 × CompactFlash (CF) Type 2 slot; 1 × fieldbus expansion slot.
- Power Supply
- Input: 24 VDC (18–30 VDC wide-range).
- Power Consumption: 48 W (max).
- Protection: Reverse-polarity protection, over-voltage/over-current protection.
- Physical & Environmental
- Dimensions (W×H×D): 301.1 mm × 262.6 mm × 88.9 mm.
- Panel Cutout: 183.5 mm × 128.5 mm.
- Weight: 1.16 kg (2.5 lbs).
- Operating Temperature: 0°C to +50°C (32°F to 122°F).
- Storage Temperature: -20°C to +70°C (-4°F to 158°F).
- Humidity: 10%–90% RH (non-condensing).
- Vibration/Shock: IEC 68-2-6 (10–57 Hz: 0.012″ displacement; 57–500 Hz: 1.0 g); IEC 68-2-27 (15 g, 11 ms sine wave).
- Protection Rating: NEMA 4/4X/12 (front panel, equivalent to IP56).
- Certifications: UL 508, cUL, CE, ATEX Class 1 Zone 2, UL Class 1 Div 2 (Groups A/B/C/D).
Key Features
- Industrial-Grade Durability: Fanless cooling design, wide operating temperature range, and robust construction withstand dust, oil, vibration, and electrical interference in factory environments.
- High-Performance Processing: 400 MHz XScale CPU and ample memory ensure fast response for real-time data processing, graphics rendering, and multi-tasking operations.
- Versatile Connectivity: Dual Ethernet ports for network redundancy and multi-device communication; serial ports connect to PLCs, inverters, and meters; USB/CF slots enable data storage and system expansion.
- Windows CE.NET OS: Familiar, user-friendly embedded OS supports CIMPLICITY Machine Edition software for easy application development, and enables web browsing, file transfer, and multi-language support.
- Data Integrity & Security: Battery-backed SRAM prevents data loss during power outages; role-based access control and system security features protect critical operational data.
- Easy Installation & Maintenance: Compact size supports panel mounting (VESA 75×75 mm optional); tool-free installation with mounting clips; hot-swappable CF card for quick data backup and restoration.
Application Scenarios
- Manufacturing & Process Control: Assembly lines, packaging machinery, textile equipment, and CNC machine tools for real-time monitoring, parameter setup, and fault diagnosis.
- Energy & Power: Power generation plants, substation automation, and renewable energy systems for SCADA monitoring, equipment control, and data logging.
- Water & Wastewater Treatment: Pump stations, filtration systems, and chemical dosing processes for flow/pressure monitoring, valve control, and alarm management.
- Oil & Gas: Onshore/offshore drilling rigs, pipeline monitoring, and refinery processes for hazardous area operation, process visualization, and safety interlock control.
- Building Automation: HVAC systems, elevator control, and facility management for environmental monitoring, equipment scheduling, and energy efficiency optimization.
